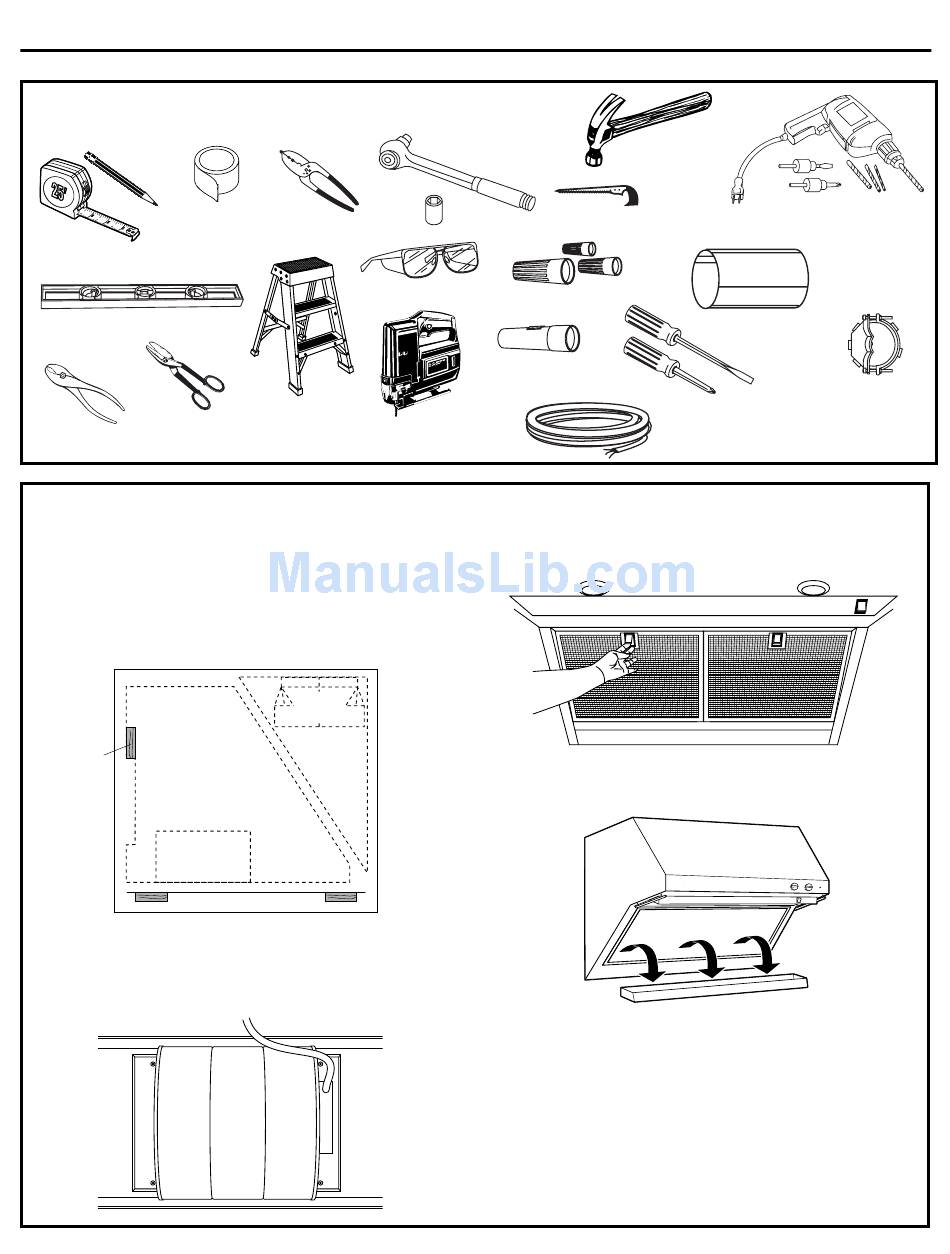

TOOLS AND MATERIALS REQUIRED

(NOT SUPPLIED)
Duct tape
Pencil and tape measure
Spirit level
Pliers
Metal Snips

REMOVE THE PACKAGING

• Remove packages from the "V" shaped cardboard
section. Remove shipping pads.
• Lift the hood out of the box.
IMPORTANT:
the outside edges of the exhaust opening on the top.
Wood
Mounting
Hood
Support
Motor
Mounted
on Skid
Shipping Carton
• The vent hood motor is shipped secured to the skid with
4 screws. Locate and remove 2 screws on each side of the
motor. Discard the shipping skid and screws.
Installation Preparation
Wire cutter/stripper
Safety glasses
Step ladder
Saber saw
or Sawsall
Lift the hood by grasping
Duct
Transition
Parts
1/4" pivoting
hex socket
Key Hole Saw
Wire nuts
Flashlight
• Grease filters must be removed. Grasp the latch, pull
the filter up and lift out.
• Lift to remove the grease trays. Set grease filters and
trays aside for later installation. DO NOT DISCARD.
• From the inside of the hood, loosen (do not remove)
the 2 screws holding the wood mounting support to
the back of the hood. The screws should be backed
out of the wood to 1/4". Remove and set aside the
mounting support with screws for later installation.
DO NOT DISCARD.
• Remove tape and packing material from the hood and
all supplied parts.
8
Hammer
Electric or battery operated drill
and 1/8", 3/8" bits
Phillips and flat
blade
screwdrdivers
120V 60Hz. 15 or 20 Amp,
2-wire with ground. Properly
grounded branch circuit.
10" round metal
duct, length to
suit installation.
Strain relief for
junction cover.
