CONTENTS
Product Dimensions ......................................................... 3
Installation Clearances ..................................................... 4
Optional Duct Cover Accessories .................................... 4
Installation Height, Duct Cover Accessories ................... 5
Advance Planning ............................................................. 6
Power Supply .................................................................... 6
Duct Fittings ...................................................................... 7
Tools and Materials Required .......................................... 8
Remove the Packaging ..................................................... 8
Parts Provided ................................................................... 9

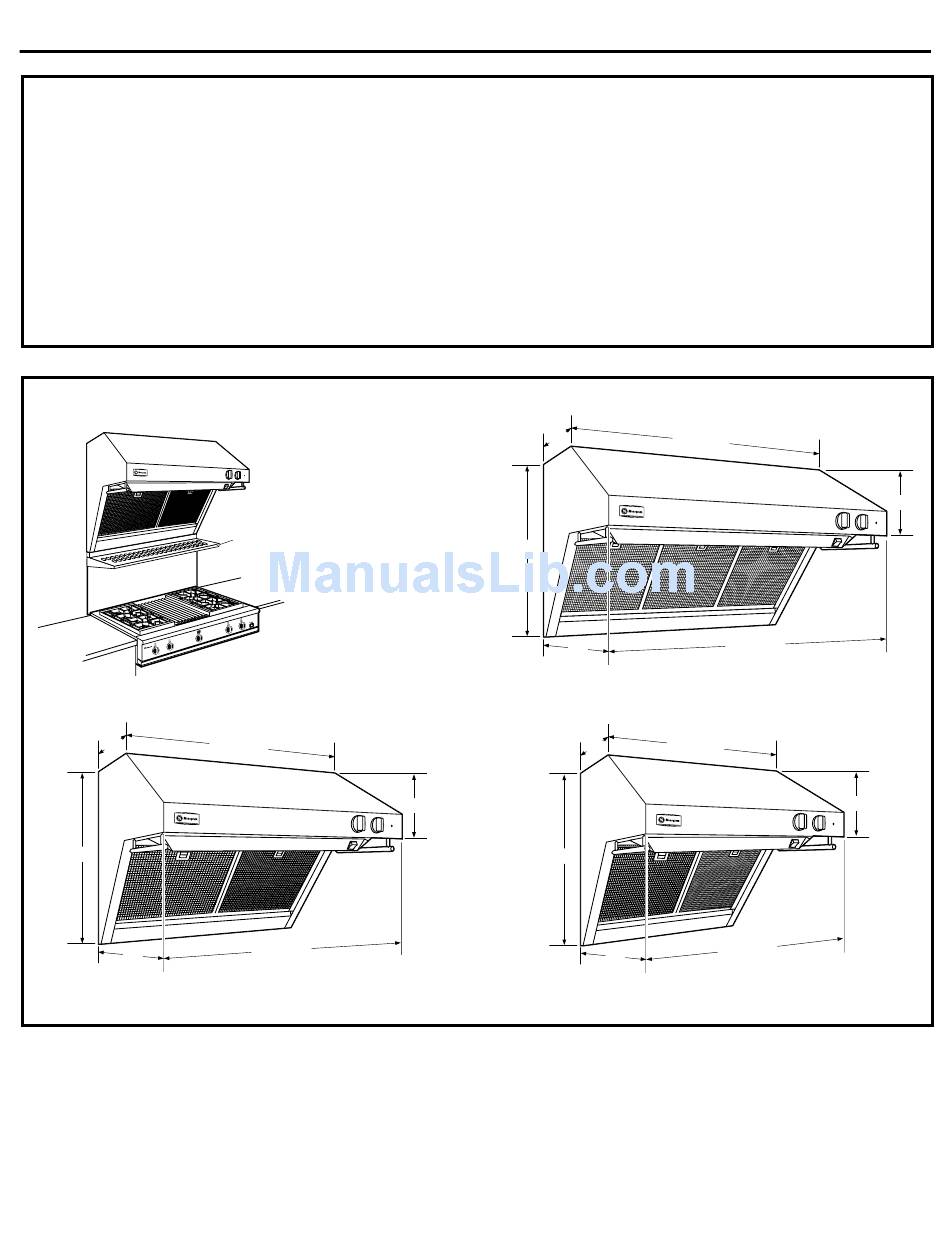

PRODUCT DIMENSIONS
a r d
B a c k g u
12"
35-15/16"
22-1/2"
25"
Model ZV36R
Each hood is
shipped with a
stainless steel
backguard and a
Warming
Shelf
warming shelf.
Hoods may be
installed with the
shelf or backguard
alone, or with both
as shown.
35-15/16"
Step 2A, Install Hood Onto Wall ................................... 11
Step 2B, Install Hood Beneath Soffit ............................ 12
Step 3, Connect Ductwork ............................................. 13
Step 4, Connect Electrical .............................................. 13
Step 5, Install Duct Covers ............................................. 13
Step 6, Install Motor ....................................................... 13
Step 7, Install Filters ....................................................... 14
Step 8, Install Backguard and Shelf ............................... 14
Step 9, Install Shelf Only ................................................ 15
Step 10, Install Implement Rods ................................... 15
12"
22-1/2"
25"
Model ZV48R
12"
10"
22-1/2"
Model ZV30R
3
47-15/16"
47-15/16"
29-15/16"
29-15/16"
25"
10"
10"
