INSTALLATION POSSIBILITIES

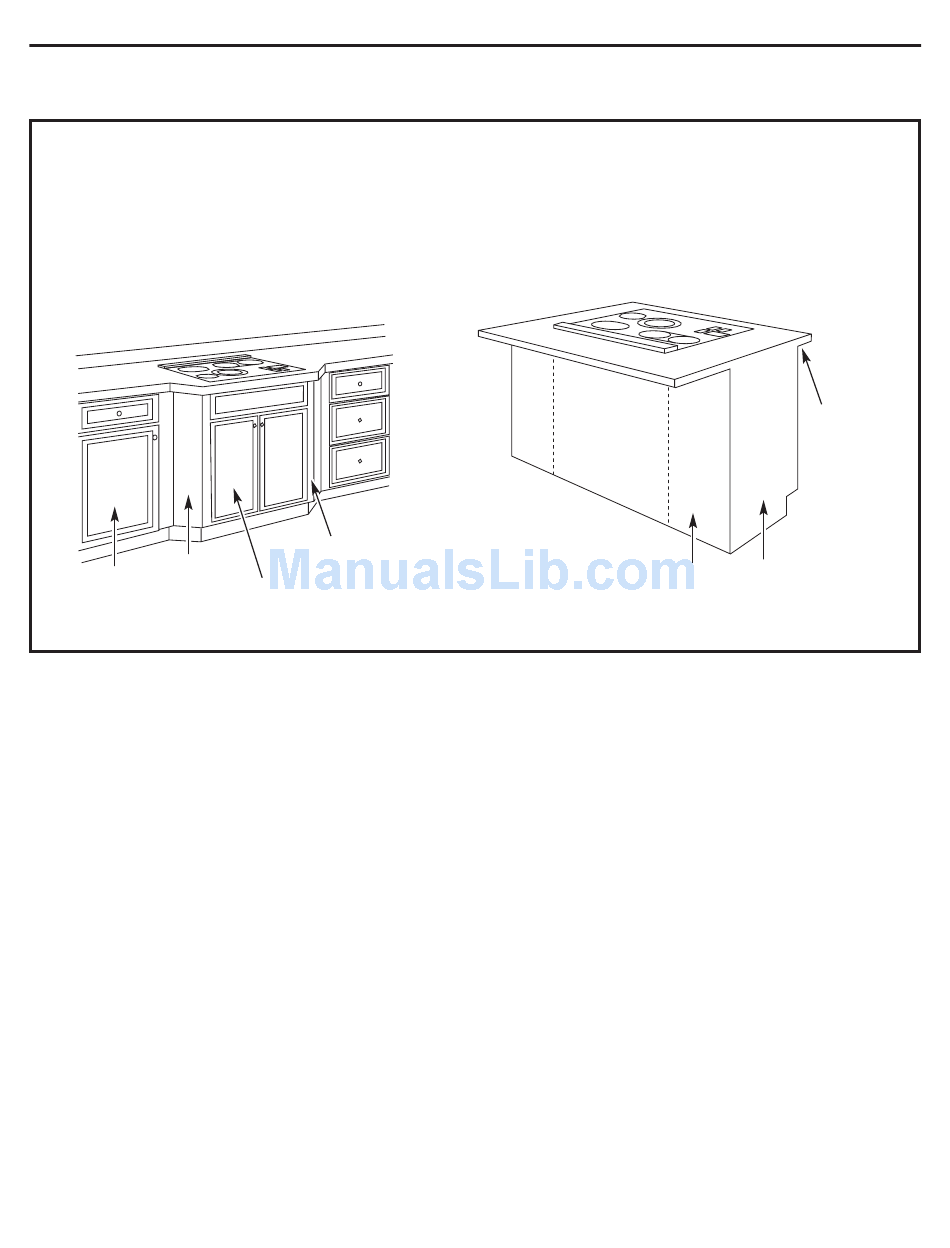

When the kitchen design calls for an against
the wall installation, move 24" deep base
cabinet forward, 3" to 5" . Filler panels can
be angled or flat to fill the space between
adjacent cabinets.
Maintain cutout clearances to front edge as specified.
Filler
Base
panel
Base sink
cabinet
30" Min. for JVB37 and JVB94
36" Min. for JVB67 and JVB98
Installation Instructions
Filler
panel
In an island or peninsula, the countertop can
be extra deep to provide seating opposite of
the cooktop. Adding base cabinets on each
side of the cooktop provides extra storage
and countertop work space.
18"
Base to sink
30" to 42"
9
Countertop
overhang
per cooktop
clearances
18"
must be
maintained
End
Cover
panel
panel
