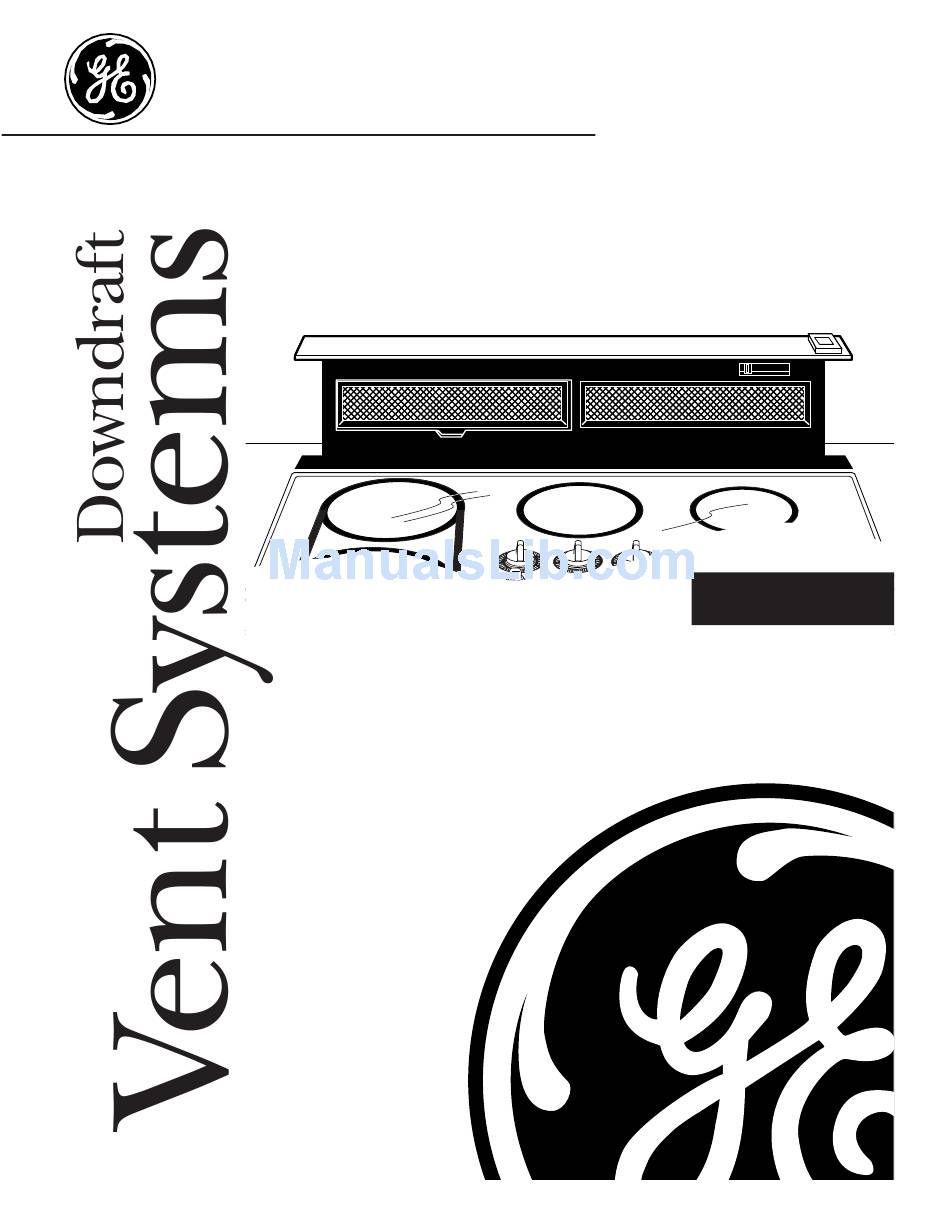

- Page 1 GE Appliances Owner’s Manual & Installation Instructions JVB37 JVB67 Part No. 164D3333P161 Pub. No. 49-8931 D-959-0278-000 11-98 CG...
-
Page 2: Table Of Contents
You Are Now Part of the GE Family. Safety Precautions ..3, 4 Welcome to the GE family. We’re proud of our quality products and we are committed to providing dependable service. You’ll see it in this easy-to-use Owner’s Manual and you’ll hear it in the friendly voices of our customer service department. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. WARNING—TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:... -
Page 4: Read And Save These Instructions
Reverse the steps in the Install the such as the blower motor or air vent Downdraft section to remove the blower. mechanism. Service parts are available from a GE Service and Parts Center. Read and follow this Safety Information carefully. READ AND SAVE THESE INSTRUCTIONS... -
Page 5: Using The Downdraft System
Using the downdraft system. RAISE/LOWER Switch (30” models only) Turn the downdraft blower ON by pressing Remote RAISE/LOWER switch the RAISE/LOWER switch located at the top (36″ models only) right of the vent (on some models). Place 36″ models have a remote RAISE/LOWER your finger on the “center”... -
Page 6: Care And Cleaning
Using the downdraft system. Cooking Tips The high air movement of this downdraft Canning system can increase the cooking times for When canning foods in a water-bath canner, some foods. It may take longer to reach a gentle but steady boil must be maintained high cooking temperatures if the downdraft continuously for the required time. -
Page 7: Before You Begin
Installation of the downdraft system. Read these instructions completely and carefully. WARNING—TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: A. Installation work and electrical wiring must be B. Ducted fans must always be vented to the done by qualified persons(s) in accordance with outdoors. -
Page 8: Advance Planning
End panel Filler panel BS30 Min. for JVB37 Cover panel Base cabinet BS36 Min. for JVB67 Advance Planning—Clearances Installation must conform with local codes. If cabinetry is used above the cooking surface: The downdraft system with blower, motor and –Installation must conform with local codes. -
Page 9: Tools And Materials Required
Advance Planning—Ductwork The downdraft blower system is designed to use Prepare ductwork to vent to the outdoors. ″ x 10″ ductwork. It can be transitioned to 6″ ⁄ Use the shortest and straightest duct run possible. round. –The maximum permissible length for duct run is Ductwork MUST be vented to the outside–never 150 feet. -
Page 10: Measurements
Installation of the downdraft system. Read these instructions completely and carefully. 30″ Cooktops/Downdraft Unit JVB37 NOTE: Before you begin: Measure and mark Dimension 3 to ensure that adequate flat countertop surface is available. Identify the cutout illustration for the cooktop ″... - Page 11 36″ Cooktops/Downdraft Unit JVB67 NOTE: Before you begin: Measure and mark Dimension 3 to ensure that adequate flat countertop surface is available. Identify the cutout illustration for the cooktop ″ ⁄ model you are installing with this downdraft vent. –Draw lines on the countertop to follow as a cutting ″...
- Page 12 Installation of the downdraft system. Read these instructions completely and carefully. 30″ Induction Cooktops with Downdraft Unit JVB37 36″ Induction Cooktops with Downdraft Unit JVB67 ″ (Dimension 3) to ensure that adequate flat NOTE: Before you begin: Measure and mark 22 ⁄...
-
Page 13: Power Supply
90° Elbow 90° Elbow Roof Vent SHOULD NOT EXCEED 150 EQUIVALENT FT. *Equivalent lengths of duct pieces are based on actual tests conducted by GE Evaluation Engineering and reflect requirements for good venting performance. See chart for CFM Duct Length. -
Page 14: Venting
Installation of the downdraft system. Read these instructions completely and carefully. Venting Options Side to side adjustments: Loosen screws to adjust blower left to right The entire blower mounting plate can be adjusted ″ to the left or right. This will help to align vent ⁄... - Page 15 Install Downdraft Vent Optional method secure to cabinet side with top screw on case Or use second screw Preferred method Secure the upper brackets with screws located on the side of case and attach to back of cabinet Secure the lower brackets to blower housing Install two brackets on the bottom of the Place the downdraft vent into the countertop...
-
Page 16: Installation
Installation of the downdraft system. Read these instructions completely and carefully. Step 3 is for 36″ wide models only. Skip this step if installing a 30″ model. Install Raise/Lower Switch Determine the location for the RAISE/LOWER switch. The wiring lead is 72″ long. Drill a 1/8″... - Page 17 Connect Power Plug power cord into a properly grounded receptacle. Installing the Cooktop Align the cooktop with the downdraft and fasten cooktop in place. NOTES: Accurate alignment of cooktop and downdraft is necessary to ensure that there is no interference when air vent is raised and lowered.
-
Page 18: Troubleshooting Tips
Before You Call For Service… Troubleshooting Tips Save time and money! Review the tips below and you may not need to call for service. Problem Possible Causes What To Do • Press the RAISE/LOWER switch. Fan does not work The vent is not fully extended. •... -
Page 19: Warranty
Any part of the downdraft system which fails due to a defect in materials or workmanship. One Year During this full one-year warranty, GE will also provide, free of charge, all labor From the date of the and in-home service to replace the defective part. -
Page 20: Service Telephone Numbers
Expert GE repair service is only a phone call away. Special Needs Service 800.626.2000 800-TDD-GEAC (800-833-4322) GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons with limited mobility. Service Contracts 800-626-2224 Purchase a GE service contract while your warranty is still in effect and you’ll receive a substantial discount.
