INSTALLING THE DOWNDRAFT VENT SYSTEM

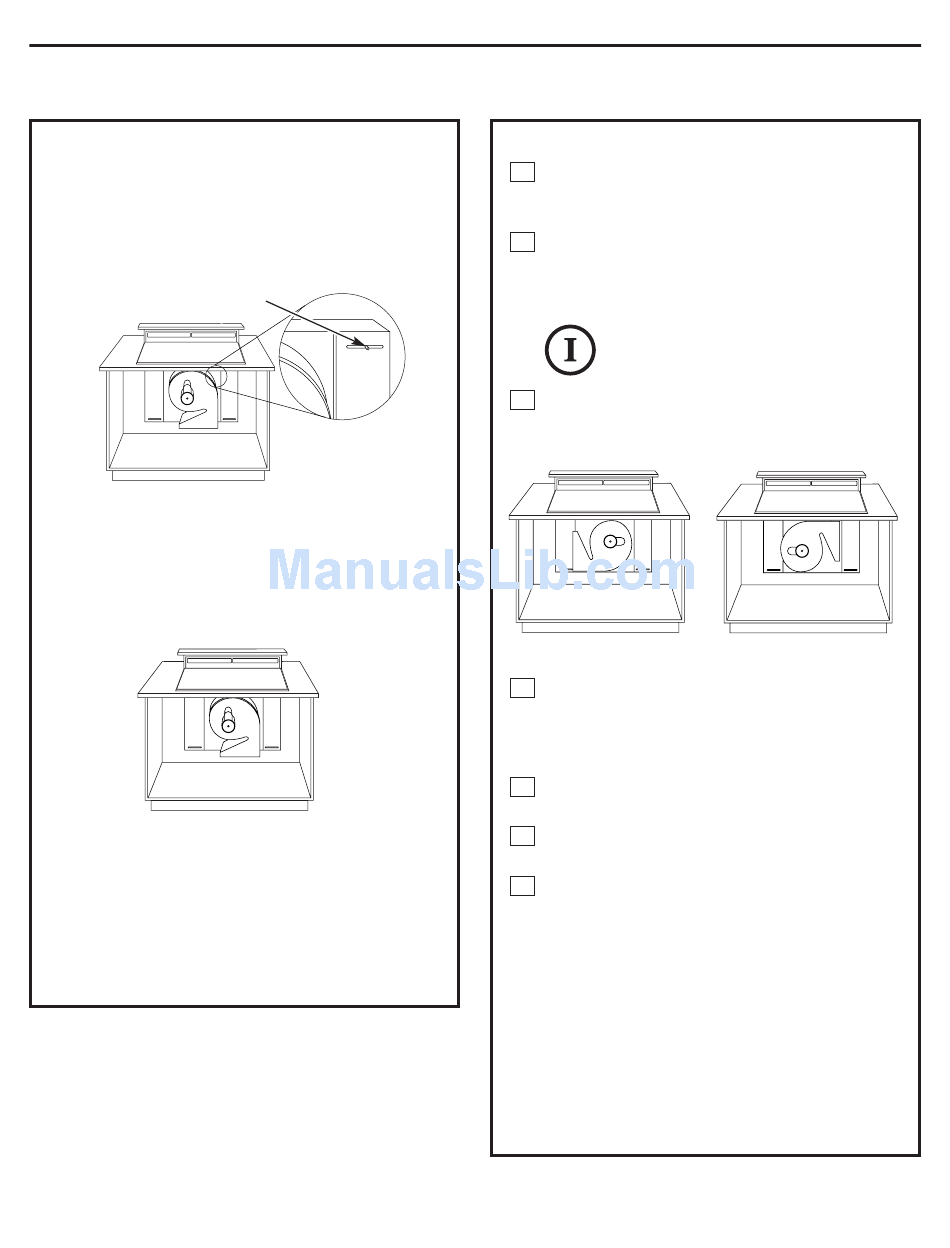

VENTING OPTIONS

Side-to-Side Adjustments
The entire blower mounting plate can be
" to the left or right. This will help
adjusted 3 1 ⁄
2
to align vent discharge to house ductwork.
Loosen screws to adjust
blower left to right
Discharge Direction
The blower assembly may be removed and
turned 90° for a left or right side discharge.
• The downdraft vent is shipped with the
discharge outlet pointing straight down
and can be changed to the left or right side.
Discharge down
(as supplied)
• A left or right 90° direction adjustment
should be performed before dropping into
the countertop opening.
• Flatten the shipping box to use as a pad.
• Lay the vent on its back onto the pad.
Installation Instructions
14
To Change to a Left or Right Discharge
1
Remove the 4 screws holding the blower
to the mounting plate assembly. Retain
screws.
2
Remove the blower assembly, turn it
over to access the 4 nuts holding the
blower to the mounting plate. Remove
the nuts.
IMPORTANT: Do not lift the motor
by the power cable.
3
Turn the blower to the left or right
discharge direction and reinstall the
4 nuts.
Discharge left
4
Reinstall the blower and mounting plate
with original screws.
To Locate the Ductwork Holes in the Cabinet
Floor or Side Walls
1
Temporarily, put vent into the countertop
opening.
2
Push the vent all the way to the back of
the opening.
3
If you are transitioning to 6" round,
place transition (obtained locally) over
the discharge outlet.
• Mark the location and remove the
assembly.
• Cut holes and install ductwork
connections.
Order JXRB67 for installation of the blower
and motor below the floor.
Order JXBC67 for installation of the blower
and motor outdoors.
Discharge right
