INSTALLING THE DOWNDRAFT VENT SYSTEM

30" COOKTOP/DOWNDRAFT
UNITS JVB37 AND JVB94
NOTE: Before you begin, measure and mark
depth to ensure that adequate flat countertop
surface is available.

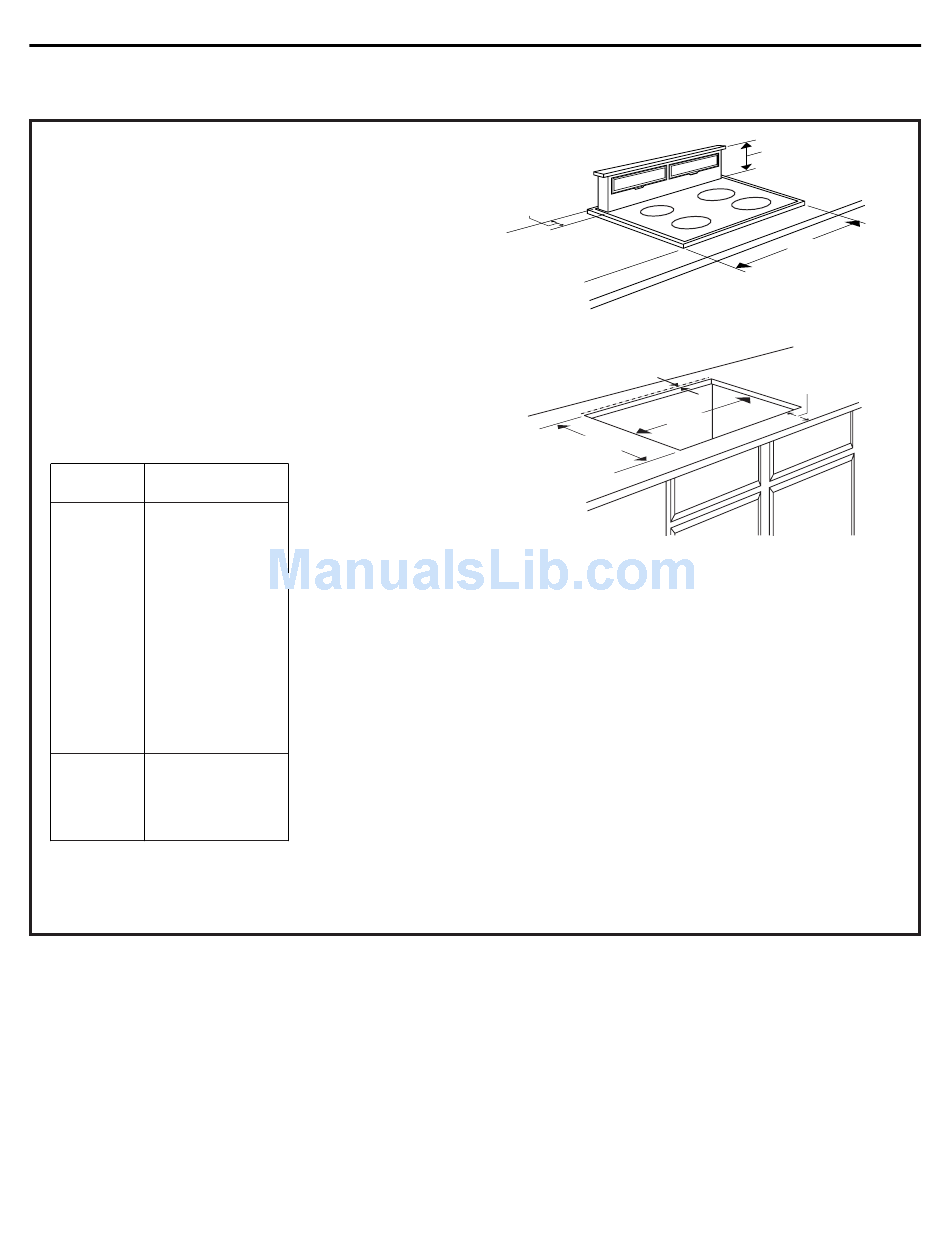

Identify the cutout illustration for the cooktop
model you are installing with this downdraft
vent system.
• Draw lines on the countertop to follow
as a cutting guide.
• Make sure sides of the opening are
parallel and rear and front cuts are exactly
perpendicular (right angle) to sides.
Model Combined
Number Cutout Depth
JP340
JP346
JP355
JP356
JP910
JP930
JP940
JP950 22-1/4"
PP912
PP932
PP942
PP945
PP950
JGP337
JGP940
JP328
JGP328
JGP330 22-3/8"
JGP933
JGP945
**Includes 1/8" gap between
cooktop and vent trim
**Required to maintain UL
or CSA approvals
Installation Instructions
10
"*
2 1 ⁄
8
3/8" Minimum flat
countertop behind
cutout required
28 1 ⁄
2
See table
"
8 1 ⁄
2
30"
" Minimum**
2 1 ⁄
2
"
