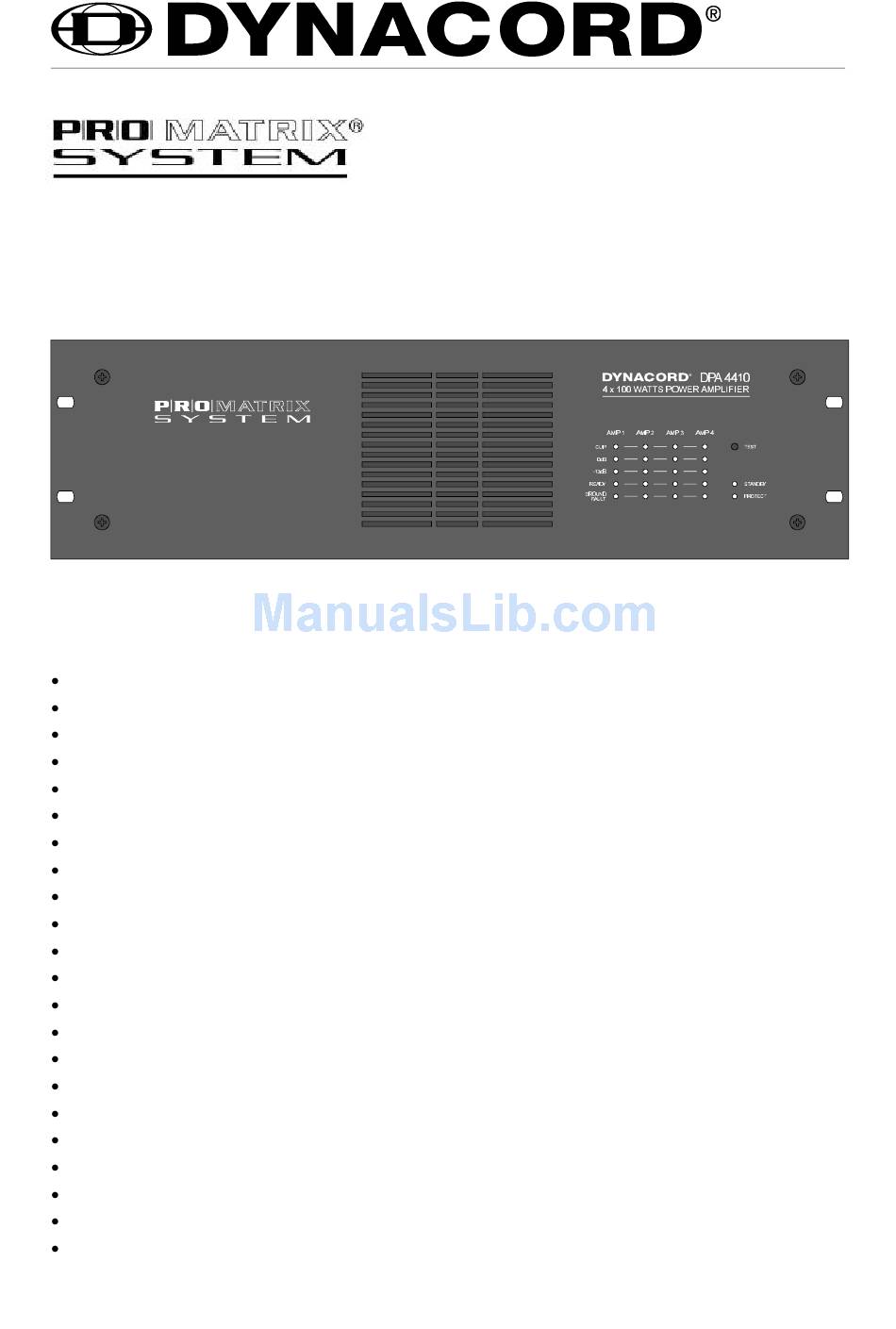

DPA 4410 POWER AMPLIFIER
Features
4 x 100 W output capacity
off ground potential 100 V outputs (internally configurable to 70 V/50 V or 4 ohms)
all outputs are protected against floating (no load) and short-circuit
mains supply 115/230 V AC or battery operation 24 V DC
mains switch 115/230 V
REMOTE CONTROL start with STANDBY indicator (mains and battery operation)
service mains switch
GROUND-LIFT switch
active ventilated through a temperature-controlled DC ventilator
electronically balanced inputs
routing switch for parallel operation of the amplifier inputs
input level control
power-on noise suppression
3 LED indicators with CLIPPING indicator for metering purposes
MONITOR outputs
temperature control with PROTECT indicator
fault indicators: READY and GROUND FAULT
fault message via off potential READY contact
TEST switch for pilot tone surveillance and GROUND FAULT reset
off ground potential, balanced input transformer are optionally available
pilot tone surveillance module and ground fault surveillance module are optionally available
19" rack dimensions with 3 HU
17
OWNER'S MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynacord DPA 4410
Summary of Contents for Dynacord DPA 4410
- Page 1 OWNER’S MANUAL DPA 4410 POWER AMPLIFIER Features 4 x 100 W output capacity off ground potential 100 V outputs (internally configurable to 70 V/50 V or 4 ohms) all outputs are protected against floating (no load) and short-circuit mains supply 115/230 V AC or battery operation 24 V DC...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintance (servicing) instructions in the... -
Page 3: Indicators, Controls And Connections
INDICATORS, CONTROLS AND CONNECTIONS LED meters CLIP indicator TEST button for checking and reset STANDBY indicator PROTECT indicator GROUND FAULT indicator READY indicator air inlets POWER on switch AC MAINS INPUT connector mains fuse VOLTAGE SELECTOR switch LEVEL 1- 4 input level controls INPUT 1- 4 XLR-type connectors INPUT 1- 4 routing switch REMOTE CONTROL connector... -
Page 4: Table Of Contents
12. SPECIFICATIONS OF THE DPA 4410 ........ -
Page 5: General Notes
The POWER switch (9) on the rear of the amplifier is meant only for service purposes. If this switch is engaged, the remote power-off function of the appliance is not operational and the STANDBY indicator provides no indication. The DPA 4410 is equipped with a cut-in delay of approximately 3 seconds to efficiently suppress power-on noise. -
Page 6: Inputs
5. OUTPUTS POWER OUTPUT All power outputs are balanced and off ground potential. The outputs are presetted by DYNACORD for the connection of 100 V speaker systems. The connection is achieved through plugging the 8-pole socket into the connection strip (17). Using the output transformer switch, the output voltage can be changed to 70 V, 50 V and 20 V (see also paragraph 8). -
Page 7: Power Output With 100 V Speaker Systems
4 ohms and that the individual power handling capacity of each speaker is not exceeded. Free combination of the DPA 4410’s power output voltages, including mixed 100 V and low impedance (4 ohms) operation, is possible. -
Page 8: Power Output 100 V With Double Output Capacity
DPA 4410. In that case the amplifier inputs are paralleled and the outputs are connected in series (see also diagram 5). -
Page 9: Metering
8. SETTING THE OUTPUT VOLTAGE (only by qualified service personal) The DPA 4410 provides output voltages of either 20 V, 50 V, 70 V, or 100 V. The output voltage is preset to 100 V. Changing the output voltage to a value of 20 V, 50 V, or 70 V should only be carried out by authorized DYNACORD service personal. -
Page 10: Additional Functions And Features
20 V 70 V 50 V 100 V Diagram 7 Changing the output transformer’s 354030 output voltage 9. ADDITIONAL FUNCTIONS AND FEATURES NRS 90206 pilot tone surveillance Using the extension kit NRS 90206, the amplifier channels are automatically and continuously monitored. This is achieved by sending an ultra low-level 19 kHz pilot tone through the device. -
Page 11: Nrs 90207 Ground Fault Surveillance
– or a wrongly connected cable, possibly resulting in malfunctioning. Whenever the DPA 4410 is operational or connected to an intact battery, the message “Ground Fault” is given out even with short-time ground fault occurrences (>5 sec). The ground fault message appears as collective fault message at the READY relay’s off-potential contact on the REMOTE CONTROL D-Sub... -
Page 12: Incorporation Into 19" Flightcases Or 19" Rack Systems
Do not operate the DPA 4410 without its enclosure or without parts of the enclosure. When incorporating the DPA 4410 into a 19" flightcase or 19" rack system make sure, that there is sufficient air-flow. Between the amplifier’s rear plate and the back-wall of the surrounding enclosure there has to be at least a space of 60 mm x 330 mm up to the enclosures ventilation gaps. - Page 13 F 503 F 502 25 A 25 A F 504 T6.3A F 505 T6.3A F 506 T6.3A F 507 T6.3A Diagram 10 printed circuit board 85264.2 with inserted DC fuses F502 and F507 Changing the fuses F502 and F503: The battery fuses F 502 and F503 are located on the printed circuit board 85264.2, behind the AMP battery connections.
-
Page 14: Specifications Of The Dpa 4410
SPECIFICATIONS OF THE DPA 4410 Mains supply: Voltage: 115 V / 230 V~ AC, ±10 Frequency: 50 - 60 Protection class: mains supply Umains [V] Imains [A] Pmains [VA] Pmains [W] Pout [W] Pv [W] floating 0.27 normal operation (-10 dB) 1.64... -
Page 15: Specifications Of The Optional Accessories
Weight 22.3 kg Colour anthracite Optional accessories for the DPA 4410: NRS 90206 pilot tone surveillance module (for four outputs) NRS 90207 ground fault surveillance module (for four outputs) NRS 90208 balanced input transformer module (for one input) SPECIFICATIONS OF THE OPTIONAL ACCESSORIES 13.1...
