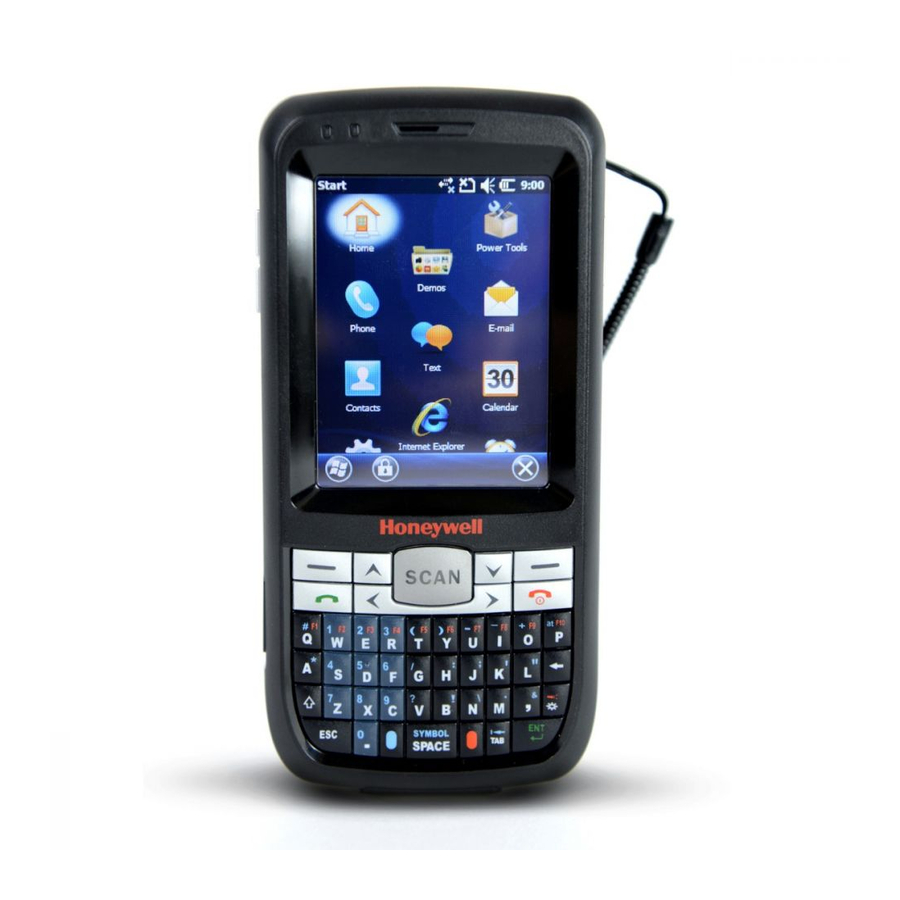

Honeywell Dolphin 60s User Manual

With windows embedded handheld 6.5
Hide thumbs Also See for Dolphin 60s:
Table of Contents

Advertisement

Quick Links

Dolphin 60s
®
with Windows
Embedded Handheld 6.5
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Honeywell Dolphin 60s

Summary of Contents for Honeywell Dolphin 60s

  • Page 1 Dolphin 60s ® with Windows Embedded Handheld 6.5 User’s Guide...
  • Page 2 Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 - Dolphin 60s Terminal Agency Information Label Locations ........................1-1 Model Number, Serial Number and IMEI Labels............1-1 LED Safety ...........................1-1 LED Safety Statement....................1-1 UL and C-UL Statement.......................1-2 Approvals by Country......................1-2 R&TTE Compliance Statement—802.11b/g/n, Bluetooth, and/or GSM.......1-2 FCC Requirements ......................1-3...
  • Page 4 Chapter 3 - Hardware Overview Standard Configurations for the Dolphin 60s............... 3-1 Peripherals for the Dolphin 60s ................... 3-2 Accessories for the Dolphin 60s ..................3-2 Features of the Dolphin 60s ....................3-4 Front Panel ........................3-4 Feature Descriptions: Front Panel ................. 3-5 Back Panel........................
  • Page 5 Chapter 6 - Using the Keyboards Available Keyboards......................6-1 Keyboard Combinations ....................6-1 Common Buttons ......................6-1 Using the Function Keys...................... 6-1 Using the Modifier Keys ...................... 6-3 Using the Navigation Keys ....................6-3 30-Key Numeric Keyboard ....................6-4 30-Key Numeric Keyboard Combinations..............6-4 46-Key QWERTY Keyboard ....................
  • Page 6 Adding Programs Using ActiveSync or Windows Mobile Device Center..... 8-11 Connecting the Terminal to a Wireless Network............8-12 Adding Programs Using the Internet................8-12 Software Upgrades......................8-13 Dolphin 60s COM Port Assignment Table................. 8-13 Chapter 9 - Working with Wireless Wide Area Networking (WWAN) Overview..........................9-1 Requirements ........................ 9-1 Antenna Band ........................
  • Page 7 Chapter 12 - Dolphin 60s HomeBase Device (Model D60s-HB) Overview..........................12-1 Unpacking the HomeBase ................... 12-1 Charging Overview ...................... 12-1 Communications ......................12-1 Convenient Storage ..................... 12-2 Capacity........................12-2 Dimensions ........................12-2 Weight.......................... 12-2 Parts and Functions......................12-3 Front Panel ......................... 12-3 Back Panel ........................
  • Page 8 viii...

  • Page 9: Chapter 1 - Dolphin 60S Terminal Agency Information

    Dolphin 60s Terminal Agency Information Dolphin 60s mobile computers meet or exceed the requirements of all applicable standards organiza- tions for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow. Read these guidelines carefully before using your Dolphin terminal.

  • Page 10: Ul And C-Ul Statement

    2006/95/EC Low Voltage Directive when supplied with the recommended power supply. Honeywell shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.

  • Page 11: Fcc Requirements

    Hand Held Products Europe B.V. Nijverheidsweg 9-13 5627 BT Eindhoven The Netherlands FCC Requirements Dolphin RF Terminal—802.11b/g/n, Bluetooth, and/or GSM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 12: Conformité À La Règlementation Canadienne

    Conformité à la règlementation canadienne Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: 1. l'appareil ne doit pas produire de brouillage, et 2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

  • Page 13: Ce Sar Compliance

    This equipment may be operated in: For European Community Users Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical and electronic equipment (WEEE). Honeywell Scanning & Mobility Product Environmental Information Refer to www.honeywellaidc.com/environmental...

  • Page 14: Pacemakers, Hearing Aids And Other Electrically Powered Devices

    IEC specification. Hearing Aid Compatibility (HAC) Dolphin 60s models 60sLU have been tested for hearing aid compatibility. These devices have an M3 and T3 rating. For additional HAC information, including the HAC rating for this product, please refer to www.honeywellaidc.com.

  • Page 15: Microwaves

    Microwaves The radio in the Dolphin RF terminal operates on the same frequency band as a microwave oven. Therefore, if you use a microwave within range of the Dolphin RF terminal you may notice performance degradation in your wireless network. However, both your microwave and your wireless network will continue to function.
  • Page 16 1 - 8...

  • Page 17: Chapter 2 - Getting Started

    Guidelines for Battery Pack Use and Disposal on page 3-13. Dolphin 60s model terminals are designed for use with battery part number 60s-BTEC (Li-ion 3.7V, 12.358 watt hour) manufactured for Honeywell International Inc. The terminal is shipped with the battery packaged separate from the unit. Perform the steps illustrated below to install the battery.

  • Page 18: Using The Usb Charge/Communication Cable (Model Usb-Wall-Charger-1)

    Before Initial Use Dolphin terminals ship with the battery significantly discharged of power. After installing the battery in the terminal, charge the battery with a Dolphin 60s charging peripheral for a minimum of 6 hours for the extended battery pack.
  • Page 19 Option 2: Charging from a high power USB port on a host device (PC) Left Side Panel of Dolphin 60s USB Door Micro USB Port USB Port on Host Device USB Charging/ Communication Cable Note: Charging the battery through a USB port takes more time than direct AC adapter charging. USB charging will not take place if the terminal is drawing more current than supplied by the USB port.

  • Page 20: The Home Screen

    The Home Screen After the Dolphin terminal initializes, the Home screen appears. Title Bar (page 2-4) Touch a menu item to access additional screens. Swipe up or down with your finger or stylus to scroll through the menu items. Touch to access Tile Bar (page 2-7)
  • Page 21 Call on hold Missed call Data call in progress A battery error has occurred. Replace the main battery with a Honeywell Li-ion battery pack. Battery is has a full charge Battery has a high charge Battery has a medium charge...
  • Page 22 Icons in the Title Bar Indicator Meaning No SIM card is installed Active network connection No active network connection GPRS available GPRS connecting GPRS in use EDGE available EDGE connecting EDGE in use UMTS available UMTS connecting UMTS in use Radio is off The radio is not connected to a network.

  • Page 23: Horizontal Scroll

    The virtual keyboard is licensed for a fee. If you attempt to upload a keyboard to your device and the following error message is displayed: It indicates that you have not yet purchased a license for your device. Contact your Honeywell Sales representative for assistance. For contact information, see Technical Assistance on page 14-1.
  • Page 24 Honeywell Virtual Keypad Creator The default enhanced virtual keyboard is fully customizable using the Honeywell Virtual Keypad Creator software available for download at www.honeywellaidc.com. The user-friendly utility allows you to personalize multiple keyboard features including key position, size, quantity, color, and the keyboard skin.

  • Page 25: The Start Menu

    The Start Menu To see the programs loaded on your terminal, touch to access the Start menu. Navigating the Start Menu • Swipe up or down with your finger or stylus to scroll through the menu icons. • To open a program, touch once on the program icon. •...

  • Page 26: File Explorer

    File Explorer You can use the File Explorer to find files and organize files into folders. Touch > File Explorer Touch on the name to open a file or folder. Touch to access additional Menu options. Touch to toggle the keyboard display on or off.

  • Page 27: File Provisioning On The Dolphin 60S

    \Honeywell The Honeywell partition or root file system partition is persistent over a hard reset, soft reset, and the removal of the battery pack or the removal of AC power. However, during a kernel upgrade the root file system is reformatted so all data in the folder is deleted and replaced by any files in the \IPSM\Honeywell folder as part of the upgrade process.

  • Page 28: Suspend Mode

    Suspend Mode In Suspend mode, the device enters a low power state to conserve battery power. The radio associated with the phone maintains enough power to wake the terminal for incoming phone calls. Suspend mode automatically turns the touch screen off to save battery power when the terminal is inactive for a programmed period of time.

  • Page 29: Resetting The Terminal

    We recommend use of Honeywell Li-ion battery packs. Use of any non-Honeywell battery may result in damage not covered by the warranty. Resetting the Terminal There are three types of system resets: a Soft Reset, a Hard Reset, or a Factory Reset. The soft and hard resets preserve all data stored in the file system.
  • Page 30 2 - 14...

  • Page 31: Chapter 3 - Hardware Overview

    Hardware Overview Standard Configurations for the Dolphin 60s WLAN, WPAN & Camera WLAN, WPAN, WWAN, GPS & Camera • Microsoft Windows Embedded Handheld • Microsoft Windows Embedded Handheld 6.5 Professional 6.5 Professional • TI AM3715 Cortex-A8 800MHz Processor • TI AM3715 Cortex-A8 800MHz Processor •...

  • Page 32: Peripherals For The Dolphin 60S

    Dolphin 60s Mobile Charger (Models 60s-MC, 60s-DEXKIT, and 60s-DB9KIT) The Dolphin 60s Mobile Charger is a charging cable that connects the terminal directly to a 12 Volt DC power source, such as a cigarette lighter port inside a vehicle, eliminating the need for a cradle. Intel- ligent battery technology on-board the terminal ensures proper charging.
  • Page 33 Battery (Part Number 60s-BATT-1) The rechargeable battery provides the main power for the terminal. For more information, see Battery page 3-10. 3 - 3...

  • Page 34: Features Of The Dolphin 60S

    Note: Your Dolphin model may differ from the model illustrated; however, the features noted are standard for all Dolphin 60s models with a Windows Embedded Handheld OS unless otherwise indicated. For a complete overview of the optional keyboards available for the Dolphin 60s, See Using the Keyboards on page 6-1.

  • Page 35: Feature Descriptions: Front Panel

    Feature Descriptions: Front Panel Audio Jack The 3.5mm audio jack supports both speaker (stereo) and microphone (mono) headsets. Blue Modifier Key Using the Modifier Keys on page 6-3. Power/End Call Key The Power/End Call key, located in the upper right corner of the keypad, puts the terminal in Suspend Mode or wakes the terminal from Suspend Mode.
  • Page 36 Send Button Answers a phone call or initiates a phone call. See Voice Communication on page 9-4. Touch Panel Display The color 2.8 inch (liquid crystal display (LCD) touch panel is covered with an industrial, protective lens for greater durability. The quarter video graphic array (QVGA) display resolution is 240 X 320.

  • Page 37: Back Panel

    USB Door/Micro USB Port Note: Your Dolphin model may differ from the model illustrated; however, the features noted are standard for all Dolphin 60s with Windows Embedded Handheld models unless otherwise indicated. For a description of each callout, see Feature Descriptions: Back Panel on page 3-8.

  • Page 38: Feature Descriptions: Back Panel

    Speakerphone for WWAN/GSM audio. The operating frequency range is 600-3000Hz at >90dB. Battery Dolphin 60s model terminals are designed for use with battery part number 60s-BATT-1 (Li-ion 3.7 V, 12.358 watt hour) manufactured for Honeywell International Inc. For information on how to remove the battery, see...
  • Page 39 Note: Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD or microSDHC memory cards with Dolphin terminals for maximum performance and durability. Contact a Honeywell sales representative for additional information on qualified memory card options.

  • Page 40: The I/O Connector

    The primary power source for the Dolphin 60s terminal is the 3.7V Li-ion rechargeable battery located under the battery door on the back panel of the device. Honeywell recommends you keep the battery in the terminal charged at all times to help prevent data loss. Letting the battery become fully discharged causes the terminal to lose all data in RAM.

  • Page 41: Charging Time

    • Dolphin 60s Mobile Charger Devices, see page 13-1 • Dolphin 60s USB Charge/Communication Cable (Model USB-WALL-CHARGER-1), see page 2-2 When the main battery is not installed in the terminal: • Place the battery pack in the Auxiliary Battery Well...

  • Page 42: Battery Error Notification

    USB charging source. Battery Error Notification If your terminal displays the following indicators, replace the battery with a Honeywell Dolphin 60s extended battery pack. For information on how to remove the battery from the terminal, see Replacing...

  • Page 43: Storing Batteries

    Honeywell International Inc. or an authorized service center for inspection. • If you are not sure the battery or charger is working properly, send it to Honeywell International Inc. or an authorized service center for inspection, see...

  • Page 44: Managing Battery Power

    Managing Battery Power Letting the battery become fully discharged causes the terminal to lose all data in RAM. Honeywell recommends, you keep a charged battery in the terminal at all times to help prevent data loss. Removing the battery from the terminal erases all non-persistent memory.

  • Page 45: System Resets

    For additional information on Advanced Power Settings, see page 7-20. For additional information on the Battery Log Configuration, see page 7-12. System Resets Resetting the Terminal on page 2-13. Hardware Maintenance When needed, clean the image engine window and the touch screen with a clean, non-abrasive, lint-free cloth.
  • Page 46 You can expand the terminal’s memory capacity by installing a microSD or microSDHC memory card. Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD or microSDHC memory cards with Dolphin terminals for maximum performance and durability. Contact a Honeywell sales representative for additional information on qualified memory card options.
  • Page 47 3. Slide the SIM Card latch toward the bottom of the terminal to unlock, then lift the SIM card latch. If a SIM card is installed, remove the SIM card to reveal the memory card latch. SIM Card Latch 4. Slide the memory card latch to the left to unlock, then lift the memory card latch. 5.
  • Page 48 7. Close the SIM card latch, then lock the SIM card latch by sliding the latch toward the top of the terminal. 8. Install the battery, then attach and lock the battery door The terminal begins booting as soon as power is applied.

  • Page 49: Overview

    Using the Scan Image Engine Overview The Dolphin 60s terminal houses a compact image engine that instantly reads popular 1D and 2D bar codes and supports omni-directional aiming and decoding for greater flexibility in real-world settings. The image engine can also capture black and white digital images, such as signatures and pictures of damaged inventory.

  • Page 50: Supported Bar Code Symbologies

    5 mil microPDF 5 mil DataMatrix 10 mil DataMatrix 1.52 (3.8) 4.87 (12.3) 3.35 (8.5) 20 mil DataMatrix 1.07 (2.7) 9.66 (24.5) 8.59 (21.8) 10 mil QR 1.50 (3.8) 5.13 (13.0) 3.63 (9.2) 20 mil QR 2.48 (6.3) 9.66 (24.5) 7.18 (18.2) 32 mil Maxicode 1.56 (3.9)

  • Page 51: Decoding

    Decoding The terminal supports two types of image decoding for use in various bar code reading and imaging applications: full-area imaging and Advanced Linear Decoding (ALD). Full-Area Imaging Full-area imaging provides omni-directional reading of linear and non-linear 1D and 2D bar codes, OCR, signature capture, and picture taking.

  • Page 52: Capturing Images Using The Imaging Demo

    The live video image has a slightly degraded appearance compared to the captured image. This is normal. Scan Key On all Dolphin 60s terminals, the Scan button captures images. File Formats File formats supported for image storage include Bitmap (BMP), JPEG (JPG) and Portable Network Graphics (PNG).

  • Page 53: Uploading Images

    1. Touch > Demos > Imaging Demo 2. Point the Dolphin terminal at the object. To preview the image, press and hold the Scan button. Note: The general notification LED above the touch screen illuminates red while the Scan button is pressed. 3.
  • Page 54 4 - 6...

  • Page 55: Chapter 5 - Using The Color Camera

    Using the Color Camera Overview Dolphin 60s terminals are equipped with 5.0-Megapixel auto focus cameras to provide easy integration of color picture and video capture into business applications. The camera lens and camera flash are located on the back panel of the terminal.
  • Page 56 Camera Options The Camera Options menu provides access to create customized profiles, adjust audible feedback, modify file preferences, and set caption options. Touch Options > Camera to access the Camera Options menu. The Camera Options screen contains five tabs: Profile, Display, Capture, Caption, and File. Profile Tab Display Tab The profile tab allows you to...
  • Page 57 Capture Tab Caption Tab File Tab 5 - 3...

  • Page 58: Taking A Picture Using The Windows Embedded Handheld 6.5 Camera Tool

    Taking a picture using the Windows Embedded Handheld 6.5 Camera tool 1. Touch > Pictures & Videos > Camera 2. Point the terminal's camera lens at the object you want to capture. Note: The camera lens is located on the back panel of the terminal. 3.
  • Page 59 Options Touch Menu > Options. The Options menu contains four screens: General Tab Slide Show Tab Camera Tab Video Tab 5 - 5...

  • Page 60: Recording Video Using The Windows Embedded Handheld 6.5 Camera Tool

    Recording Video using the Windows Embedded Handheld 6.5 Camera Tool 1. Touch > Pictures & Videos > Camera > Menu > Video 2. Point the terminal's camera lens at the object you want to capture. 3. Press the ENT button to start recording. 4.

  • Page 61: Chapter 6 - Using The Keyboards

    Using the Keyboards Available Keyboards Note: Contact a sales representative for information on additional keyboard options. 46-Key QWERTY Keyboard 30-Key Numeric Keyboard All Keyboards Contain the Following: • Backlit for easy viewing in various lighting conditions. • Centrally located Scan key for both right- and left-hand operation. •...
  • Page 62 Name Key Symbol Function Backspace Moves the cursor back one space each time the key is pressed. If you are typing text, it deletes the previous character each time it is pressed. Enter Confirms data entry. Escape Cancels the current action. Power/End The Power key, located in the upper right corner of the keypad, puts the terminal in Suspend Mode or wakes the terminal from Suspend Mode, see...

  • Page 63: Using The Modifier Keys

    Using the Modifier Keys Name Function Blue & Red The blue and red keys are used in combination with other keys to type special characters and perform system functions. Each keyboard is Blue color-coded to indicate the character typed or function performed when specific keys are pressed immediately after the blue or red modifier key.

  • Page 64: 30-Key Numeric Keyboard

    30-Key Numeric Keyboard Up Navigation Key Down Navigation Key SCAN Key Left Navigation Key Right Navigation Key Left Soft Key Right Soft Key Power Key / END Key SEND key Escape Key Space Key Tab Key Backspace Key Backlight / Flashlight Key Enter Key Shift Key...
  • Page 65 Normal Blue + Normal Blue + Normal + Red + Normal Shift Power/END Power On/Off or Warm Boot Warm Boot Power On/Off or END Call END Call back TAB @ ? ! @ or ? or ! Space Space Backlight Backlight Backlight Backlight...

  • Page 66: 46-Key Qwerty Keyboard

    46-Key QWERTY Keyboard Up Navigation Key Down Navigation Key SCAN Key Left Navigation Key Right Navigation Key Left Soft Key Right Soft Key Send Key Power Key, End Backspace, Delete Key Backlight\Flashlight Key Shift Key Enter Key Escape Key Red Key Blue Key Space\Symbol Key Tab Key...
  • Page 67 Normal Shift + Normal Blue + Normal Red + Normal Down Down Navigation Right Right Navigation # (pound/group) _ (underscore) - (minus) + (plus) * (asterisk) : (colon) ; (semi-colon) ‘ (single quote) “ (double quote) Backspace Backspace Backspace Shift Shift 6 - 7...
  • Page 68 Normal Shift + Normal Blue + Normal Red + Normal ? (question mark) (exclamation point) \ (back slash) . (period) Comma , (comma) , (comma) & (ampersand) , (comma) Backlight Backlight Backlight Backlight Flashlight Escape Period . (period) . (period) .

  • Page 69: Chapter 7 - System Settings

    System Settings Overview Customized settings are available on the System Settings menu. Touch > Settings and the settings screen opens. Icon Description Bluetooth Configure the Bluetooth radio. See Working with the Bluetooth Radio on page 10-1. Home Customize the look and the information displayed on the Home screen. Clock &...

  • Page 70: Clock & Alarms

    Icon Description Connections Establishes network connections settings. See Connections Menu on page 8-1. Personal Customizes buttons, and set SIP options. See Personal Menu on page 7-4. System Adjusts system settings. See System Menu on page 7-8. Clock & Alarms The Clock & Alarms settings can be accessed from the Home screen or the Settings menu. 1.

  • Page 71: Lock

    Lock The Lock settings screen provides access to additional password security features that enable you to prevent an unauthorized person from unlocking the touch screen and accessing the terminal. Select from two password security options: a Strong Alphanumeric Password or a Simple PIN. To add password protection: 1.

  • Page 72: Personal Menu

    Personal Menu. Icon Description Buttons The Dolphin 60s has three programmable buttons (i.e., Right and Left Soft Keys and Right Scan/Image Button). Touch the Buttons icon to program the buttons to perform specific tasks. See Buttons on page 7-5.

  • Page 73: Buttons

    Buttons The Dolphin 60s has three programmable buttons: Right Scan/Image side button, Left and Right Soft Key buttons. Use the Buttons setting to reassign the buttons to launch applications or execute commands. Changing Button Assignments 1. Touch > Settings > Personal >...
  • Page 74 Additional Functions The Assign a program list also contains the following commands: Command Description <Context Menu> Performs the same function as touch-and-hold to open the context menu for the control. <Home> Returns to the Home screen. <Input Panel> Opens the soft input panel. <Left Softkey>...
  • Page 75 Here, you are performing the same basic process as on the terminal, except that you are using the Explore utility (Windows Explorer) to copy and paste the shortcut. 1. Connect the terminal to the workstation using a Dolphin 60s peripheral. 2. Open ActiveSync > Explore and navigate to the program.

  • Page 76: System Menu

    System Menu The System menu enables you to verify and sometimes alter system parameters. To access the System menu, go to > Settings > System . Touch the appropriate icon to open that system setting. Icon See Page About About on page 7-9.

  • Page 77: About

    Icon See Page HSM SystemInfo on page 7-15. SystemInfo Managed Managed Programs on page 7-16. Programs Memory Memory on page 7-17. Power Power on page 7-18. Regional Regional Settings on page 7-19. Settings Remove Remove Programs on page 7-20. Programs on page 7-20.
  • Page 78 The Device ID Screen Displays the information the terminal uses to identify itself to other devices. It can be important to know this information if the Dolphin terminal is going to be part of a networked system of devices. • Device name: Displays the system’s default name. This is the name used by ActiveSync. •...

  • Page 79: Backlight

    Backlight The Backlight system setting enables you to customize backlight functionality for the display and keypad (i.e., Send, Home, Back and End buttons). The settings menu contains three tabs: Dim Backlight, Brightness and Keypad Backlight. To access the Backlight settings, touch >...

  • Page 80: Battery

    When the terminal is in a specific environment, you can manually adjust the brightness level for the environment by changing the Brightness level number from 1 to 8 or by dragging the slider left or right on the screen. The highest Brightness level is indicated with an 8. Touch and drag the slider to manually adjust the Brightness level setting of...
  • Page 81 The Battery Temperature indicates the temperature status of the battery. Battery Chemistry The Battery Chemistry provides the battery type (e.g., LiIon). Battery Serial Number The Battery Serial Number displays the serial number of the authenticated Honeywell battery. Battery Status Tab Log Config Tab 7 - 13...

  • Page 82: Certificates

    Certificates Certificates shows you the certificates that are recognized by the operating system. The Horizontal scroll bar at the top of the screen provides access to the three certificate screens: Intermediate, Personal, and Root. Swipe left or right on the Horizontal scroll or touch the label (e.g., Root or Personal) to access the...

  • Page 83: Error Reporting

    Error Reporting Error Reporting gives you the option of enabling or disabling the error reporting function of Windows Embedded Handheld 6.5. HSM SystemInfo The HSM SysInfo screen provides important system information including firmware versions, DLL versions, system parameters, as well as network and radio information. HSM SysInfo screen contains six tabs: System, HW, SW, Radio, EXE and DLL.

  • Page 84: Managed Programs

    To access the SIP Config screens, touch > Settings > System > SIP Config SIP Setting Tab Dial Plan Tab Managed Programs The Managed Programs screen lists the installation history of programs on the terminal that are managed by and enrolled to an enterprise domain. Managed Programs is the client-side that works with the server product System Center Mobile Device Manager (MDM).

  • Page 85: Memory

    Data or programs stored in the IPSM are not affected when the operating system is upgraded. Autoinstall programs, for example, are stored in \\IPSM\Honeywell\Autoinstall so that they are always installed after an operating system upgrade or factory reset. Contact a Honeywell technical support representative for more information on how to perform a factory reset. For...

  • Page 86: Power

    • Storage Card You can install one memory card in Dolphin terminals (see Installing a SIM Card and/or Memory Card on page 3-15). If a storage card is installed in the terminal, you can select it in the drop- down list and see capacity and usage statistics for the card. Power Power system settings contains two tabs: Battery and Advanced Touch...

  • Page 87: Regional Settings

    On USB power: The terminal is being powered by a USB connection, e.g., the Charge/Communication cable connected to a workstation (PC) or used in conjunction with the provided power supply (USB- WALL-CHARGER-1). Note: The On USB power time-out setting does not auto-spend the terminal if an ActiveSync connection between the terminal and workstation is active.

  • Page 88: Remove Programs

    If a program is manually removed using the Remove Programs application, the program does not re-install on a hard or soft reset. Note: A program (file) does not automatically install if it is added to the \\IPSM\Honeywell\Autoinstall folder and a hard or soft reset is performed. For information on program installation, see...

  • Page 89: Screen

    Screen The Screen system setting contains two screens: Clear Type and Text Size. Touch > Settings > System > Screen ClearType Screen The display supports ClearType font rendering, which is a Microsoft technology that dramatically increases the readability of text on LCD displays. To enable ClearType font rendering, select Enable ClearType and touch OK.

  • Page 90: Task Manager

    Task Manager The Task Manager provides information about applications and processes running on your mobile computer. You can use the Task Manager to monitor the memory and CPU usage of specific applications and processes. Check the Task Manager when you are receiving out of memory errors or when the mobile computer is running slowly.
  • Page 91 Processes To view information about the processes running on the mobile computer, touch the Menu button at the bottom of the screen, then touch View > Processes. 7 - 23...
  • Page 92 7 - 24...

  • Page 93: Chapter 8 - Communication

    Communication Connections Menu The Connections system setting provides access to the terminal’s various wireless communication options. Icon Description Beam Enable the terminal to receive incoming beams from devices using Bluetooth wireless technology. See Working with the Bluetooth Radio on page 10-1. Connections Open the Microsoft connections application.

  • Page 94: Microsoft Connections Application

    Icon Description Network Manage Network card settings, search and add wireless networks, and modify advanced Wi-Fi settings (e.g., network notifications and connection time-outs). Cards Microsoft Connections Application The Microsoft Connections application sets up multiple network connections to Internet Service Providers (ISPs) via an external modem. Do NOT enter connection parameters in the Connections application if: •...
  • Page 95 Tasks The Tasks screen enables you to initially configure, and then manage network settings when using a modem. Select an item in this list and then complete the setup screens that follow with the appropriate information for your network. My ISP The links under the My ISP heading enable you to add and manage modem connections to an Internet Service Provider (ISP).
  • Page 96 Modify an Existing Connection The Manage existing connections link appears on the Connections screen under the My ISP heading after at least one network connection has been established. Touch Manage Existing Connections, then follow the setup screens to modify an existing connection. Advanced The Advanced screen enables you to select the default network, dialing rules, and IP address exceptions for modem connections.

  • Page 97: Dolphin Wireless Manager

    Dolphin Wireless Manager The Dolphin Wireless Manager provides a centralized interface that enables and disables all the on- board radios. Each radio has its own configuration program. The Dolphin Wireless Manager also provides shortcuts to the configuration utilities for each radio. To open the Dolphin Wireless Manager do one of the following: 1.

  • Page 98: Enabling The Radios

    Enabling the Radios 1. Open the Dolphin Wireless Manager (see page 8-5). 2. Touch anywhere inside the rectangle of the radio you want to enable. 3. The radio begins activating. 4. When the radio is activated (i.e., transmitting a signal), the Off button changes to ON. Note: If applicable, information about the radio appears in the rectangle.

  • Page 99: Accessing Radio Configuration Utilities

    Menu Option 802.11b/g/n Touch WLAN Settings and the Honeywell WLAN Security Supplicant opens. The Honeywell WLAN Security Supplicant User’s Guide is available for download from at www.honeywellaidc.com. Bluetooth Touch Bluetooth Settings and the Bluetooth Settings screen opens. For details, see...

  • Page 100: Usb To Pc

    USB to PC Enable advanced network functionality under the USB to PC connection settings if you are having trouble connecting and synchronizing your terminal with a workstation PC using a wired USB connection and ActiveSync or Windows Device Mobile Center. The advanced network functionality can also be enable to improve transfer speeds when synchronizing large groups of data or copying large files between the terminal and workstation.

  • Page 101: Connecting And Synchronizing The Terminal And Workstation

    Communication Types The Dolphin 60s terminal supports Hi-Speed USB communication (USB 2.0) via ActiveSync through the The I/O Connector (see page 3-10) on the bottom of the terminal and the microUSB port...
  • Page 102 • Windows 98 Second Edition, Windows Me, Windows 2000, Windows NT (4.0 SP6 or higher), Windows XP, Windows Vista, and Windows 7 operating systems. Setting Up the Host Workstation To synchronize data between the terminal and the workstation, ActiveSync (v4.5 or higher) or Windows Mobile Device Center must be configured for same communication type on both the host workstation and the Dolphin terminal.

  • Page 103: Installing Additional Software

    Installing Additional Software Dolphin terminals ship with the operating system, radio drivers, and custom Honeywell software already installed. These are the default programs that install when your terminal first boots up. You can install additional software programs to the terminal provided that the following parameters are met: •...

  • Page 104: Connecting The Terminal To A Wireless Network

    WLAN (802.11b/g/n) The Dolphin 60s has a 2.4 GHz 802.11b/g/n WLAN (Wireless Local Area Network) radio. The radio is interoperable with other 802.11b/g/n, Wi-Fi compliant products including access points (APs), worksta- tions via PC card adapters, and other wireless portable devices. The next step is to configure the connection parameters of the radio to connect to a wireless network.

  • Page 105: Software Upgrades

    6. The installation wizard for the program begins. 7. Follow the directions on the screen to complete the installation. Software Upgrades Contact a Honeywell technical support representative for information on available software upgrades for your Dolphin terminal, see Customer Support on page 14-1.
  • Page 106 8 - 14...

  • Page 107: Chapter 9 - Working With Wireless Wide Area Networking (Wwan)

    Working with Wireless Wide Area Networking (WWAN) Overview The Dolphin 60s has one radio option for WWAN connectivity: a GSM WWAN radio, which provides support for quad-band GSM/GPRS/EDGE (3G) 850/900/1800/1900 MHz. The radio option support voice and data communication. Short for Global System for Mobile communications, GSM is an open, non-proprietary wireless WAN system that is constantly evolving and growing.

  • Page 108: Voice And Data Communication

    Icon Indicates… The signal strength of the radio connection. The signal strength of the phone (voice) connection. The signal strength of the data connection. Voice and Data Communication Dolphin terminals with integrated GSM/GPRS/EDGE (voice + data) radios are optimized for the following two-way communications: Voice: GSM voice data (dial-up) Data: Available speed depends on the wireless network carrier and their supported packet-data...

  • Page 109: Enabling The Wwan Radio

    Enabling the WWAN Radio You can enable or disable the WWAN radio in the Dolphin Wireless Manager (see page 8-5). Note: By default, the WWAN radio is enabled after a factory reset. To enable the WWAN radio: 1. Touch > Settings >...

  • Page 110: Audio Modes

    Audio Modes The Dolphin 60s terminal is equipped with speakers on the front and back of the terminal and a micro- phone that you can use to send and receive audio signals over the GSM network, see Features of the...

  • Page 111: Accessing Voice Mail

    Displays the network carrier from the SIM card. Displays the most recent calls. Toggles the touch screen Menu keypad On or Off. Dialing Touch the buttons on the dialer window. Sending Calls After the number is dialed, touch Talk or press the Send button Note: The icon indicates that the phone is in use.

  • Page 112: Customizing The Phone

    Customizing the Phone Touch Menu from the Dialer screen to customize options for your phone. View Select View on the Menu to modify the display screen to show Calls and Contacts, All Calls or Speed Dial numbers. Options Select Options on the Menu to customize and view features specific to the network firmware the terminal is configured to use (e.g., GSM/UMTS) for voice and data communication.
  • Page 113 Security The Security screen provides access to establish or change your security PIN for phone calls. Check the box next to, “Require a PIN when the phone is used” to enable the PIN security feature. Services For each service, the phone reads settings from the network stored on the SIM card and then displays the available options from the carrier on the screen.

  • Page 114: Data Communication

    Network You can find, select, and set your preferred network order from the Network screen. Data Communication You set up data communication using the Microsoft Connections application. Touch >Settings > Connections > Connections to access the Microsoft Connections application. System Requirements •...
  • Page 115 3. Enter a name for the connection in the “Enter a name for the connection” box. Select Cellular Line (GPRS) from the drop-down list in the “Select a modem” box. Touch Next. 4. The "Access point name" field is automatically filled in with data retrieved from the active SIM card. Note: If you want to manually configure the APN, user name and password fields instead of having the settings automatically retrieved from the SIM card, first uninstall/remove the RIL_AutoAPN_x_x.CAB file.

  • Page 116: Manual Network Selection (Gsm/Utms)

    9. Touch and hold on the connection name. Select Connect on the popup menu. 10. The network icon in the Title bar indicates the GSM radio is attempting to connect Note: When the device is on a 2G (EDGE/GPRS) network, a data connection failure occurs if the phone is in use for a voice call while attempting a data connection.
  • Page 117 3. Under Network selection, select Automatic (the default selection) or Manual. a. If you select Manual, the Phone searches for available networks. b. Select a new network and touch OK. c. The Phone registers on the new network and the Network screen appears. d.
  • Page 118 9 - 12...

  • Page 119: Chapter 10 - Working With The Bluetooth Radio

    Working with the Bluetooth Radio Enabling the Bluetooth Radio You enable the Bluetooth radio in the Dolphin Wireless Manager Window (see page 8-5). 1. Touch > Settings > Connections > Dolphin Wireless Manager 2. Touch anywhere inside the Bluetooth rectangle to begin activation of the Bluetooth radio. 3.

  • Page 120: Pairing And Trusted Devices

    Pairing and Trusted Devices The terminal supports pairing. Pairing happens during the general connection setup. Paired devices are "trusted" devices. This means that there is unrestricted access to all services (including services that require authorization and authentication). A connection can exclude pairing. A device that is connected to the terminal but not paired with it is considered an untrusted device.
  • Page 121 4. Select a device from the list and touch Next. The types of devices in the vicinity of the radio appear in the list of discovered devices. 5. You are prompted to enter a passcode. • If the device has a specific passcode, enter it in the Passcode field and touch Next. When attempting to connect to a printer or headset with Bluetooth capabilities, the passcode may default to either 1111 or 0000.
  • Page 122 8. When the connection is complete, a list of matching and supported services on the device appears. Only the services that are mutually supported on both devices appear in the Partnership Settings window. 9. Select the services you want to use and touch Save. The services on the new devices have to be selected or the pairing won’t include those services, even though the devices are paired.

  • Page 123: Transferring Files Using Beam File

    Transferring Files using Beam File Before attempting to transfer files, make sure the receiving Bluetooth device is in range, set to be discov- erable by other devices, and set to receive incoming beams. 1. Touch > File Explorer. 2. Navigate to the file you want to transfer. 3.

  • Page 124: Making The Terminal Discoverable

    3. Select “Make this device visible to other devices” and touch OK. Enabling the Terminal to Receive Incoming Beams By default, the Dolphin 60s terminal is not configured to receive incoming beams from other devices attempting file transfers via the Beam File command. Before initiating a file transfer from another device follow the steps below to enable Beam reception on your Dolphin terminal.

  • Page 125: Chapter 11 - Working With Gps

    Working with GPS Overview The Dolphin 60s terminal contains an integrated GPS module that allows location tracking of workers and vehicles, providing better utilization of field assets. Optional mapping and navigation software provides turn-by-turn driving directions and location information. Assisted GPS Support Assisted GPS (A-GPS) is turned on by default.

  • Page 126: Gps Intermediate Driver

    GPS Intermediate Driver When the first user of GPD1 opens the port, the GPS Intermediate Driver opens the COM7 port. The GPS Intermediate Driver allows multiple applications to open GPD1, and the GPS data is broadcast to all open ports. When the GPSID driver is in use, the COM7 port is allocated to GPSID as READ|WRITE (COM7 is still available for access mode of 0).

  • Page 127: Chapter 12 - Dolphin 60S Homebase Device (Model D60S-Hb)

    The HomeBase also contains an auxiliary battery well that charges a spare Honeywell standard or extended battery. The D60s-HB charger is designed for use with Dolphin 60s model terminals and battery part number 60s-BTEC (Li-ion 3.7 V, 12.358 watt hour), manufactured for Honeywell International Inc.

  • Page 128: Convenient Storage

    This means that one base can charge two battery packs: the one installed in the terminal and a spare. We recommend use of Honeywell peripherals, power cables, and power adapters. Use of any non-Honeywell peripherals, cables, or power adapters may cause damage not covered by the warranty.

  • Page 129: Parts And Functions

    Parts and Functions Front Panel Auxiliary Battery Well Terminal Well Dock LED AUX Battery LED Terminal Well Place the terminal in this well to communicate with a host device, power the terminal, and charge the installed battery pack. The base completely charges the main battery in a Dolphin terminal in 6 hours for the extended battery.

  • Page 130: Back Panel

    Back Panel Auxiliary Battery Well USB Port DC Power Jack Auxiliary Battery Well The base enables you to charge an additional battery pack independently of the terminal well in 6 hours for the extended battery. This feature ensures that you can always have a fully- charged battery for your terminal.

  • Page 131: Bottom Panel

    The power adapter included with the base, converts the voltage from the AC power source to 12 Volts DC. Use only a UL listed power supply, which has been qualified by Honeywell with output rated at 12VDC and 3 amps with the device. The operating temperature range is 0° to 50°C (32°...

  • Page 132: Charging The Main Battery

    Checking Battery Power on page 3-14. We recommend use of Honeywell Li-Ion battery packs. Use of any non-Honeywell battery may result in damage not covered by the warranty. Charging a Spare Battery in the Auxiliary Battery Well The auxiliary battery well located on the back of the base charges a spare battery independently of the terminal well.

  • Page 133: Requirements

    Requirements • A base powered by a power cable and power adapter cable • A standard USB (Type A to B) communication cable • A work station running Windows 98 Second Edition, Windows Me, Windows 2000, Windows NT (4.0 SP6 or higher), Windows XP, Windows Vista, or Windows 7. •...
  • Page 134 2. Then, using the appropriate nuts and bolts, secure the DIN rail to the desk or flat surface. 12 - 8...

  • Page 135: Chapter 13 - Dolphin 60S Mobile Charger Devices

    Note: Before attempting to use, charge, or replace the battery in the terminal, you should read the Guidelines for Battery Pack Use and Disposal on page 3-13. We recommend use of Honeywell Li-Ion battery packs. Use of any non-Honeywell battery may result in damage not covered by the warranty. Mobile Charger Components (60s-MC) Terminal Charging...

  • Page 136: Mobile Charger With Dex Cable Components (60S-Dexkit)

    Terminal Charging Well Place the terminal in this well to charge the battery. Mobile Charger with DEX Cable Components (60s-DEXKIT) Terminal Charging Well Power Adapter DEX Cable DEX Cable The mobile charger is provided with a DEX cable that can be connected to a vending machine. Power Adapter The mobile charger is provided with a power adapter cable that can be connected to a vehicle cigarette lighter outlet.

  • Page 137: Mobile Charger With Db9 Cable Components (60S-Db9Kit)

    Dolphin terminals prevents overcharging, which means that terminal may be seated in the charger indefinitely without damage to the terminal, battery pack, or the charger. For more information about Honeywell battery packs and how to check battery power levels in your terminal, refer to...

  • Page 138: To Power A Terminal And Charge Its Main Battery

    1. Install the main battery in the terminal; see Install the Battery on page 2-1. 2. Install the Dolphin 60s into the terminal well. 3. To charge the Dolphin 60s, connect the power adapter to a vehicle cigarette lighter outlet. 13 - 4...

  • Page 139: Chapter 14 - Customer Support

    If your mobile device has a touch screen display, please note that a touch screen responds best to a light touch from the pad of your finger or a Honeywell approved stylus. Using excessive force or a metallic object when pressing on the touch-screen may cause damage to the tempered glass surface and may not be covered by the product's warranty.
  • Page 140 • The duration of the limited warranty for terminals with an integrated imager is one year. • The duration of the limited warranty for touch screens is one year. • The duration of the limited warranty for the Dolphin 60s HomeBase device and Dolphin 60s Mobile Charger devices is one year.

  • Page 141: How To Extend Your Warranty

    How to Extend Your Warranty Honeywell International Inc. offers a variety of service plans on our hardware products. These agree- ments offer continued coverage for your equipment after the initial warranty expires. For more infor- mation, contact your Sales Representative, Customer Account Representative, or Product Service Marketing Manager from Honeywell International Inc., or your Authorized Reseller.
  • Page 142 14 - 4...
  • Page 144 Honeywell Scanning & Mobility 9680 Old Bailes Road Fort Mill, SC 29707 www.honeywellaidc.com 60S-UG Rev A 8/13...
