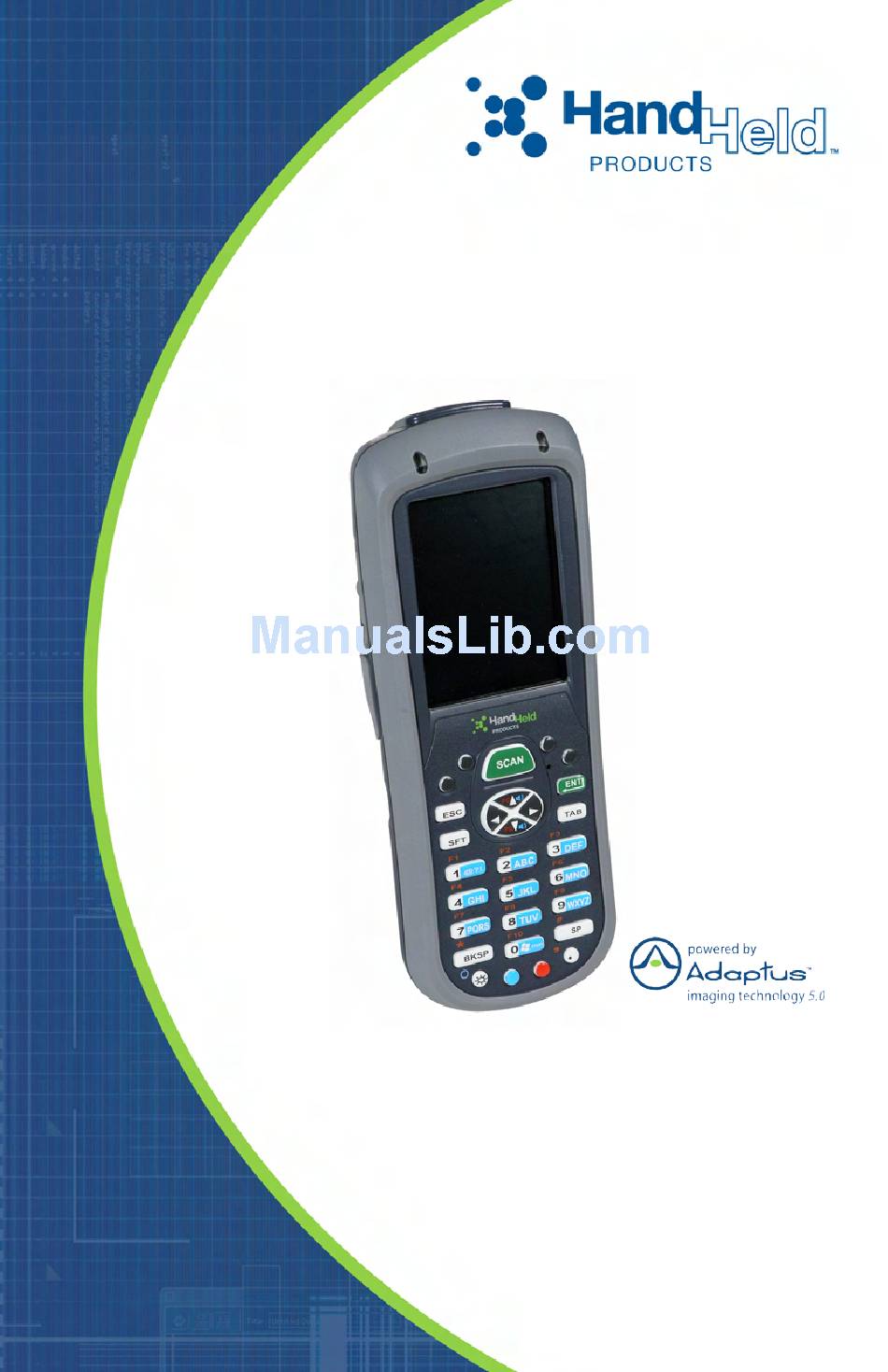

Dolphin® 7600 Series
Mobile Computer
Quick Start Guide

Advertisement

loading

  Related Manuals for Honeywell Dolphin 7600 Series

  Summary of Contents for Honeywell Dolphin 7600 Series

  • Page 1 Dolphin® 7600 Series Mobile Computer ™ Quick Start Guide...
  • Page 3 Dolphin 7600 Mobile Computer Quick Start Guide Out of the Box Verify that your carton contains the following items: • Dolphin 7600 mobile computer (the terminal) • Main battery pack (3.7v, Li-ion) • AC power supply • Localized plug adapters •...
  • Page 4 Dolphin 7600 Back and Side Panel Image Engine Window Stylus Slot Speaker Dolphin 7600 Top and Bottom Panels Memory Card Door *Image Engine Window *Pull the plastic tab to remove the plastic film cover over the image engine window before activating the image engine.
  • Page 5: Step 1: Install The Main Battery

    Step 1: Install the Main Battery Use only the Li-ion battery packs provided by Hand Held Products. The use of any battery pack not sold/manufactured by Hand Held Products in a Dolphin terminal will void your warranty and may result in damage to the Dolphin terminal or battery. Step 2: Charge the Batteries Dolphin terminals ship with both the main battery pack and internal backup battery significantly discharged of power.
  • Page 6: User Documentation

    Step 3: Boot the Terminal Windows CE The terminal begins booting as soon as power is applied and runs by itself. Do NOT press any keys or interrupt the boot process. When the boot process is complete, the Desktop appears and the terminal is ready for use.
  • Page 7: Product Service And Repair

    Product Service and Repair Hand Held Products provides service for all its products through service centers throughout the world. To obtain warranty or non-warranty service, return the unit to Hand Held Products (postage paid) with a copy of the dated purchase record attached. Contact the appropriate location below to obtain a Return Material Authorization number (RMA #) before returning the product.
  • Page 8: Technical Assistance

    Technical Assistance If you need assistance installing or troubleshooting, please call your Distributor or the nearest Hand Held Products technical support office: North America/Canada: Telephone: (800) 782-4263, option 4 (8 a.m. to 6 p.m. EST) Fax number: (315) 685-4960 E-mail: natechsupport@handheld.com América Latina: Teléfono:...
  • Page 9: Limited Warranty

    Hand Held Products, Inc. extends these warranties only to the first end users of the products. These warranties are non-transferable. The limited duration of the warranty for the Dolphin 7600 Series is as follows: • Terminals with an integrated imager are covered by a one-year limited warranty.
  • Page 10 Disclaimer Hand Held Products, Inc. (“Hand Held Products”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Hand Held Products to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of Hand Held Products.
  • Page 12 Hand Held Products, Inc. 700 Visions Drive P.O. Box 208 Skaneateles Falls, NY 13153-0208 76-QS Rev B 10/06...
