SCRIBE EC WITH PRISM PLUS PRINTER INSTALLATION GUIDE
Minimum PC System Requirements
1 Drive SCRIBE EC Minimum System Requirements
•
A Pentium® II/III or compatible personal computer @ 450 MHz or faster.
•
Operating System: Windows 2000 Professional or Windows XP
•
256 MB RAM
•
7200 RPM ATA-100 Hard Drive with 850 MB for CD-R and 6GB (NTFS) for DVD-R of free
hard disk space - fully defragmented
•
Monitor: 800 x 600 display, 16-bit color recommended.
•
Two button mouse
•
High quality Recordable CD-Rs / DVD-Rs (see approved media list on website
www.mfdigital.com
•
One free PCI slot
•
One external COM Port (COM1 or COM2). * Two external Comports are needed if using
Prism Plus or Spectrum2 (COM1 and COM2)
•
Win ASPI driver layer (Included)
•
One IEEE-1394 Adapter (Included)
•
Appropriate bi-directional parallel printer cable (IEEE 1284 compliant)
2,4,6 Drive SCRIBE EC Minimum System Requirements
•
A Pentium®III or compatible personal computer @ 800 MHz or faster.
•
Operating System: Windows 2000 Professional or Windows XP
•
1 GB RAM (Asynchronous Operation)
•
7200 RPM ATA-100 Hard Drive with 850 MB for CD-R and 6GB (NTFS) for DVD-R of free
hard disk space - fully defragmented
•
Monitor: 800 x 600 display, 16-bit color recommended.
•
Two button mouse
•
High quality Recordable CD-Rs / DVD-Rs (see approved media list on website
www.mfdigital.com
•
Free PCI slots (one for 2-drive systems and two for 4 and 6-drive systems)
•
One external COM Port (COM1 or COM2). *Two external Comports are needed if using
Prism Plus or Spectrum2 (COM1 and COM2)
•
Win ASPI driver layer (Included)
•
IEEE-1394 Adapters Included
•
Appropriate bi-directional parallel printer cable (IEEE 1284 compliant)

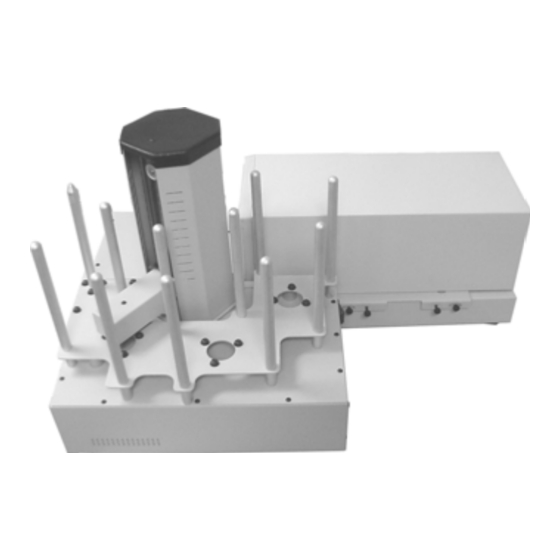

Scribe EC with Prism Plus Printer
Installation Guide
for details)
for details)
MF DIGITAL
121 Carolyn Blvd.
Farmingdale, NY 11735
001 631 249 9393
www.mfdigital.com
Document Revision: 08/03
