SCRIBE EC WITH OptiEC PRINTER INSTALLATION GUIDE
Minimum PC System Requirements
•
A Pentium II/III PC 800 MHz or faster
•
Windows 2000 Pro (Service Pack 4.0) or Windows XP
•
512 MB Ram
•
7200 RPM ATA-100 Clean Hard Disk NTFS - (5GB Free Space)
•
800 x 600 display, 16-bit color recommended
•
Two Button Mouse
•
Two Free PCI Slots
•
1 external COM port (COM1 or COM2) - 2 ports needed if using Prism
Plus or Spectrum2
•
Win ASPI driver layer (Included)
•
IEEE-1394s adapters (Included) (Except print Station)
•
Appropriate IEEE-1284 Printer Cable if attached

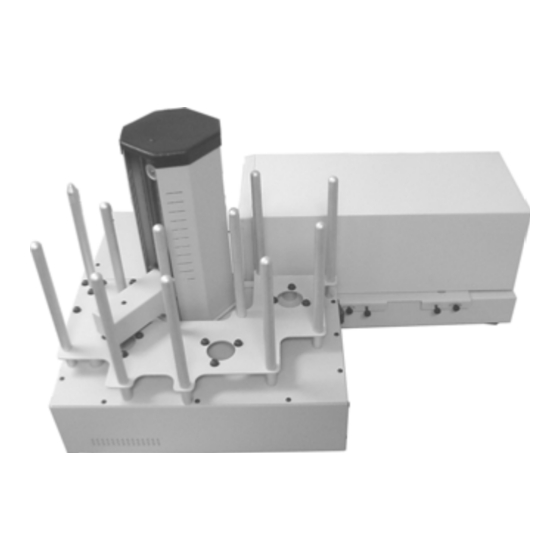

Scribe EC with OptiEC Printer
Installation Guide
MF DIGITAL
121 Carolyn Blvd.
Farmingdale, NY 11735
001 631 249 9393
www.mfdigital.com
Document Revision: 2/21
