MF DIGITAL Scribe EC Installation Manual
  1. Manuals
  2. Brands
  3. MF DIGITAL Manuals
  4. Printer
  5. SCRIBE EC
  6. Installation manual

MF DIGITAL Scribe EC Installation Manual

With prism plus printer
Hide thumbs Also See for Scribe EC:

Advertisement

Quick Links

Download this manual See also: Operator's Manual
EC

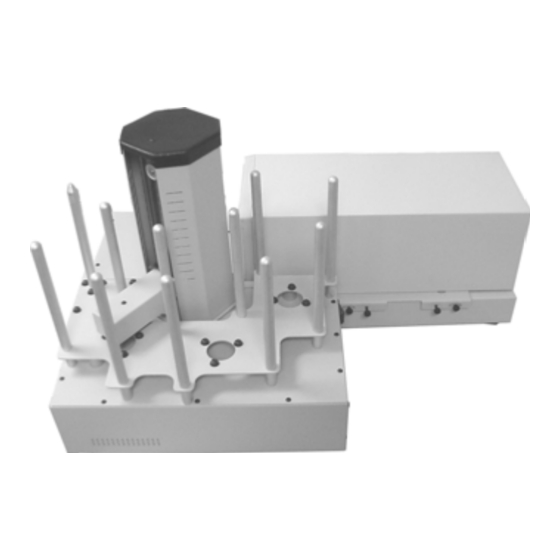

SCRIBE EC with Prism PLUS PRINTER
INSTALLATION GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Scribe EC and is the answer not in the manual?

Questions and answers

Related Manuals for MF DIGITAL Scribe EC

Summary of Contents for MF DIGITAL Scribe EC

  • Page 1 SCRIBE EC with Prism PLUS PRINTER INSTALLATION GUIDE...

  • Page 2: Minimum System Requirements

    Scribe EC Quick Installation Guide Document Revision: 2004/12/07 Document Revision: 2004/12/28 ScribeEC with Prism PLUS printer with Prism PLUS Printer Installation Guide Minimum System Requirements Print Station & 1-Drive Models – Minimum System Requirements: • Minimum Pentium® III or compatible personal computer @ 800 MHz or faster.
  • Page 3 Scribe EC Quick Installation Guide Document Revision: 2004/12/07 Document Revision: 2004/12/28 ScribeEC with Prism PLUS printer with Prism PLUS Printer Installation Guide Mounting the Firewire Adapter Card Note: The internal configuration of your computer may be different from the computer picture below DVD dive ScribeEC requires only one PCI firewire B controller card (IEEE-1394B).

  • Page 4: Making The Connection

    Scribe EC Quick Installation Guide Document Revision: 2004/12/07 Document Revision: 2004/12/28 ScribeEC with Prism PLUS printer with Prism PLUS Printer Installation Guide Making the Connection * 1 & 2 Drive Systems require one firewire cable connection (IEEE-1934). * 4 Drive Systems require two firewire cable connections (IEEE-1934).
  • Page 5 Scribe EC Quick Installation Guide Document Revision: 2004/12/07 Document Revision: 2004/12/28 ScribeEC with Prism PLUS printer with Prism PLUS Printer Installation Guide Installing the SCRIBE EC Software 1. Insert the SCRIBE EC software CD. From the CD ROM drive of the computer, click Install SCRIBE Software.
  • Page 6 Document Revision: 2004/12/28 ScribeEC with Prism PLUS printer with Prism PLUS Printer Installation Guide Installing the SCRIBE EC Alignment Utility 1. Insert the SCRIBE CD into the CD- ROM drive of your PC. 2. Click on setup.exe of the alignment utility and Click Next (fig.
  • Page 7 Scribe EC Quick Installation Guide Document Revision: 2004/12/07 Document Revision: 2004/12/28 ScribeEC with Prism PLUS printer with Prism PLUS Printer Installation Guide Installing the Prism Plus Printer Driver 1. Click Start-> Settings-> Printers 2. Click Add New Printer 3. The “Welcome to the Add Printer Wizard”...
  • Page 8 Scribe EC Quick Installation Guide Document Revision: 2004/12/07 Document Revision: 2004/12/28 ScribeEC with Prism PLUS printer with Prism PLUS Printer Installation Guide Installing the Prism Plus Printer Driver (cont.) 7. After specifying the driver for the Prism Plus printer, the printer “Rimage Perfect Image Printer PF”...
  • Page 9 Scribe EC Quick Installation Guide Document Revision: 2004/12/07 Document Revision: 2004/12/28 ScribeEC with Prism PLUS printer with Prism PLUS Printer Installation Guide Adjusting the Prism Plus Printer Driver Settings Printing Preferences To change the printing preferences for the Prism Plus printer, please do the following: 1.
  • Page 10 Scribe EC Quick Installation Guide 101010 Document Revision: 2004/12/07 Document Revision: 2004/12/28 ScribeEC with Prism PLUS printer with Prism PLUS Printer Installation Guide Adjusting the Prism Plus Printer Driver Settings (cont.) Device Settings 7. Go to Start-> Settings -> Printers 8.
  • Page 11 Prism PLUS Printer Installation Guide Aligning the Drive Tower 1. From your Start Menu Open the SCRIBE EC Alignment Utility (fig. 1). It will be located in the folder designated when you installed the alignment utility. Choose the appropriate COM Port that the Scribe EC loader is connected to then Click Start Test.
  • Page 12 1. From the Start Menu Open the SCRIBE EC Alignment Utility. It will be located in the folder designated when you installed the alignment utility.
  • Page 13 Scribe EC Quick Installation Guide 131313 Document Revision: 2004/12/07 Document Revision: 2004/12/28 ScribeEC with Prism PLUS printer with Prism PLUS Printer Installation Guide Appendix A DVD8Z-9001EC, DVD8Z-9002EC 1 and 2 DVD drive system requires only one PCI firewire B controller card (IEEE- 1394B) to be installed in a host PC.

  • Page 14: Troubleshooting

    Scribe EC Quick Installation Guide 141414 Document Revision: 2004/12/07 Document Revision: 2004/12/28 ScribeEC with Prism PLUS printer with Prism PLUS Printer Installation Guide Troubleshooting 1. The ScribeEC program did not recognized the loader. a. Check the power cable on the back of the ScribeEC loader.
