Operator's Manual

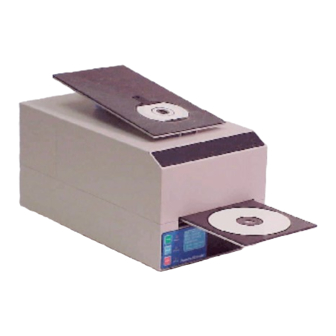

SCRIBE EC WITH SPECTRUM 2 PRINTER INSTALLATION GUIDE
Minimum PC System Requirements
•
A Pentium II/III PC 800 MHz or faster
•
Windows 2000 Pro (Service Pack 4.0) or Windows XP
•
512 MB Ram
•
7200 RPM ATA-100 Clean Hard Disk NTFS - (5GB Free Space)
•
800 x 600 display, 16-bit color recommended
•
Two Button Mouse
•
Two Free PCI Slots
•
1 external COM port (COM1 or COM2) - 2 ports needed if using Prism
Plus or Spectrum2
•
Win ASPI driver layer (Included)
•
IEEE-1394s adapters (Included) (Except print Station)
•
Appropriate IEEE-1284 Printer Cable if attached
Scribe EC with Spectrum 2 Printer
Installation Guide
MF DIGITAL
121 Carolyn Blvd.
Farmingdale, NY 11735
001 631 249 9393
www.mfdigital.com
Document Revision: 2/21
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MF DIGITAL Spectrum 2
Summary of Contents for MF DIGITAL Spectrum 2
- Page 1 Scribe EC with Spectrum 2 Printer Document Revision: 2/21 Installation Guide SCRIBE EC WITH SPECTRUM 2 PRINTER INSTALLATION GUIDE Minimum PC System Requirements • A Pentium II/III PC 800 MHz or faster • Windows 2000 Pro (Service Pack 4.0) or Windows XP •...
- Page 2 IF YOU PURCHASED A PRINT STATION – SKIP THIS PAGE Installing the Firewire Adapter Card Note: The internal configuration of your computer may be different from the computer pictured below. One and two drive ScribeECs require one IEEE-1394 card. Four drive systems require two IEEE-1394 cards.
-
Page 3: Preparing The Spectrum 2 Printer
• Warranty statement and registration card • Operator’s manual Installing the Spectrum 2 Printer Plate 1. With a Phillips head screwdriver, remove the rubber feet from the bottom of the printer (fig. 1). You will also want to remove the small plate from the bottom of the printer (fig. -
Page 4: Making The Connection
Making the Connection 1 & 2 Drive Systems 4 Drive System PC Connection Two drive unit uses one fire wire adapter card and one cable. Four drive unit uses two firewire adapter cards and two cables… Install one cable in each firewire card. - Page 5 Installing the SCRIBE EC Software 1. Insert the SCRIBE EC software CD. From the CD ROM drive of the computer, click Install SCRIBE Software. (fig. 1) Click Next (fig. 1). 4. Accept the license agreement and click Next (fig. 2). (fig.
- Page 6 Installing the SCRIBE EC Alignment Utility 1. Insert the SCRIBE CD into the CD- ROM drive of your PC. 2. Click on setup.exe of the alignment utility and Click OK (fig. 1). (fig. 1) 3. Click the button indicated in (fig. 2). (fig.
- Page 7 Installing the Spectrum 2 Printer Driver 1. Click Start-> Settings-> Printers 2. Click Add New Printer 3. The “Welcome to the Add Printer Wizard” window will appear (fig 1). Click Next. 4. In the “Local or Network Printer” window, uncheck the “Automatically detect installed printer”...
- Page 8 Installing the Spectrum 2 Printer Driver (cont.) 7. After specifying the driver for the Spectrum 2 printer, the printer “Spectrum2” will appear in the “Add Printer Window” (fig 7). Click Next to continue. 8. In the “Name your Printer” window,...
- Page 9 NEW PRN file.*** Printer Spooling It is important to disable printer spooling on the Spectrum 2 printer. To do so, please follow the steps below: 1. Go to Start-> Settings -> Printers 2. Right-click on the Spectrum 2 printer in the Printers Folder 3.
- Page 10 Aligning the Drive Tower 1. From your Start Menu Open the SCRIBE EC (fig. 1) Alignment Utility (fig. 1). It will be located in the folder designated when you installed the alignment utility. Choose the appropriate COM Port which the Scribe EC Loader is installed on.
- Page 11 Aligning the Spectrum 2 Printer Before starting the Alignment Utility, Alert: position the front end of the printer on the dotted line on the top of the drive bay. (fig. 1) 1. From your Start Menu Open the SCRIBE EC Software.
