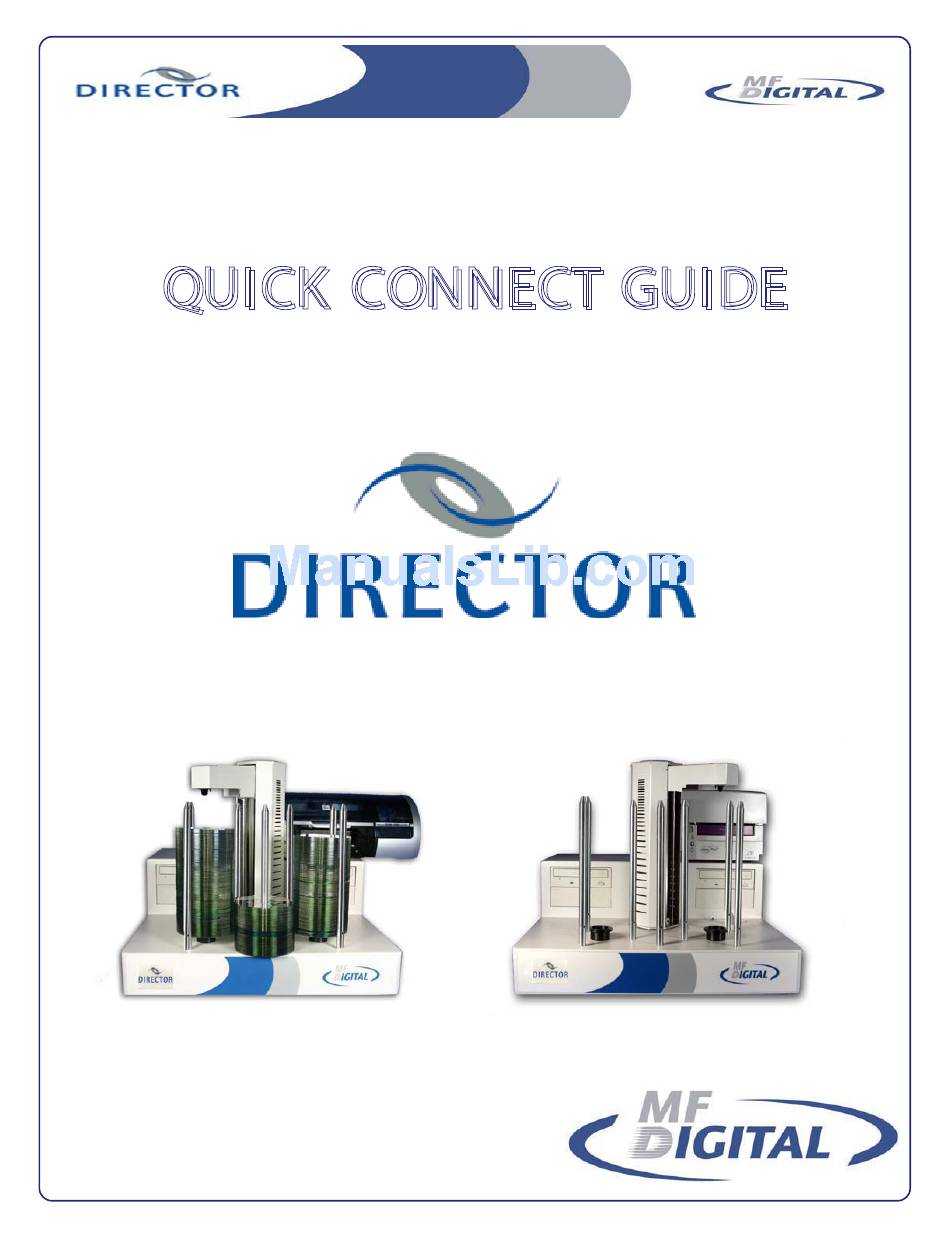

- Page 1 2600 For a complete guide of instructions, see the manual located on the Manual CD that was shipped with your system. www.mfdigital.com Rev 2-11-09...
- Page 2 Software Manual is located on Manuals CD packaged with your system.
- Page 3 Director Series Loader (2602) Power Cable LAN Connection Guide LAN Cable Quick Connect Guide User’s Manual CD System Firmware CD Windows XP CD...
- Page 4 PC Cabling with Printer and Hoppers 1. Attach a Monitor Keyboard and Mouse as shown above (not included from MF Digital). 2. Then plug your PC Series into AC Wall Receptacle.
- Page 5 3. The latch located at the rear of the mounting plate will line up with the “U”shaped housing located on the rear of the MF Digital PC Series Unit. See picture above (blue circle). 4. After mounting the Printer, be...
- Page 6 3. The latch located at the rear of the mounting plate will line up with the “U”shaped housing located on the rear of the MF Digital PC Series Unit. See picture above (blue circle). 4. After mounting the Printer, be sure...
- Page 7 Installing P55 Printer Slide mounting bracket and printer on Scribe (Do not lock down lever yet) Install all Cables as shown above (ttl, usb, power) Electronically align through hyper-terminal – Please contact a MFD technical support representative for this process. Lock down printer with locking lever.
- Page 8 Genuine MF Digital Consumables Thermal Printer Supplies Thermal CD/DVD Printer Ribbons The Gold Standard Part# Product Description CDP-PRN-BK 750' Black Ribbon for Prism Plus (Fine Line Print) CDP-PRN-BLK 850' Black Ribbon for Spectrum 2 Printers CDP-PRN-RED 656' Red Ribbon for Prism Plus & Spectrum 2 Printers CDP-PRN-BLUE 656' Blue Ribbon for Prism Plus &...
