4
SYSTEM PRESSURE
4.1
SEALED HEATING SYSTEMS
This boiler is fitted to a sealed heating system which is pre-pressurised. Your installer will advise you
of the minimum and maximum pressure indicated on the pressure gauge.
B Check regularly that the pressure is maintained.

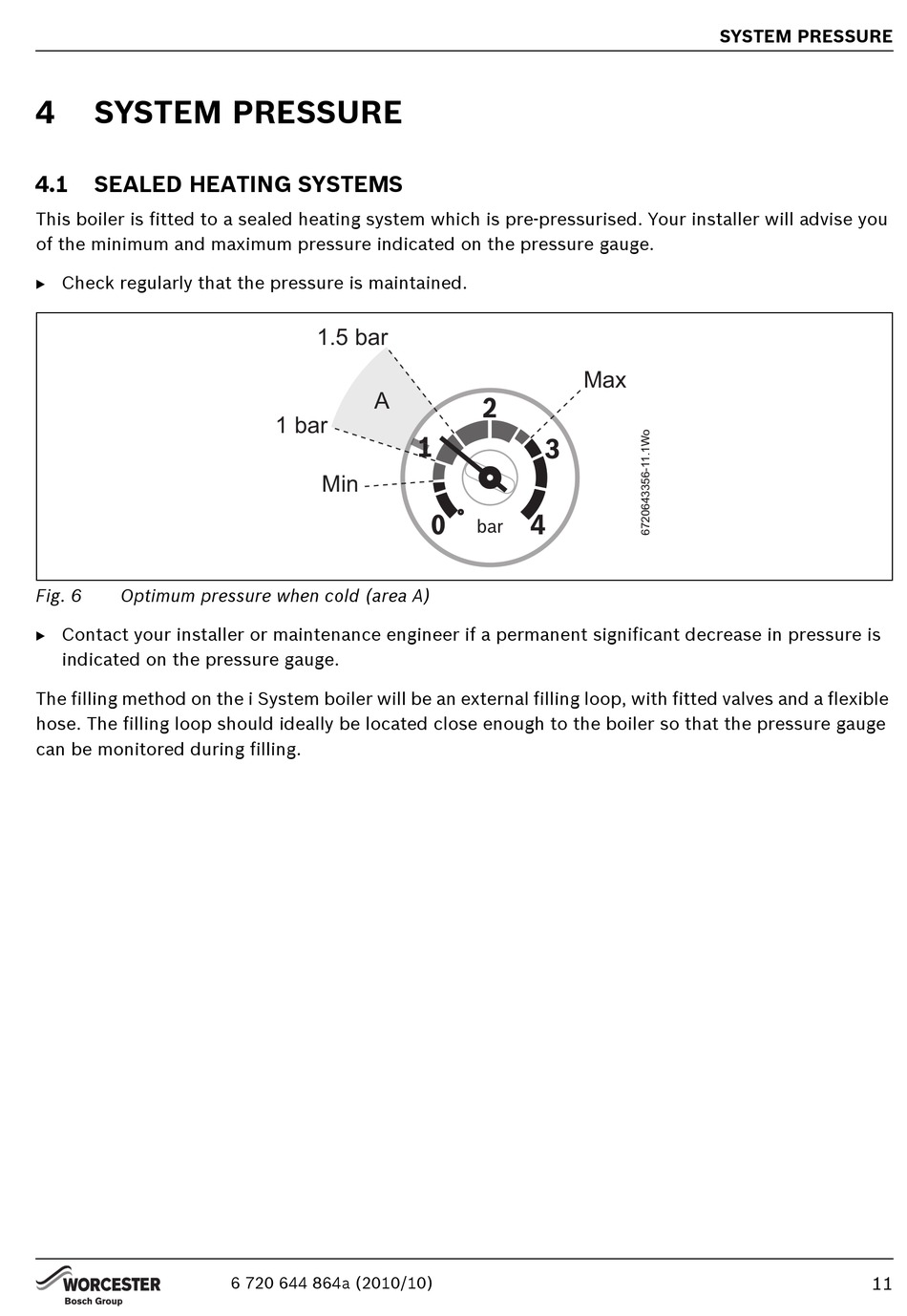

Fig. 6
Optimum pressure when cold (area A)
B Contact your installer or maintenance engineer if a permanent significant decrease in pressure is
indicated on the pressure gauge.
The filling method on the i System boiler will be an external filling loop, with fitted valves and a flexible
hose. The filling loop should ideally be located close enough to the boiler so that the pressure gauge
can be monitored during filling.
1.5 bar
A
1 bar
Min
6 720 644 864a (2010/10)
Max
2
1
1
3
0
4
bar
SYSTEM PRESSURE
11
