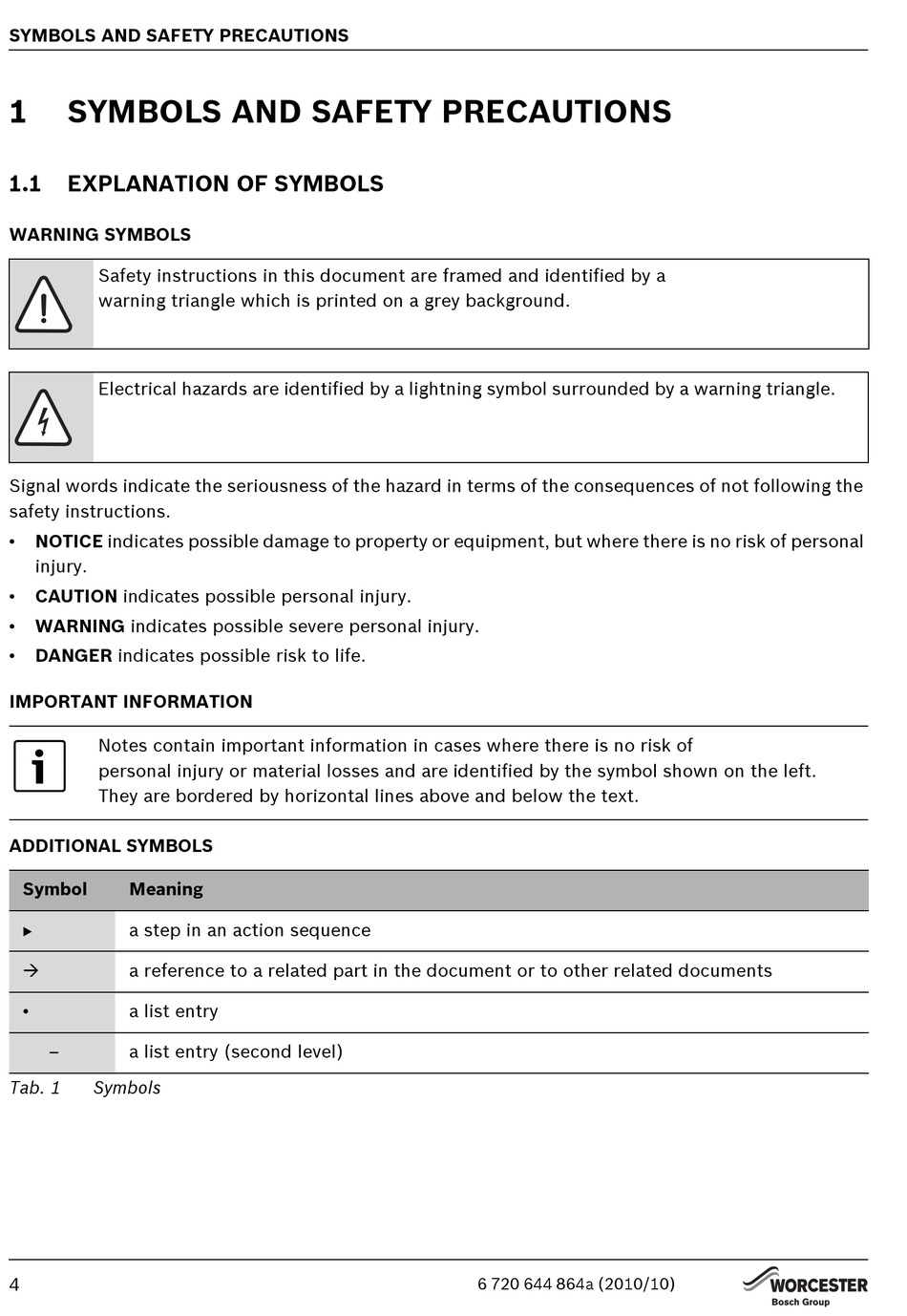

SYMBOLS AND SAFETY PRECAUTIONS
1
SYMBOLS AND SAFETY PRECAUTIONS
1.1
EXPLANATION OF SYMBOLS
WARNING SYMBOLS
Safety instructions in this document are framed and identified by a
warning triangle which is printed on a grey background.
Electrical hazards are identified by a lightning symbol surrounded by a warning triangle.
Signal words indicate the seriousness of the hazard in terms of the consequences of not following the
safety instructions.
NOTICE indicates possible damage to property or equipment, but where there is no risk of personal
•
injury.
CAUTION indicates possible personal injury.
•
WARNING indicates possible severe personal injury.
•
DANGER indicates possible risk to life.
•
IMPORTANT INFORMATION
Notes contain important information in cases where there is no risk of
personal injury or material losses and are identified by the symbol shown on the left.
They are bordered by horizontal lines above and below the text.
ADDITIONAL SYMBOLS
Symbol
Meaning
a step in an action sequence
B
a reference to a related part in the document or to other related documents
a list entry
•
a list entry (second level)
–
Tab. 1
Symbols
4
6 720 644 864a (2010/10)
