MULTI VISION IMAGER INSTALLATION
WALL MOUNT
1. The screen is shipped with two 46" wall brackets. Screens with less than 96" viewing area width (not standard
sizes) are shipped with one wall bracket. Two small "L" brackets are included to hold frame securely to wall at
bottom.
2. Each wall bracket must be mounted into at least two wall studs. Check to make sure both brackets are vertically
level with each other. The distance between the outside ends of the two wall brackets is the length of the 6
8" top main frame minus 20". See table 1 for standard bracket distances.
3. Secure (2) large wall brackets to wall studs at the desired height. Make sure the brackets are level. Drill holes and
attach mounting brackets into wall. You will need at least 4" clearance above the drilled holes to hang the screen. It
is recommended to use a ¼" x 1
4. This step must be done by a lifting device or enough people to safely lift the weight of the screen over the wall
brackets; see chart of weights above. Hang the screen on the wall brackets as shown on figure 4. There is a lip on
the back of the frame that wedges itself into the wall brackets once fully installed on brackets.
5. Attach two small L brackets to the bottom of the frame with two #10 x
with two screws (not supplied).
WALL
BRACKETS (2)
6 ⁄ " x 8" TOP FRAmE LENgTh - 20"
1
4
BACK LIP
OF FRAmE
WALL
BRACKET

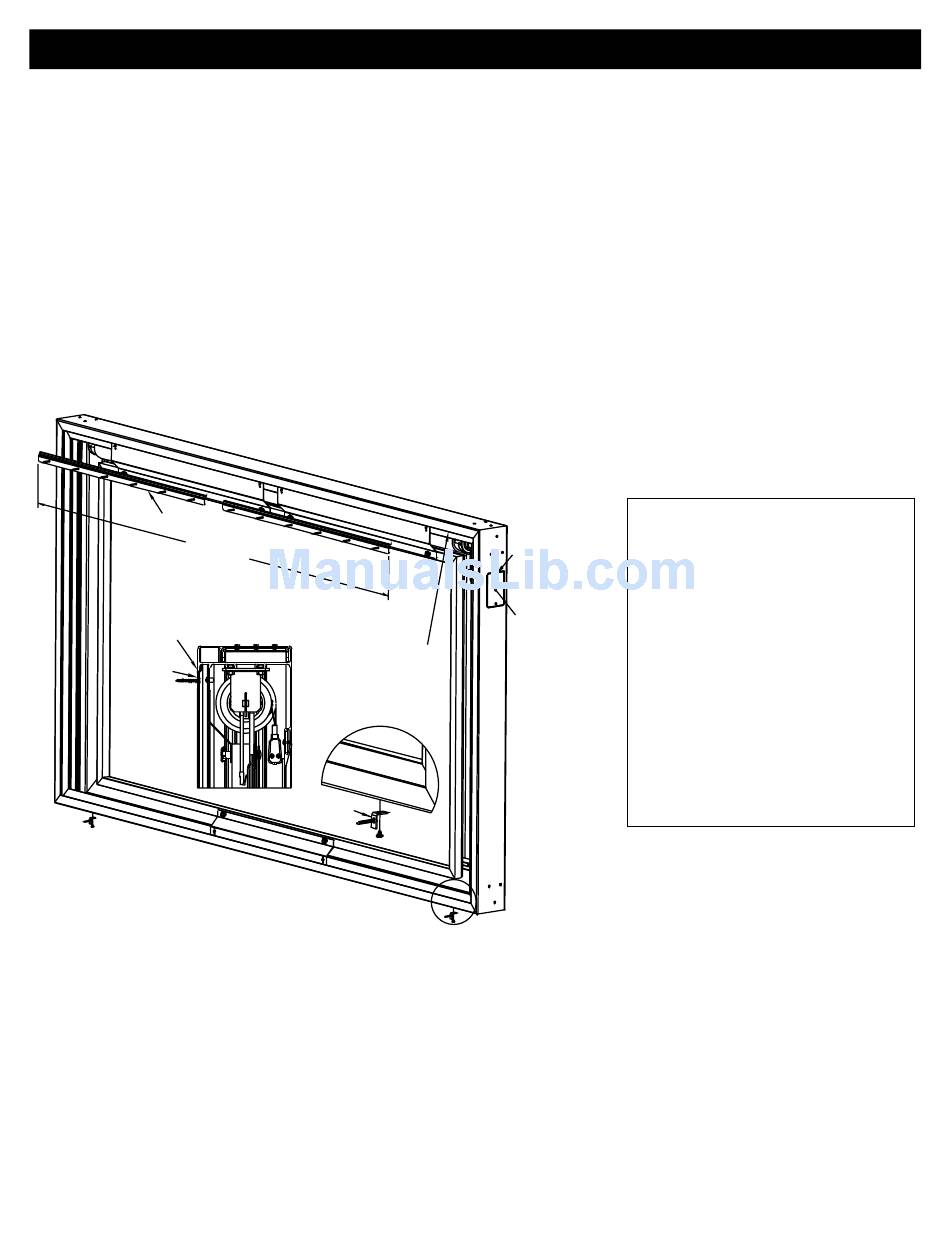

FIGURE 4
ELECTRICAL INSTALLATION
1. Locate and remove junction box cover by removing two black screws as shown on figure 4. Connect electrical
power. Insert cable with RJ-22 jack into splitter located inside junction box, route cable to outside of unit and insert
other RJ-22 jack to the switch.
NOTE: Must be installed in accordance with the requirements of the Local Building Codes, the Canadian Electrical Code (CEC),
CAN/CSA C22.1 and the National Code (NEC), NFPA 70.
2. Test installation by carefully running screen up and down 2-3 times. Be prepared to stop screen. Standard Duty
Cycle: 1 MIN. ON / 3 MIN. OFF
3. CAUTION! Excessive continuous operation may cause overheating. If motor overheats put switch in center-off
position and allow motor to cool for 30 minutes.
⁄ " lag screws (not supplied) to fasten the brackets to wall.
1
2
BACK LIP OF FRAmE
WILL WEDgE DOWN
BETWEEN WALL
BRACKETS AND WALL
SmALL L
BRACKETS (2)
⁄ " sheet metal screws and secure to wall
3
8
BLACK
SCREEN SIZE
SCREWS (2)
106"D HDTV
110"D HDTV
juNCTION
BOx COVER
119"D HDTV
133"D HDTV
159"D HDTV
103"D CS
115"D CS
125"D CS
133"D CS
138"D CS
148"D CS
4
⁄
1
4
BRACKET DISTANCES
FOR STANDARD SIZES
DISTANCE WEIGHT
97" 201 Lbs
101" 207 Lbs
109" 21 Lbs
121" 243 Lbs
144" 284 Lbs
100" 191 Lbs
111" 208 Lbs
120" 223 Lbs
127" 235 Lbs
131" 241 Lbs
141.5" 258 Lbs
TABLE 1
" x
