Da-Lite Multi vision imager Instruction Book page 4

5. Assemble right side of frame to the top and bottom of frame. This is done exactly the same way as the left side.
6. Insert motor phone RJ-45 jack into receptacle located at the top of the junction box. Insert motor cable connector
to the connector located on the side of junction box.
7. Remove the shipping braces by removing #10 x
screws will be used later to "WALL MOUNT" screen to wall. Remove black knobs and shipping braces. Carefully
let the slat rest on the inside of the top frame. Save the knobs, they will be used to attach the Da-Snap frame to
the main frame.
8. Carefully slide the Da-Snap frame inside the main frame as per figure 3. First, slide the bottom of frame under the
bottom bracket, then the top, under the top brackets. Make sure the tensioned screen is not hit by the top of the
Da-Snap frame. Lift Da-Snap frame against the inside top and bottom brackets, align holes and attach with black
knobs.
At this point, preparations are needed to provide electrical power to unit; see "ELECTRICAL INSTALLATION" and wiring
diagrams below.
LEFT OF FRAmE

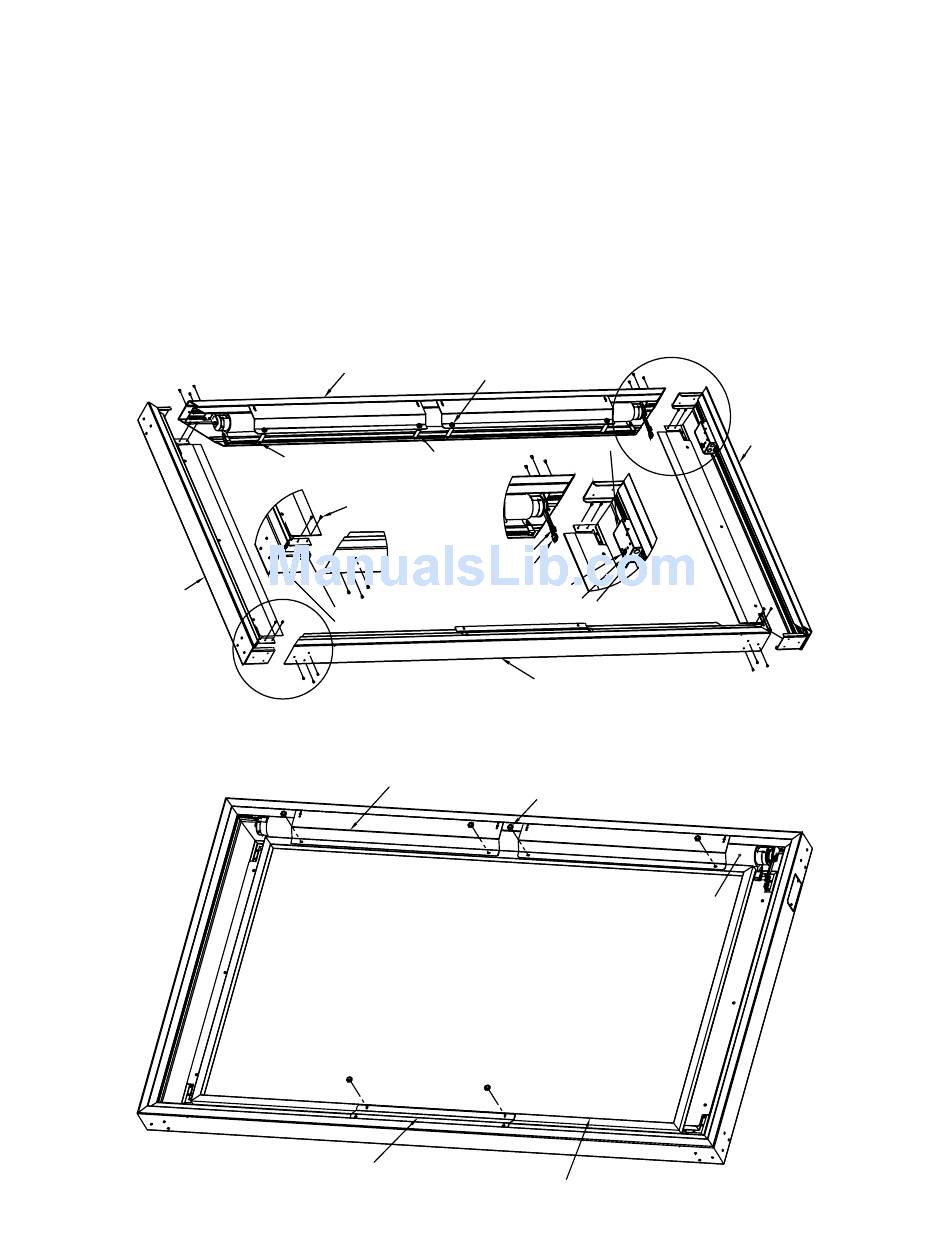

FIGURE 2
FIGURE 3
⁄
3
8
TOP OF FRAmE
ShIPPINg
BRACES (4)
#10x ⁄ " BuTTON
3
8
hEAD SCREW
SmALL L BRACKET
LARgE L BRACKET
TOP BRACKETS (2)
BOTTOm BRACKET
SLIDE ThIS END OF DA-SNAP FRAmE
FIRST, uNDER BOTTOm BRACKET
" sheet metal screws from the aluminum slat. Two of these
BLACK KNOBS (4)
RECEPTACLE
PhONE jACK
CONNECTOR
CONNECTOR
INSTALLATION hOLE
juNCTION BOx
FOR
BOTTOm OF FRAmE
BLACK KNOBS (6)
TENSIONED FABRIC
3
RIghT OF FRAmE
⁄ " CONDuIT
1
2
