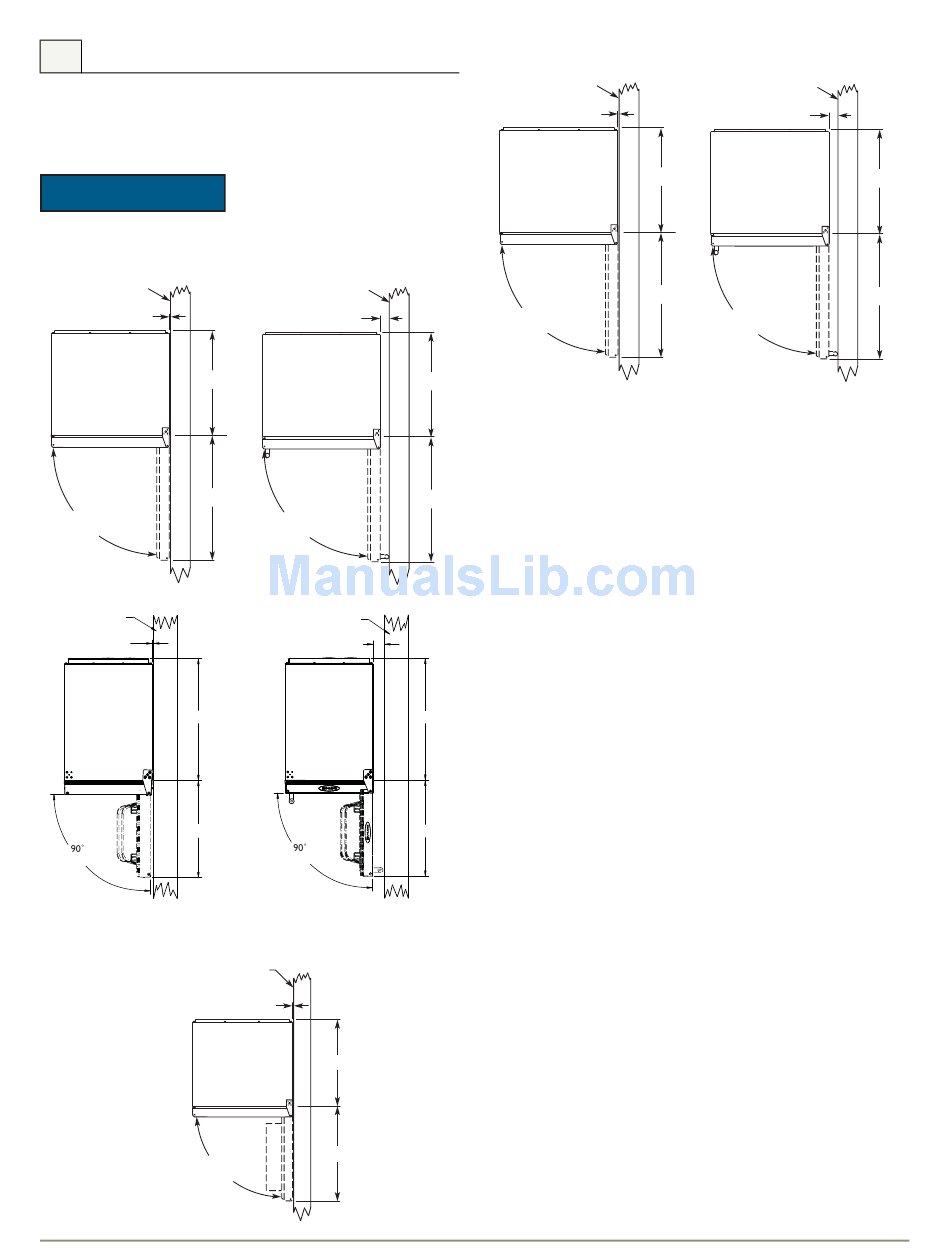

5 Door Swing Dimensions

All units have a zero clearance for the door to open 90°. U-Line
recommends a minimum door clearance of 2" to accommodate
the handle if the unit is installed next to a wall or similar type of
structure.
NOTICE
Non stainless 1175 or 1115 Wine Captain® models must
have a full 135° available for door swing.
1175 & 1075 Series
Wall
1/4" Min.
20-7/8"
25-1/2"
90
Door Swing
(Without Handle)
1115 Series
Wall
1/4" Min.
20-7/8"
16-1/2"
Door Swing
(Without Handle)
90°
Door Swing
6
Wall
2" Min.
90
Door Swing
(With Handle)
Wall
2" Min.
20-7/8"
16-1/2"
Door Swing
(With Handle)
29 Series
Wall
1/4" Min.
20-7/16"
22-3/8"
Wall
1/4" Min.
90
Door Swing
20-7/8"
(Without Handle)

Other Site Requirements

Side-By-Side Installation

25-1/4"
For a complete refreshment center, install two units side by side:
Cut-out width for a side-by-side installation is the total of the
widths listed under Cut-Out Dimensions in each unit's Installation
Guide.
No trim kit is required. However, 1/4-inch space needs to be
maintained between the units to ensure unobstructed door swing.
Units must operate from separate, properly grounded electrical
receptacles placed according to each unit's Electrical Specifications
Requirements

Power Supply

The unit requires a grounded and polarized 115 VAC, 60 Hz, 15A
circuit (normal household current).

Environmental Requirements

The units are designed to operate between 50°F (10°C) and 100°F
(37°C). High ambient temperatures (100°F [37°C] or higher) may
reduce the unit's ability to reach low temperatures.
For best performance, keep the unit out of direct sunlight and away
from heat generating equipment.
In climates where high humidity and dew points are present,
condensation may appear on outside surfaces. This is considered
normal. The condensation will disappear when the humidity drops.
u-line.com
ADA24R(GL)(SB) Series
Wall
2" Min.
21-1/8"
25-5/16"
90
Door Swing
(With Handle)
21-1/8"
25-3/16"
