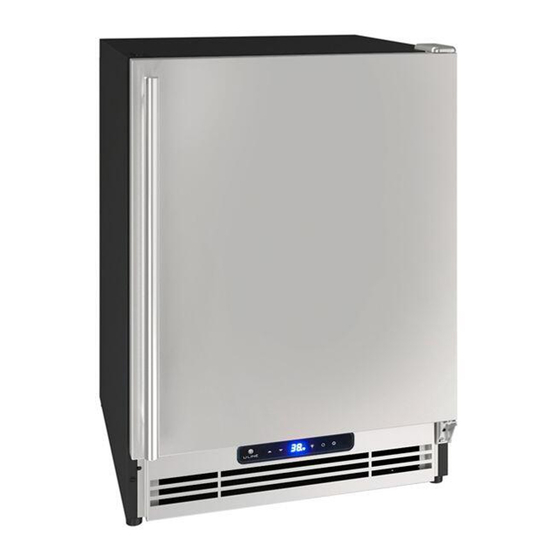

- Page 1 USER GUIDE & SERVICE MANUAL Model: UARI121-SS01A...
-
Page 2: Table Of Contents
USER GUIDE & SERVICE MANUAL Click on any section below to jump directly there Table of Contents Intro Warranty Safety Safety and Warning Disposal And Recycling Installation Environmental Requirements Electrical Cutout & Product Dimensions Water Hookup General Installation Grille Installation Door Swing Door Adjust Interior Adjustments... - Page 3 U-Line Customer Care must be contacted immediately at +1.414.354.0300. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.
-
Page 4: Safety And Warning
USER GUIDE Safety and Warning DANGER NOTICE This unit contains R600a (Isobutane) which is a Please read all instructions before installing, flammable hydrocarbon. It is safe for regular operating, or servicing the appliance. use. Do not use sharp objects to expedite defrosting. -
Page 5: Disposal And Recycling
USER GUIDE Disposal and Recycling DANGER RISK OF CHILD ENTRAPMENT. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so children may not easily climb inside. If the unit is being removed from service for disposal, check and obey all federal, state, and local regulations regarding the disposal and recycling of refrigeration appliances, and follow these steps completely:... -
Page 6: Environmental Requirements
USER GUIDE Environmental Requirements This model is intended for indoor/interior applications only and is not to be used in installations that are open/ exposed to natural elements. This unit is designed to operate between 50°F (10°C) and 100°F (38°C). Higher ambient temperatures may reduce the unit’s ability to reach low temperatures and/or reduce ice production on applicable models. - Page 7 USER GUIDE Electrical WARNING SHOCK HAZARD — Electrical Grounding Required. Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected. Never remove the round grounding prong from the plug and never use a two-prong grounding adapter.
-
Page 8: Cutout & Product Dimensions
PREPARE SITE 20 ⁄ ” Cutout & Product Dimensions (530mm Your U-Line product has been designed for either free- standing or built-in installation. When built-in, your unit PREPARE SITE does not require additional air space for top, sides, or Your U-Line product has been designed for either free- rear. -
Page 9: Water Hookup
The water valve uses a standard 1/4" (6.35 mm) is under pressure at all times. Plastic may crack compression fitting. U-Line recommends using accessory or rupture with age and cause damage to your water hook up kit – part # ULAWATERHOOKUP. The kit home. - Page 10 USER GUIDE 3. Locate water valve inlet. 9. Install retaining clip. 4. Break away filler feature in bushing with flat screwdriver. Remove screwdriver 5. Thread water line through back panel hole (with bushing). 6. Locate water valve inlet and connect to valve. 7.
-
Page 11: General Installation
USER GUIDE General Installation INSTALLATION Plug in the power/electrical cord. LEVELING INFORMATION Gently push the unit into position. Be careful not to NOTICE entangle the cord or water line. Because these units do not have leveling legs, Re-check the leveling, from front to back and side to it is extremely important that they sit on a level side. -
Page 12: Grille Installation
USER GUIDE Grille Installation REMOVING AND INSTALLING GRILLE WARNING Disconnect electric power to the unit before removing the grille. When using the unit, the grille must be installed. Removing the grille Note: Grille and display are attached. The length of the display wire is sufficient to allow access to the front base components. -
Page 13: Door Swing
USER GUIDE Door Swing Wall 2-1/8" Min. (54 mm) 90° Door Swing Units have a zero clearance for the door to open 90°, when installed adjacent to cabinets. Stainless Steel models require 2-1/8" (54 mm) door clearance to accommodate the handle if installed next to a wall. -
Page 14: Door Adjust
USER GUIDE Door Adjustments Remove arrow clips: With a puddy knife or other flat tool, gently pry each DOOR ALIGNMENT AND ADJUSTMENT arrow clip from hinge mounting holes. Align and adjust the door if it is not level or is not sealing Set aside arrow clips to be reused on the opposite properly. - Page 15 USER GUIDE Remove bottom hinge: Remove bottom hinge from cabinet using a 1/4” socket. Remove corresponding screws on opposite side of cabinet. On some models there may be a nut behind one or both screws on either side. Install bottom hinge: Install two or three screws, depending on model.
- Page 16 If the temperature displayed is different than selected, the unit is progressing towards the selected temperature. Time to reach set point varies based upon ambient temperature, temperature of product loaded, door openings, etc. U-Line recommends allowing the unit to reach set points before loading.
- Page 17 USER GUIDE Control Operation CONTROL FUNCTION GUIDE FUNCTION COMMAND NOTES ON/OFF Press and release Unit will immediately turn On or OFF Press and release to leave interior After 12 hours, factory default is restored; light will Leave interior light on light on for 12 hours;...
- Page 18 USER GUIDE CAUTION ICE MAKER OPERATION NEVER use an ice pick, knife or other sharp When the ice bucket is full, the ice making mechanism will instrument to separate cubes. Shake the ice shut off. However, the refrigeration system will continue bucket instead.
- Page 19 USER GUIDE ICE MAKER ADJUSTMENT 3. Turn the adjusting screw toward the minus (-) sign (clockwise) for smaller cubes or toward the plus (+) Ice Cube Thickness Adjustment sign (counterclockwise) for larger cubes. Interval - As Required 4. Install the ice maker assembly cover. On ice maker equipped models, adjust the cube size by changing water amount injected into the ice maker assembly as follows:...
- Page 20 ⁄ ” ⁄ ” (66 mm) (64mm) When determining capacities U-Line uses typical 12 oz. cans, 12 oz. bottles, 750 mL white wine and red wine bottles shown below. ⁄ ” ⁄ ”...
-
Page 21: Interior Adjustments
USER GUIDE Interior Adjustments INTERIOR SHELVES Removing and Installing Interior Shelves For models equipped with glass shelves having recessed shelf supports, remove the shelves as follows: Pull shelf out about 6” (1), until back of shelf clears the “hump” on the right-hand side. Tilt up right-hand edge of shelf (2). -
Page 22: Cleaning
USER GUIDE Cleaning To clean integrated panels, use household cleaner per the cabinet manufacturer’s recommendation. Stainless Models Stainless door panels and handles can discolor when INTERIOR CLEANING exposed to chlorine gas, pool chemicals, saltwater or Disconnect power to the unit. cleaners with bleach. - Page 23 USER GUIDE NOTICE The drain pan was not designed to capture the water created when manually defrosting. To prevent water from overflowing the drain pan and possibly damaging water sensitive flooring, the unit must be removed from cabinetry. To defrost: 1.
-
Page 24: Cleaning Condenser
USER GUIDE USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE Cleaning Condenser INTERVAL - EVERY SIX MONTHS To maintain operational efficiency, keep the front grille free of dust and lint, and clean the condenser when necessary. -
Page 25: Extended Non-Use
USER GUIDE Extended Non-Use For questions regarding winterization, please call VACATION/HOLIDAY, PROLONGED SHUTDOWN U-Line at 414.354.0300. The following steps are recommended for periods of extended non-use: CAUTION Remove all consumable content from the unit. Damage caused by freezing temperatures is not covered by the warranty. -
Page 26: Wire Diagram
USER GUIDE Wire Diagram Wire Diagram... - Page 27 USER GUIDE Parts SUARI121-SS01A Item Description U-Line P/N BACK PANEL RI121 80-55660-02 COMPRESSOR EM2C46CLC,115V,R600 80-55658-11 CONDENSER ASSEMBLY 80-55660-03 CONDENSER FAN W/SCREWS 80-54014-00 DISPLAY ASSEMBLY 80-55660-04 DOOR ASSEMBLY, SS 430 80-55660-05 DRAIN PAN 80-54217-00 DRAIN PAN, EVAP 80-54361-00 DRIER 80-54055-00 EVAPORATOR ASSEMBLY W/HEATER 80-55583-00...
- Page 28 For products installed and used for normal residential use, material cosmetic defects are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line.
