Gefen EXT-WRS232 User Manual

Wireless rs232 extender
Hide thumbs Also See for EXT-WRS232:

Advertisement

Quick Links

Wireless RS232 Extender
EXT-WRS232
User Manual
Release A8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-WRS232 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gefen EXT-WRS232

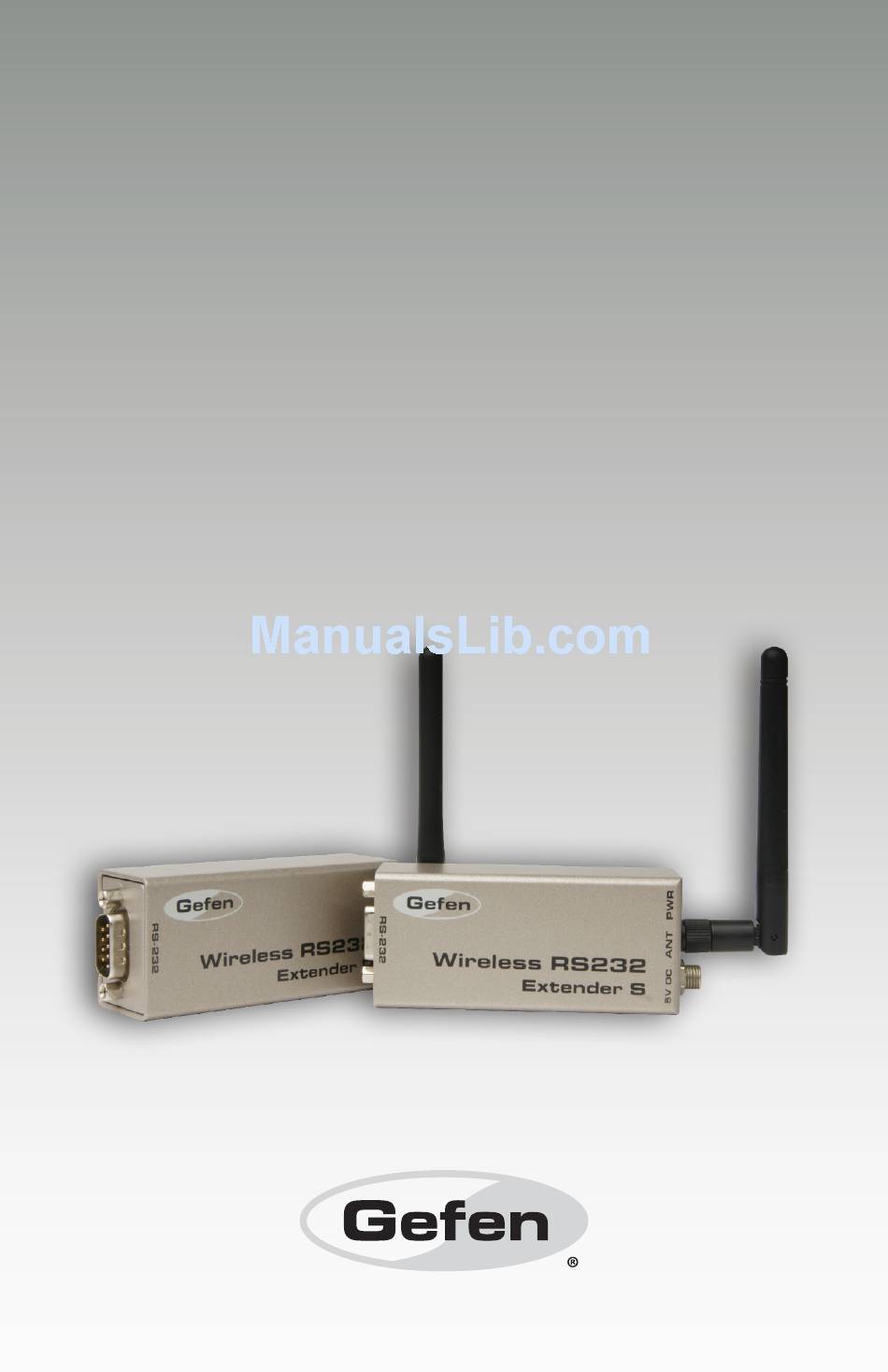

  • Page 1 Wireless RS232 Extender EXT-WRS232 User Manual Release A8...
  • Page 2: Important Safety Instructions

    Wireless RS232 Extender Important Safety Instructions GENERAL SAFETY INFORMATION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 3: Warranty Information

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
  • Page 4 8:00 AM to 5:00 PM Monday - Friday, Pacific Time Wireless RS232 Extender is a trademark of Gefen, LLC. Important Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. © 2010 Gefen, LLC. All Rights Reserved.
  • Page 5: Fcc Statement

    3GSDI Audio Embedder Wireless RS232 Extender Operating Notes FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation INSTRUCTIONS TO THE USER This equipment has been tested and found to comply with the limits for a class B digital...
  • Page 6 3GSDI Audio Embedder Wireless RS232 Extender Operating Notes Industry Canada (IC) Statement Applicant’s Name: Gefen, LLC Manufacturer’s Trade Name: Gefen Model / IC ID Numbers: EXT-WRS232R (IC:9057A-EXTWRS232R) EXT-WRS232S (IC:9057A-EXTWRS232S) The wireless radio of this device complies with IC RSS-210 Industry Canada. Operation is...
  • Page 7 3GSDI Audio Embedder Wireless RS232 Extender Operating Notes Important Operating Information • The Wireless RS232 Extender is capable of operating at a baud rate of either 9600 or 19200. See Setting the Baud Rate for details on setting the correct baud rate for the RS-232 device.
  • Page 8: Packing List

    Packing List The Wireless RS232 Extender ships with the items listed below. If any of these items are not present in your box when you first open it, immediately contact your dealer or Gefen. • 1 x Wireless RS232 Extender (Sender unit) •...
  • Page 10: Table Of Contents

    3GSDI Audio Embedder Wireless RS232 Extender Table of Contents Getting Started Panel Layout ......................2 Sender unit ....................2 Receiver unit ....................4 Installation ......................6 Connecting the Wireless RS232 Extender ............ 6 Sample Wiring Diagram ................6 Operating the Wireless RS232 Extender Configuration .......................
  • Page 13: 01 Getting Started

    Wireless RS232 Extender 01 Getting Started Panel Layout ......................2 Sender unit ....................2 Receiver unit ....................4 Installation ......................6 Connecting the Wireless RS232 Extender ............ 6 Sample Wiring Diagram ................6...
  • Page 14: Panel Layout

    Getting Started Panel Layout Sender unit page | 2...
  • Page 15 Getting Started Panel Layout Name Description RS-232 Connect an RS-232 cable from the RS-232 host to this port. Receives data from the Receiver unit. 5V DC Connect the included 5V DC power supply to this power receptacle. This LED indicator will glow bright green when the included 5V DC power supply is connected between the power receptacle and an available electrical outlet.
  • Page 16: Receiver Unit

    Getting Started Panel Layout Receiver unit page | 4...
  • Page 17 Getting Started Panel Layout Name Description RS-232 Connect an RS-232 cable from the RS-232 client to this port. Receives data from the Sender unit. 5V DC Connect the included 5V DC power supply to this power receptacle. This LED indicator will glow bright green when the included 5V DC power supply is connected between the power receptacle and an available electrical outlet.
  • Page 18: Installation

    Refer to the Configuration section on how to set the baud rate and using the tact switches for configuring RS-232 device assignment. Sample Wiring Diagram RS-232 CABLE Computer Wireless extension up to 100 feet. Receiver Sender RS-232 Peripheral EXT-WRS232 page | 6...
  • Page 21: Operating The Wireless Rs232 Extender

    Wireless RS232 Extender 02 Operating the Wireless RS232 Extender Configuration ....................... 10 Setting the Baud Rate ................. 10 Wireless RS-232 Extender Network Configurations ........10 Using Multiple Sender Units ................ 11 Using Multiple Receiver Units ..............12 Using Multiple Sender / Receiver Pairs ............13 Erasing the Electronic Serial Numbers (ESNs) ...........
  • Page 22: Configuration

    Operating the Wireless RS232 Extender Configuration Setting the Baud Rate RS-232 devices will function at different baud rates. It is important that the correct baud rate be set on both the Wireless RS-232 Sender unit and Wireless RS-232 Receiver unit to establish successful communication between the RS-232 controller (host) and the RS-232 device you wish to manage (client).
  • Page 23: Using Multiple Sender Units

    Operating the Wireless RS232 Extender Configuration Using Multiple Sender Units Diagram 2.1 - Controlling an RS-232 device (client) from multiple locations. Receiver Unit Wireless extension up to 100 feet. Sender Units Using the DIP switch chart as a guide, set DIP switch 2 to the baud rate used by the devices you wish to control.
  • Page 24: Using Multiple Receiver Units

    Operating the Wireless RS232 Extender Configuration Using Multiple Receiver Units Diagram 2.2 - Controlling multiple RS-232 devices (client) from a single location. Sender Unit Receiver Units Wireless extension up to 100 feet. Using the DIP switch chart set DIP switch 2 to the correct baud rate used by your RS-232 devices.
  • Page 25: Using Multiple Sender / Receiver Pairs

    Operating the Wireless RS232 Extender Configuration Using Multiple Sender / Receiver Pairs Diagram 2.3 - Assigning each RS-232 device with its own Sender and Receiver. Sender Units Wireless extension up to 100 feet. Receiver Units Using the DIP switch chart as a guide, set DIP switch 2 to the correct baud rate used by each RS-232 device.
  • Page 26: Erasing The Electronic Serial Numbers (Esns)

    Operating the Wireless RS232 Extender Configuration Erasing the Electronic Serial Numbers (ESNs) In order to remove a Receiver unit and place it within another RS-232 wireless network, ESNs cannot be deleted individually. The entire list of “learned” ESNs must be cleared. To clear the ESN list, hold down the L-Tact button on the Receiver unit for 10 seconds.
  • Page 29: 03 Appendix

    Wireless RS232 Extender 03 Appendix Specifications ...................... 18...
  • Page 30: Specifications

    Appendix Specifications Electrical RF Band • 2.4 GHz Pair Button (Sender) • 2 x Tact-type Pair Button (Receiver) • 2 x Tact-type Connectors RS-232 (Sender) • 1 x DB-9, male RS-232 (Receiver) • 1 x DB-9, female Operational Power Input (Sender / Receiver) •...
  • Page 32 Stretch it, Switch it, Split it, Control it. Gefen’s got it. ® 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL or CE listed power supplies.
