Technical Support:
Telephone
(818) 884-6294
(800) 545-6900
Fax
(818) 884-3108
Technical Support Hours:
9:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
C/O Customer Service
6265 Variel Ave.
Woodland Hills, CA 91367-9897
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
Macintosh is a trademark of Apple Computer Inc.
ASKING FOR ASSISTANCE
Notice
CAT5•1000 is a trademark of Gefen Inc.
© 2003 Gefen Inc., All Rights Reserved
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gefen extendit series CAT5 1000S
Summary of Contents for Gefen extendit series CAT5 1000S
- Page 1 6265 Variel Ave. Woodland Hills, CA 91367-9897 Notice Gefen Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. CAT5•1000 is a trademark of Gefen Inc. Macintosh is a trademark of Apple Computer Inc.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Box Contents How it works Operation Notes CAT5•1000S Front Panel Layout CAT5•1000S Send Unit Back Panel CAT5•1000S Back Panel Function Descriptions CAT5 Cable Length Setup CAT5•1000R Front Panel Layout CAT5•1000R Back Panel Layout CAT5•1000R Back Panel Functions Link Cable - Wiring Diagram CAT5•1000 Wiring Diagram System Specifications... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the new ex•tend•it CAT5•1000 series. The ex•tend•it CAT5•1000 allows users the benefits of extending VGA, USB, and audio signals beyond the desktop. In a growing number of applications, broadcast stations and production facilities there is a need to control a computer remotely. The keyboard, mouse, and video monitor are relocated to the remote side. -
Page 4: Box Contents
BOX CONTENTS The CAT5•1000 system consists of: (1) CAT5•1000S sender unit (1) CAT5•1000R receiver unit (2) 5 VDC power supply (1) Video cable (6 FT) (1) USB cable (6 FT) (1) Audio cable (6 FT) (1) User Manual... -
Page 5: How It Works
HOW IT WORKS In its most basic application, the CAT5•1000S sender unit resides next to the computer. With the supplied VGA, USB, and audio cables, they connect the computer to the CAT5•1000S sender unit. The CAT5•1000R receiver unit and USB peripherals are placed next to the mon- itor. -
Page 6: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE CAT5•1000 SYSTEM * Industry standard Category-5 (CAT-5) cables are used to link the CAT5•1000 sender and receiver boxes together. * When two monitors are used in the local and remote locations, the video monitors must be a multi-resolution type. -
Page 7: Cat5•1000S Front Panel Layout

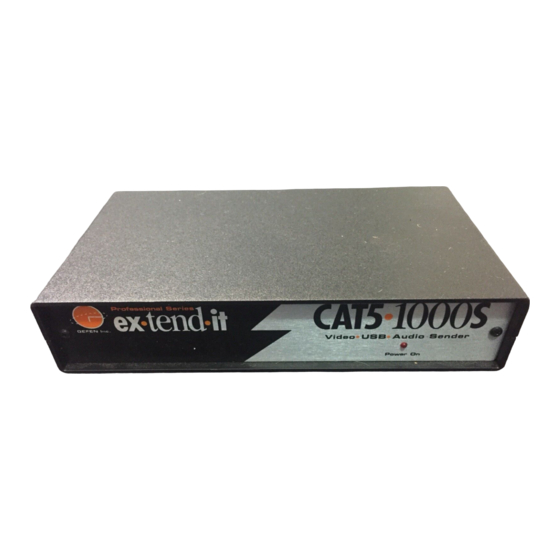

CAT5•1000S FRONT PANEL LAYOUT Front Panel Function Descriptions POWER ON INDICATOR - Indicates that the unit is plugged in and powered on... -
Page 8: Cat5•1000S Send Unit Back Panel
CAT5•1000S SEND UNIT BACK PANEL... - Page 9 CAT5•1000S BACK PANEL FUNCTIONS POWER - 5 VDC external power supply MONITOR OUT - HD15 output connects to the monitor for local video VIDEO IN - HD15 input from computer CAT-5 VID/AUD/USB - RJ-45 input extends VGA, USB, and audio signals with CAT-5 cable AUDIO - Audio mini Jack input from computer USB IN - USB Input from computer...
-
Page 10: Cat5•1000R Front Panel Layout
CAT5•1000R FRONT PANEL LAYOUT Front Panel Function Descriptions BRIGHTNESS - Adjusts the brightness for monitor 1 POWER ON INDICATOR - The red LED indicates that the unit is powered on... -
Page 11: Cat5•1000R Back Panel Layout
CAT5•1000R BACK PANEL LAYOUT... -
Page 12: Cat5•1000R Back Panel Functions
CAT5•1000R BACK PANEL FUNCTIONS POWER - 5 VDC external power supply VIDEO OUT 1 - HD15 output connecting to the video monitor VIDEO OUT 2 - HD15 output connecting to the video monitor (mirrored video) AUDIO - Audio Mini Jack 4 USB OUT - USB Outputs (Type A) - Connects to USB devices NOT USED CAT-5 VID/AUD/USB - RJ-45 input connects CAT-5 cable to receive... - Page 13 CAT5 CABLE LENGTH SETUP Jumper settings are used to set the focus of the picture and characters to the best possible sharpness. The jumpers in the CAT5•1000R are set at the factory as shown in the diagram below. The first step to adjusting the video is to have the CAT5•1000S and CAT5•1000R connected together with the CAT-5 cable that is going to be used in the installation.
-
Page 14: Link Cable - Wiring Diagram
LINK CABLE - WIRING DIAGRAM... -
Page 15: Cat5•1000 Wiring Diagram
CAT5•1000 WIRING DIAGRAM... -
Page 16: Specifications
SPECIFICATIONS Video Amplifier Bandwidth .................. 350 MHz Actual Bandwidth .........,............120 MHz Input Video Signal ..................1.2 Volts p-p Input Sync Signal ................... 5 Volts p-p (TTL) Horizontal Frequency Range ................15-70 KHz Vertical Frequency Range ................30 - 170 Hz Video In........................ -
Page 17: Warranty
If equipment fails because of such defects and Gefen Inc. is notified within one (1) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
