6.3.3 Jumper pin assignment

There are four jumper settings as shown in the following sections:
16 logical head default (normal use)
15 logical head default
2 GB/32 GB clip
Power up in standby
Within each of these four jumper settings the pin assignment selects Device 0, Device 1, Cable Selection,
or Device 1 Slave Present as shown in the following figures.
The Device 0 setting automatically recognizes device 1 if it is present.
The Device 1 Slave Present setting is for a slave device that does not comply with the ATA specification.
Note: In conventional terminology "Device 0" designates a Master and "Device 1" designates a Slave.
RSV
I

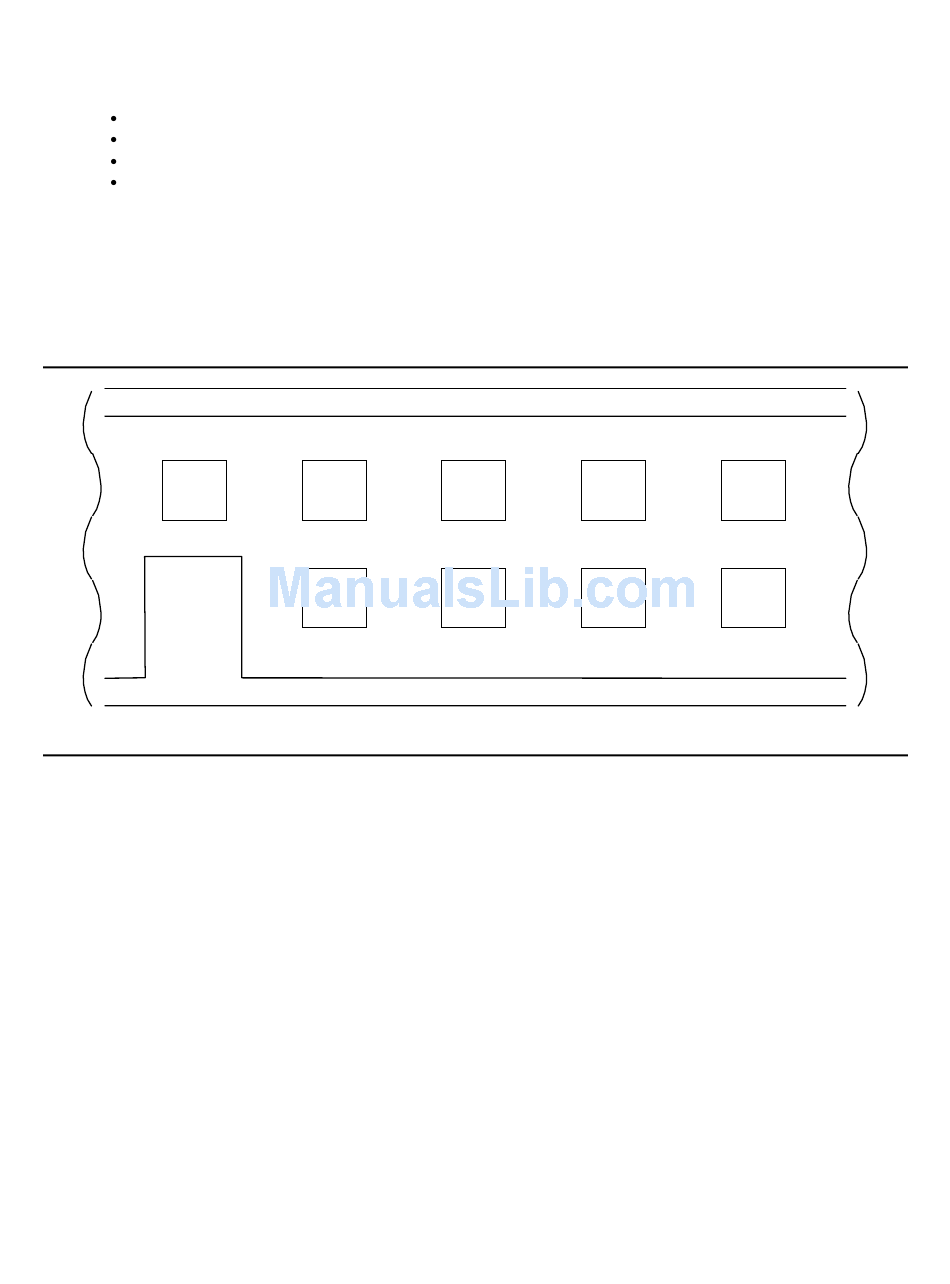

Figure 46. Jumper pin assignment

GND GND
G E
F
H
DS CS/SP
Deskstar 180GXP hard disk drive specifications
40
GND RSV
C A
D B
GND
RS V
