Installation
Instructions
If you have questions, call 1.800.GE.CARES or visit our website at:
GEAppliances.com

Before You Begin

Read these instructions carefully and completely.
IMPORTANT
instructions for local inspector's use.
IMPORTANT
governing codes and ordinances.
• Note to Installer—Be sure to leave these
instructions with the consumer.
• Note to Consumer—Keep these
instructions for future reference.

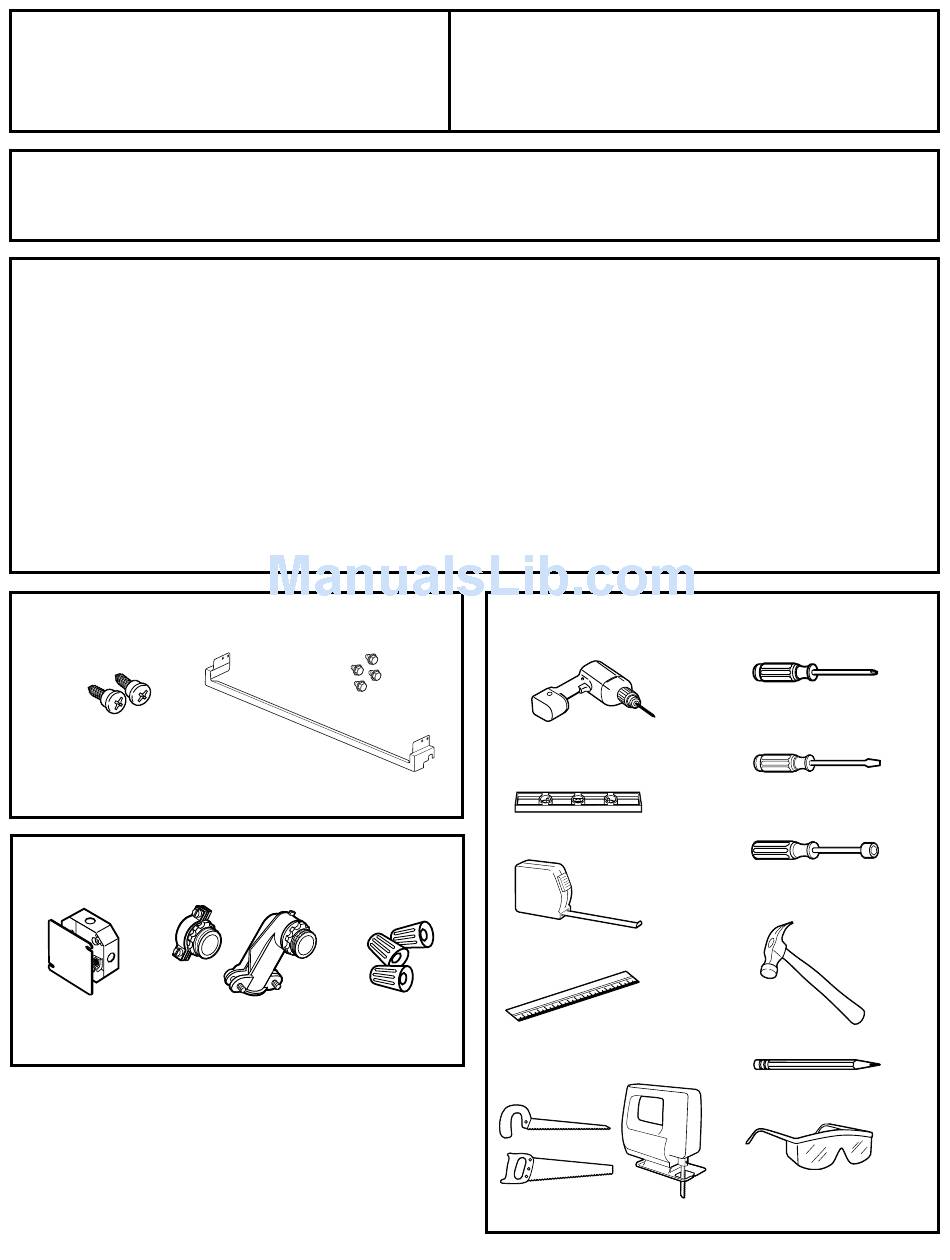

Parts Included
2 Shoulder Screws (for
stop device)
Materials Needed
Junction Box
Strain Relief Clamp for
1/2" conduit
31-10622-3
02-10
—Save these
—Observe all
Lower Trim
4 Screws
Wire Nuts
Self-Cleaning Radiant
Electric Drop-In Range
JDP47, JD968, JD900, PD900, PD968
• Proper installation is the responsibility
of the installer and product failure due
to improper installation is NOT covered under
the warranty.
• NOTE—This appliance must be properly
grounded.
ATTENTION INSTALLER
All electric drop-in ranges must be hard wired
(direct wired) into an approved junction box. A
plug and receptacle is NOT permitted on these
products.

Tools You Will Need

1/8" Drill Bit and Electric
or Hand Drill
Level
Tape Measure
Straight Edge
or Square
Hand or Sabre Saw
1
Phillips Screwdriver
Standard Screwdriver
Nut Driver
Hammer
Pencil
Safety Glasses

Advertisement

Table of Contents
loading

Summary of Contents for GE PD900

  • Page 1: Installation Instructions

    2 Shoulder Screws (for stop device) Materials Needed Junction Box Strain Relief Clamp for 1/2” conduit 31-10622-3 02-10 Self-Cleaning Radiant Electric Drop-In Range JDP47, JD968, JD900, PD900, PD968 • Proper installation is the responsibility of the installer and product failure due to improper installation is NOT covered under the warranty. • NOTE—This appliance must be properly grounded. ATTENTION INSTALLER • All electric drop-in ranges must be hard wired (direct wired) into an approved junction box. A...
  • Page 2: Important Safety Instructions

    Failure to wire your range according to governing codes could result in a hazardous condition. If there are no local codes, your range must be wired and fused to meet the requirements of the National Electrical Code, ANSI/NFPA No. 70–Latest Edition. You can...
  • Page 3: Pre-Installation Checklist

    NOTE: The oven door is very heavy. Be sure you have a firm grip before lifting the oven door off the hinges. Use caution once the door is removed. Do not lay the door on its handle. This could cause dents or scratches. Remove packing materials. Remove labels on door, plastic on trims and panel, and all tape around the range. Hinge Lock (Unlocked Position) Hinge Slot Hinge Arm Hinge Clears Slot...
  • Page 4 Pre-Installation Cutout and Required Clearances NOTE: Drop-In Ranges are designed to hang from the countertop only. Do not install on a platform or support rails. If cabinets are placed less than 30” min. above the range, see alternate construction. 30” ranges conform to U.L. requirements for 0” spacing from vertical walls below countertops. Allow 1/4” minimum clearance at the back wall above the countertop.
  • Page 5: Standard Installation

    Standard Installation Preparation STANDARD INSTALLATION 9/16” Min. Flat 29-15/16”– 30-1/16” Smooth Cut The Standard Installation of this Drop-In Range is to hang by the countertop on the side metal flanges under glass cooktop. This Range must not be installed on a base or sub structure (2”x 4” support). If the construction of your cabinet cannot provide a 1/4” flat area at the back of the countertop opening, consider changing the countertop to accommodate this dimension.
  • Page 6: C Electrical Connections

    Position the range in front of the opening, but slightly to the side, in a manner so that a person can enter the opening to wire the range to the house wiring in the junction box. Feed wires and conduit through the open hole and snap the conduit fitting into the hole.
  • Page 7 Connect the oven red lead to the branch circuit red lead, and the oven black lead to the branch circuit black lead in accordance with local codes, using wire nuts. If the residence red, black or white leads are aluminum conductors, see “WARNING” note (See page 6). Range Conduit Snaps Into Box Ground and Neutral Wires Neutral Bare Wire (White) Connection NEW CONSTRUCTION AND FOUR-CONDUCTOR BRANCH CIRCUIT CONNECTION • W hen installing in new construction, or...
  • Page 8 Installation Instructions Electrical Connections cont. Reinstall Junction box cover. Do not shorten the flexible conduit. The conduit strain relief clamp must be securely attached to the junction box and the flexible conduit must be securely attached to the clamp. If the flexible conduit will not fit within the junction box, do not install the oven until a clamp of the proper size is obtained. NOTE TO ELECTRICIAN: The 3 power leads supplied with this appliance are UL recognized for connection to larger gauge household wiring. The insulation of these 3 leads is rated at temperatures much higher than the temperature rating of household wiring.
  • Page 9 Interior Wall Non-Kit Application Glass Maintop Attachment Position #5 Non-Kit Ap- plication Anti-Tip Bracket *Attachment To Engage Bracket By 1/2” Min. 4 For 3.5” 5 Alternate (shown below) Anti-Tip Bracket Location (Rear of Range) ALTERNATE Wall Stud Countertop Surface 10-3/8” Wire Cover 1-1/2” Attachment Anchored To Wall Stud Is Required (Continued on following page)
  • Page 10 Range with the countertop. Countertop Gap Approx. 4” Remove the Protective Channels (if provided) Carefully remove the protective channels from the sides of the glass cooktop. This may require a slight lifting of the range to remove the weight of the range from the protective channels. Glass Cooktop Remove Protective Cover From Both Sides After Range Is In Cabinet cont. Gap Approx. 4” Protective Cover...
  • Page 11 1/2” to clear the stop screw located in the sides of the cabinet. Slide the range until the range is seated into the opening. Lower the front of the range onto the countertop.
  • Page 12 Close the oven door. Check for Proper Installation of Anti-Tip Bracket Lower the oven door and gently apply medium force at the handle end until movement of the range is detected. Con- tinue pressing until the anti-tip bracket is engaged and movement stops. A small amount of movement is acceptable at the back of the range top, but it should be stable and not tip once the anti-tip bracket is engaged.
  • Page 13: Installation Instructions

    Final Checklist Check to make sure the circuit breaker is closed (Reset) or the circuit fuses are replaced. Be sure power is in service to the building. Check to be sure that all packing materials and tape on metal panel (if applicable) under control knobs and drawer have been removed. Operation Checklist Check to make sure the Clock display is energized. If a series of horizontal red lines appear in the display, disconnect power immediately. Recheck the range wiring connections. If change is made to connections, retest again. If no change is required, have building wiring checked for proper connections and voltage. It is recommended that the clock be changed if the red lines appear. Push down and turn any one of the four surface knobs to “MED” setting to observe that the element glows within 15 seconds. Turn the knob off when glow is detected. If the glow is not detected within the time limit, recheck the range wiring connections. If change is required, retest again. If no change is required, have building wiring checked for proper connections and voltage.
  • Page 14 When installing in an island or other non-standard location, countertop cutout dimensions must be according to page 5. For the anti-tip bracket instructions, see page 9. In this application, do not use Backguard Kit (JXS36XX or JXS39SS). Cabinets Over The Range Less Than 30” If a 30” clearance between cooking surface and overhead combustible material or metal cabinets cannot be maintained, protect the underside of the cabinets above the cooktop with not less than 1/4”...
  • Page 15 NOTES...
  • Page 16 NOTES 31-10622-3 02-10...
