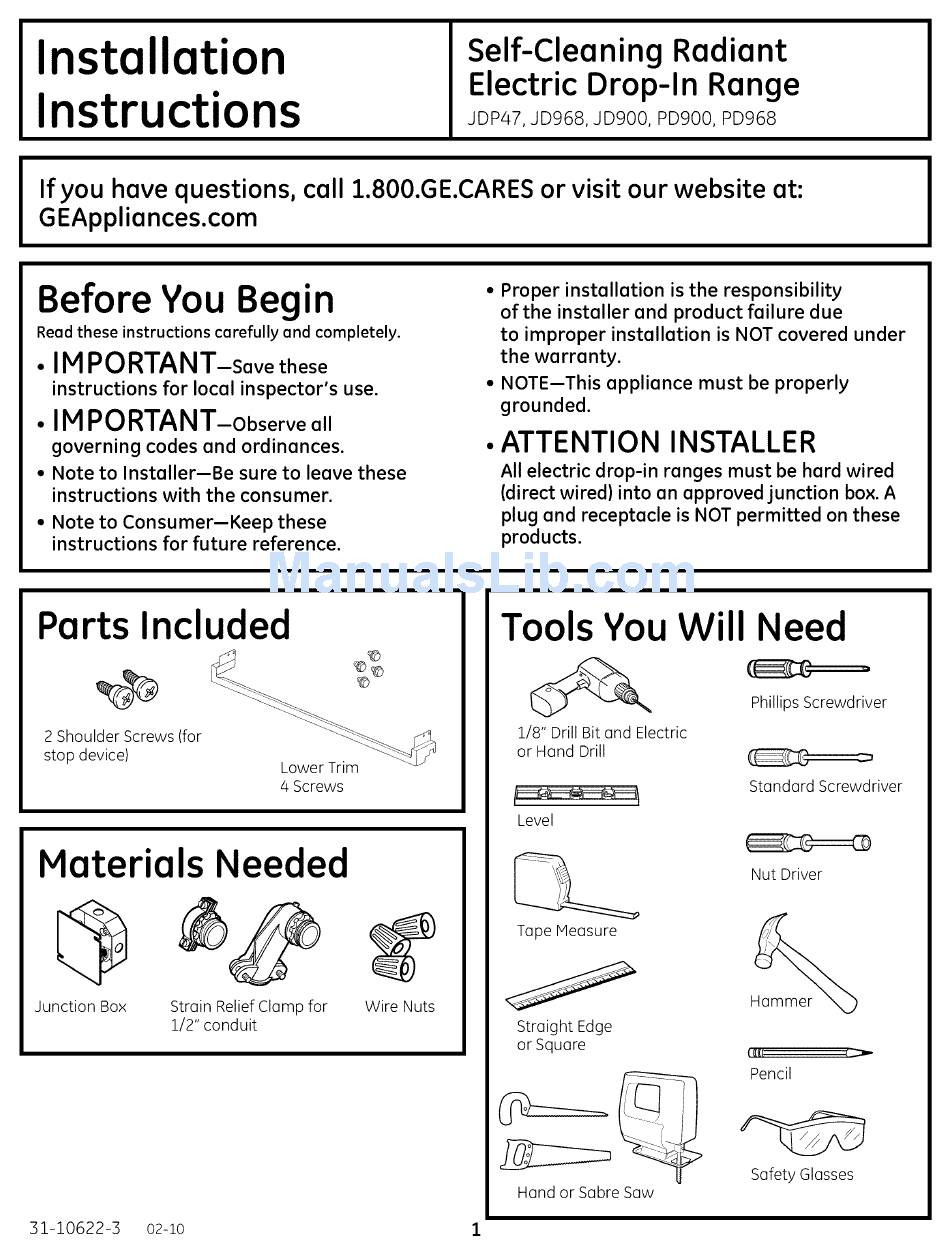

Installation Self-Cleaning Radiant Electric Drop-In Range Instructions JDP47, JD968, JD900, PD900, PD968 If you have questions, call 1.800.GE.CARESor visit our website at: GEAppliances.com Before You • Proper installation is the responsibility Begin of the installer product failure Read these instructions carefully and completely.
Installation Instructions IMPORTANT SAFETY INSTRUCTIONS We recommend you have the electrical wiring For Your Safety and hookup of your range connected by a qualified electrician. After installation, have the electrician show you where your main range disconnect is located. Check with your local utilities for electrical codes which apply in your area.
Page 3
To obtain Kits: emove packing materials. Remove labels a. Visit GE Web Site (See page 1) on door, plastic on trims and b. Call GE Answer Center (See page 1) panel, and all tape around the range.
Page 4
Installation Instructions Pre-lnstallation Cutout and Required Clearances Overall Depth 26 112" NOTE: Drop-In Ranges are designed to hang from the countertop only. Do not install a platform or support rails. Protective Strips (If Supplied) Follow instructions packaged with alternate appliances. Front (24"...
Installation Instructions Standard Installation Preparation STAN DARD INSTALLATION 1/4" Min. Flat 23-3/16" 9/16" Min. Flat _ 29-15116"- 30-i116" Smooth Countertop Braces secured between underside of the countertop the cabinet if required to obtain 1-114" minimum thickness (two sides) Center the 30" wide opening over the ad- The Standard Installation of thisDrop-ln jacent cabinets and mark with a straight Range is to hang by the countertop on the...
Page 6
Installation Instructions Icl Electrical Connections Remove house fuse or open circuit breoker. WARNING: Improper Loosen screws for the junction box cover connection of aluminum house and rotate out of place or remove the cover. Exomine the junction box Iocotion to determine the best routing of the conduit, ond select the best ovoiloble 7/8"...
Page 7
Installation Instructions Icl Electrical ConnectionS con . THREE-CONDUCTOR BRANCH NEW CONSTRUCTION AND CIRCUIT CONNECTION FOUR-CONDUCTOR BRANCH CIRCUIT CONNECTION When connecting to a 3-conductor branch cir- cuit, if local codes permit: • When installing in new construction, • When installing oven in a mobile home or Connect the bare oven ground recreational vehicle, or...
Page 8
Installation Instructions Icl Electrical ConnectionS con . Reinstall Junction box cover. Do not shorten the flexible conduit. The conduit strain relief clamp must be securely attached the junction box and the flexible conduit must be securely attached to the clamp. If the flexible conduit will not fit within...
Page 9
Installation Instructions IDIStandard Installation Instructions Installing the Anti-Tip Bracket Select the proper position for the countertop thickness and move bracket to proper position. The anti-tip bracketisattachedto (Unit is supplied with bracket in position the back of the Drop-ln Range. It is (_) For 3/4"...
Page 10
Installation Instructions ID]Standard Installation Instructions con,. Install Stop Screw Placing the Range into the Opening (Continued) These screws prevent the range from sliding out of position during operation. Carefully slide the range toward the back of the opening. Stop pushing the Range when there is still o 4"...
Page 11
Installation Instructions [-61 Standard Installation Instructions on,. Attach the Lower Trim Check For Proper Installation the Stop Screw Attach the lower trim (supplied separately with the range) to the bottom of the Look at both sides of the range under the vertical side trim with the/4 screws door.
Page 12
Installation Instructions ID]Standard Installation Instructions on, Replacing the Oven Door Push the hinge locks up against the front frame of the oven cavity, to the locked position. Hinge in need help lifting the door high enough to Locked Position slide it into the hinge slots. Do not lift the NOTE: The oven door is heavy.
Installation Instructions Final Checklist Check to make sure the circuit breaker is closed (Reset) or the circuit fuses are replaced. Be sure power is in service to the building. Check to be sure that all packing materials and tape on metal panel (if applicable) under control knobs and drawer have been removed.
Installation Instructions Alternate Construction Preparation Island Installation Optional Maintop Filler or Back- guard Kit When installing in an island or other non-standard location, countertop cutout If counter opening extends to the wall, it will dimensions must be according to page S. require Maintop Filler Kit (JXS66XX) or Back- guard Kit (JXS36XXor JXS39SS)to close the For the anti-tip bracket instructions, see...
