Installation Instructions
D

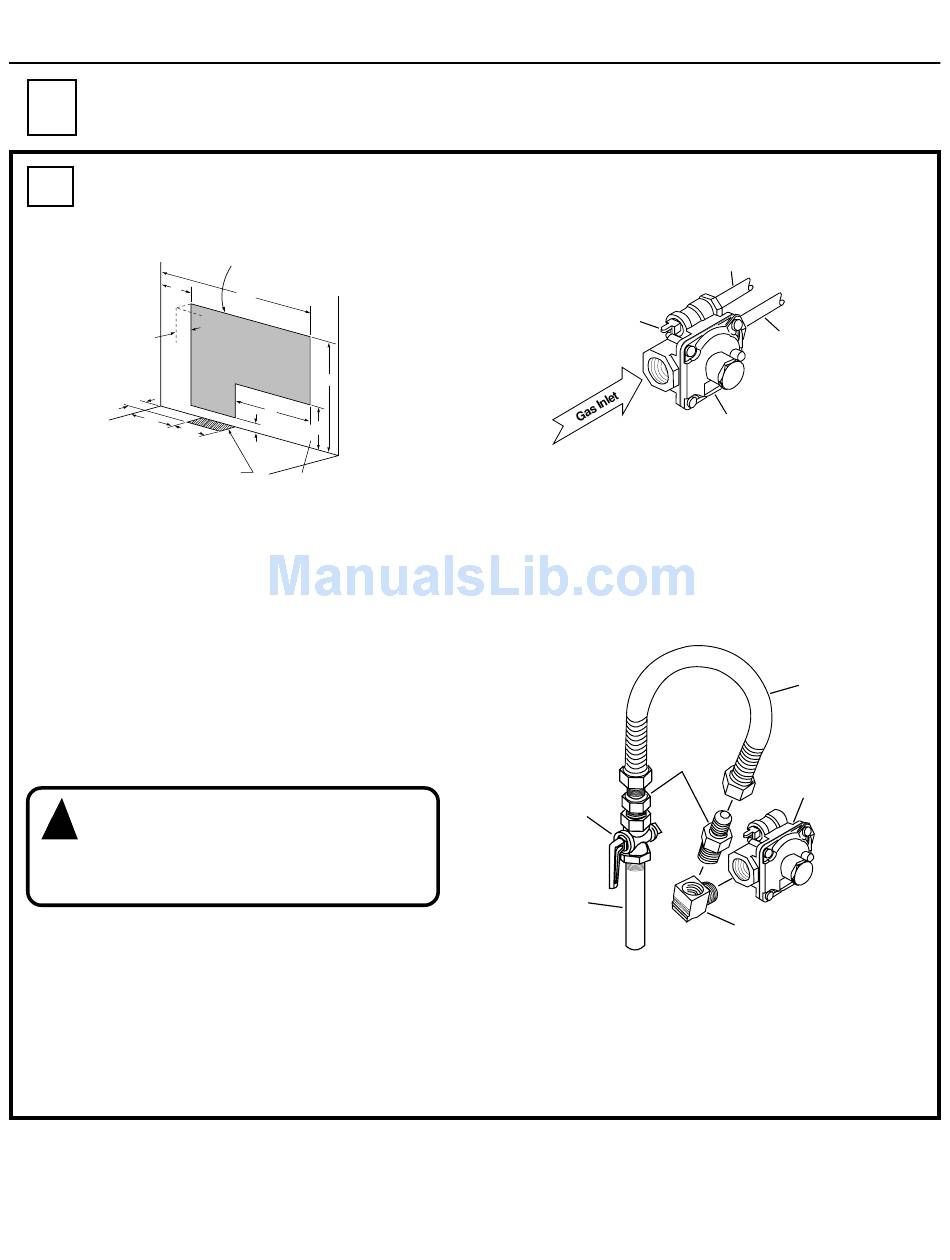

Gas Connections

D1
Making the Connections
Recommended area for 120V outlet on rear
wall and aea for through the wall connection
of pipe stub and shut-off valve
5"
2 1/2"
2 1/2"
7"
5 1/2"
Recommended area for
through the floor connection
of pipe stub and shut-off valve
1. Install a manual shut-off valve in the gas
supply line in an easily accessible location.
2. Know how and where to shut off the gas
supply to the range.
3. Shut off gas supply before removing an old
range. Leave it off until hookup of new range
is finished.
4. Because solid pipe restricts moving the
range, we recommend use of an A.G.A.
certified metal appliance connector.
NEVER REUSE AN OLD CONNECTOR WHEN
INSTALLING A NEW RANGE.
WARNING:
connectors. The use of old flexible
connectors can cause gas leaks and
personal injury. Always use new flexible
connectors when installing a gas appliance.
25"
18"
12 1/2"
7"
1 1/2"
Anti-Tip location
Never reuse old flexible
5. Before making gas connections, make sure
that the oven shut-off lever (visible at the back
of range) is in the open position.
Shut-Off Lever
Shown in the
Open Position
6. Install 1/2" flare union adaptor to the 1/2" NPT
elbow on pressure regulator.
7. Connect flexible appliance connector to flare
union.
8. Move range into approximate position and
connect flexible connector to gas supply line
with proper flare union adaptor.
Shut-Off
Valve
Gas Supply
Line
9. To prevent gas leaks, put a pipe joint sealant
on all male threads.
10. When you are finished making connections,
be sure that all range knobs are turned to
OFF before you open the main gas supply
valve.
8
Gas Supply
to Oven
Gas Supply to
Top Burner
Pressure Regulator
as see from Front of
Range
Flex
Connector
Flair Unions
Pressure
Regulator
90˚ Street Elbow
