Installation

Instructions

Gas Slide-In Range

JGSP23,

JGSP44

Questions? Call GE Answer Center at 800.626.2000 or

visit our

Website at: www.geappliances.com

CAUTION:

Before you begin- read these

instructions completely and carefully.

• IMPORTANT-

Save these instructions

for local

inspector's

use.

• IMPORTANT-OBSERVEALL

GOVERNING

CODES AND ORDINANCES.

• Note to Installer-

Be sure to leave these

instructions with the Consumer.

• Note to Consumer-

Keep these instructions

for

future reference.

• Note- This appliance

must be properly

grounded.

• IMPORTANT:

Leak testing of the appliance

shall be conducted

according

to the

manufacturer's

instructions.

Parts Included

Materials Needed

Pipe Fittings

Joint Sealant

Shut Off Valves

Tools You Will Need

Pipe Wrench

1/8" Drill Bit &

Phillips

Electric or

Head

Hand Drill

Screwdriver

Pencil

Ruleror

Straightedge

Saber Saw

Pub. No. 31-10500

229c4053P484

Table of Contents

Need help?

Do you have a question about the JGSP23 and is the answer not in the manual?

Questions and answers

Summary of Contents for GE JGSP23

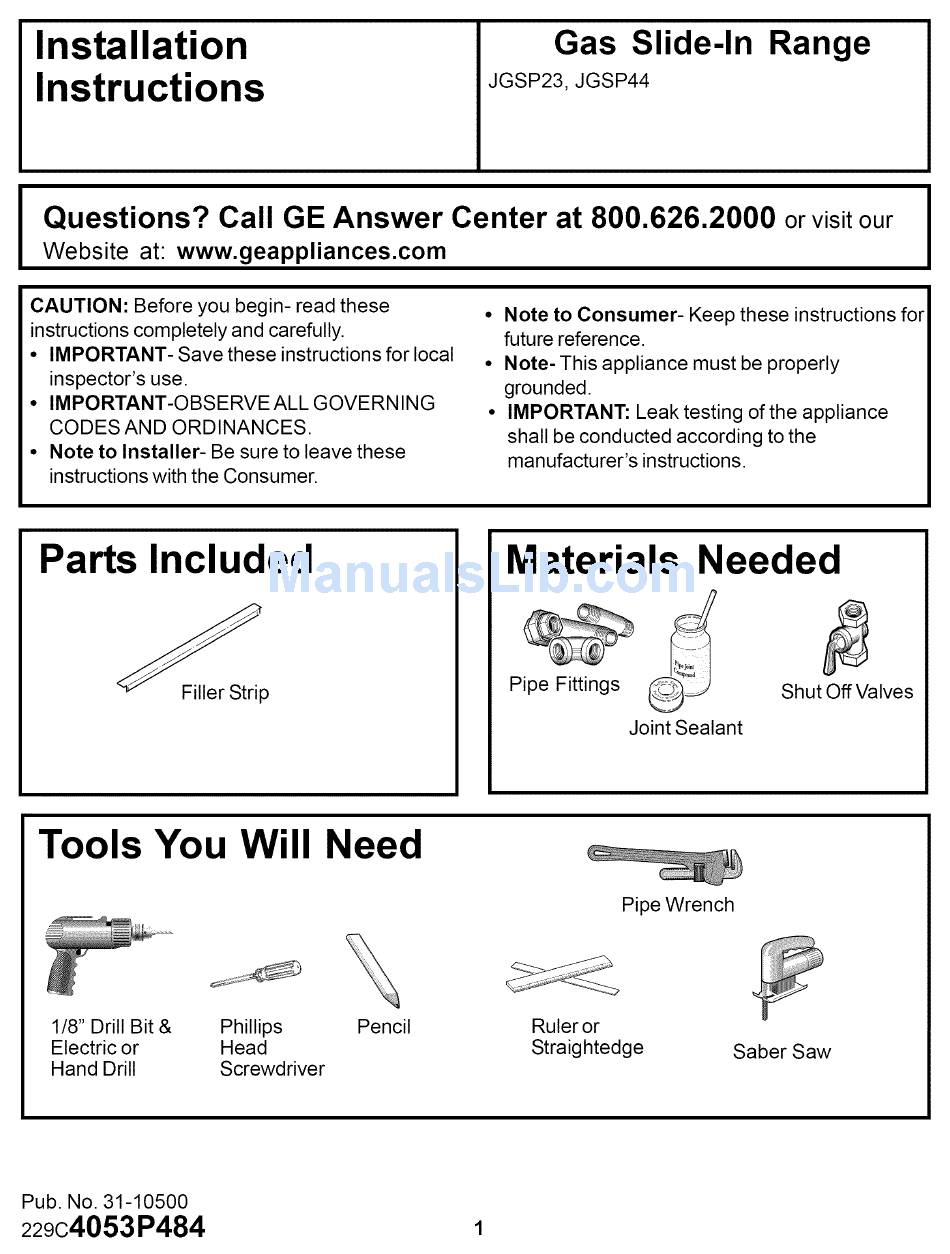

Page 1 Installation Gas Slide-In Range Instructions JGSP23, JGSP44 Questions? Call GE Answer Center at 800.626.2000 or visit our Website at: www.geappliances.com CAUTION: Before you begin- read these • Note to Consumer- Keep these instructions instructions completely and carefully. future reference. • IMPORTANT-...
Page 2: Installation Instructions
Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Electrical Requirements For Your Safety This Appliance must be electrically grounded. Check with your local codes which ARNING!! Iftheinformation this manual is not followed apply in your area. If no local codes apply, the National Electrical Code, ANSI/NFPA No.
Page 3 Installation Instructions Pre-Installation Checklist Remove Installation Instruction from range When preparing the opening, literature pack and read them make sure the inside of the cabinet and carefully before you begin. the slide-In do not interfere with each Be sure to place all literature, Use other.
Page 4: Preparing The Opening
Installation Instructions PREPARING THE OPENING Location of Range The distance from the floor to the top of the counter must be at least 35 7/8". The maximum counter height is 38". Do not put the range near an outside door or where a draft may affect use. Cabinet space directly over the range should not be used.
Page 5: Preparing The Counter
Installation Instructions Preparing the Counter Filler Strips or Backguard or Standard 25" Counter Without Post-Formed Backsplash WARNING: The Filler Strip supplied (Top view of counter cutout) optional backguard must be used. With any installation do not let the ///////////////////J countertop or other combustible material fill the space between...
Page 6 Installation Instructions Preparing the Counter tandard 25" Countertop with sland Installation with Rear Post-Formed Backsplash Filler Strip If your countertop has a post-formed backsplash If your countertop does not have a post- your choice may beto use the 4" backguard kit.
Page 7: Electrical Connections
Installation Instructions Electrical Connections The Three-Prong Outlet The range cord has a three-prong plug and must To temporarily use a properly polarized be plugged into a properly grounded three-hole grounded two-hole outlet until a grounded three- outlet. The outlet must be in a standard 120 Volt, hole outlet can be installed, a grounding...
Page 8: Gas Connections
Installation Instructions Gas Connections Before making gas connections, make sure Making the Connections that the oven shut-off lever (visible at the back of range) is in the open position. Recommended area for 120V outlet on rear wall and aea for through the wall connection Gas Supply of pipe stub and shut-off valve...
Page 9: Installing The Anti-Tip Device
Installation Instructions Anti-Tip Device -1-1 Installing the Anti-Tip Device Before placing range in the counter, check the Decide on a location that has no electrical wiring factory location of the stability device on the back or plumbing. of the range. This location should work for most installations.
Page 10: Cooktop Burners
Installation Instructions Cooktop Burners Pressure Test Information Assembling The Burners The maximum allowable pressure for the regulator is 14" W.C. The minimum pressure spark igniter AUTION: The electrode is exposed and the of the needed to check the regulator setting is 7" W.C. mixer bowl may have sharp edges.
Page 11: Bake And Broil Burners
Installation Instructions Bake and Broil Burners To Adjust the Air Shutter Checking the Oven The Burners BAKE BURNER Orifice Fitting To check the bake burner flames with the 1. Remove the orifice oven door in the closed position: fitting cover. 1.
Page 12: Leveling The Range
Installation Instructions Leveling the Range Checking Range For proper baking results, the range must be leveled. The height of the range must also be adjusted to the height of the counter. To do this: 1. Install the oven racks (see cleaning sections of the Use and Care Manual for instructions and additional information).
Page 13: Operation Checklist
Installation Instructions Operation Checklist Double check to make sure echeck Steps: everything in this guide has been Double check to make sure completed. Rechecking steps will everything in this guide has been ensure safe use of the cooktop. completed. Rechecking steps will ensure safe use of the Range.
Page 14: Adjusting The Pressure Regulator
Installation Instructions Making the L.P. Gas Conversion Know what needs to be Adjusting the Pressure converted Regulator The pressure regulator and the burner orifices CAUTION: If you are using L.P. (bottled) set for natural gas. To use liquid propane gas, the gas, all the adjustments described in the...
Page 15 Installation Instructions Making the L.P. Gas Conversion Installing the L.P. Orifices djusting the Cooktop Burners Install the L..P. orifices in their precise locations. grates, burner caps a. Removing the top _-BURNERGRATE ------ BURNER MIXER TU BURNER HEAD BURNER ////_ _/_£_-,--_ S P AR K IGNITER MIXER TUBE (CHIMNEY)
Page 16 Installation Instructions Making the L.P. Gas Conversion Adjusting the Cooktop Burners Low Flame Setting Low setting adjustments must be made with two other burners in operation on a medium setting. This procedure prevents the low flame from being set too low resulting in the flame being extinguished when other burners are turned on.
Page 17 Installation Instructions Making the L.P. Gas Conversion Air Shtter Setting for Bake and Broil Burners 1. Use a screwdriver to loosen the air shutter screw. 2. Adjust the air shutters. The table below gives "A ..B..C" the recommended initial air shutter setting.
Page 18 NOTES...
Page 19 Pub. No. 31-10500 229c4053P484...
Page 20 Cuisini_re irectives d'installation encastr_e JGSP23, JGSP44 Si vous avez des questions, appelez 1=800=361=3400 you visitez notre site Internet & • www.electrornenagersGECanada.corn • Note au consommateur : Conservez ces directives ATTENTION : Avant de commencer, veuillez life attentivement les presentes directives.
Page 21 "recti stallati CONSIG E SECURITE Pour votre s curit Installations lectriques Cet appareil dolt 6tre mis a la terre. V@ifiez aupres de vos services Iocaux quels sont les codes d'electricit6 en vigueur dans votre region. ce manuel ne sont pas suivies a la ISE EN GARDE : Si les directives En I'absence de codes Iocaux,...
Page 22 "recti stallati Liste de v rifications avant installation Retirez les directives d'installation de la trousse de documentation et lisez-les Lorsque vous preparez I'ouverture attentivement avant de commencer. pour la cuisiniere, assurez-vous Assurez-vous de placer toute la documen- I'int@ieur de I'armoire et la cuisiniere tation, le Guide d'utilisation et d'entretien,...
Page 23 "recti stallati E L'OUV Emplacement de la cuisini re ,, La distance entre le plancher et le dessus du comptoir dolt 6tre d'au moins 35 7/8 po. La hauteur maximale du comptoir est de 38 po. ,, N'installez pas la cuisiniere pres d'une porte exterieure ou dans un endroit ou un courant...
Page 24 "recti stallati U CO PTOI Fourrure ou dosseret Cornptoir standard de 25 po non dote d'un dosseret MISE EN GARDE " La fourrure fournie ou une fourrure en option dolt 6tre (Vue en plan de la d6coupe du comptoir) utilis6e. Quel que soit le mode d'installation, ne laissez pas le dessus du comptoir...
Page 25 "recti stallati PREPARATION DU COMPTOIFI En lot avec fourrure essus de comptoir standard de 25 po dote d'un dosseret I'-" "1 I'arri re ,Si votre dessus de comptoir est dote d'un Si votre dessus de comptoir n'est pas dote dosseret, vous pouvez utiliser I'ensemble d'un dosseret, vous pouvez utiliser...
Page 26 "recti stallati STALLATI ELECTRIQU Prise de courant trois alv oles Pour utiliser temporairement une prise de courant Le cordon de la cuisiniere est dote d'une fiche & & deux alveoles convenablement polarisee et mise trois broches et dolt 6tre branche dans une prise &...
Page 27 "recti stallati accordement la con uite e gaz Raccordernents 5. Avant d'effectuer les raccordements au gaz, assurez-vous que le levier d'arr6t du four (visible & I'arriere de la cuisiniere) soit en position ouverte. Zone recommand6e pour sortie 61ectrique de 120 V sur le tour arri@e, Alimentation et zone pour raccord _ la conduite/robinet d'arr6t _ travers lemur.
Page 28 "recti stallati ispositif an basculernent installation du dispositif antibasculernent Avant de placer la cuisiniere dans le comptoir, Determinez un emplacement libre de c&bles verifiez I'endroit ou le dispositif de stabilisation electriques ou de plomberie. & I'arriere de la cuisiniere a et6 installe I'usine.
Page 29 "recti stallati urs de la surface de cuisson Renseignernent sur I'essai de Assemblage des br01eurs resistance a la pression La pression maximale permise pour le regulateur est de 14 po de colonne d'eau. La pression minimale requise pour v@ifier le reglage I'allurne=gaz est expos_e et la t_te...
Page 30 "recti stallati urs de cuisson et e grillage R glage registre V rification des brQleurs du four BRULEUR DE CUISSON Couvercle V_rification des flammes du br_leur Enlevez le couvercle protection de cuisson Iorsque la porte du four est en de protection _,ce position ferrule...
Page 31: Installation
"recti stallati e la cuisinlere e niveau V rification de la cuisini re Pour de meilleurs resultats culinaires, la cuisiniere dolt 6tre de niveau. La hauteur de la cuisiniere dolt egalement correspondre & la hauteur du comptoir. Procedure Installez les grilles du four (ref@ez-vous a la section de nettoyage de votre Guide d'utilisation...
Page 32 stallat "recti Liste de v rifications de fonctionnernent V@ifiez bien pour vous assurer toutes les directives de ce manuel ont i_tapes de re=v_rification et6 suivies. Le fait de v@ifier de V_rifiez bien pour vous assurer nouveau chaque etape assure I'utilisation routes les directives de ce manuel...
Page 33 "recti stallati Conversion au gaz de p trole liqu fi - Ce qui dolt tre converti Reglage du regulateur pression Le regulateur de pression et les orifices des brOleurs sont regles pour le gaz naturel. Pour utiliser le gaz ATTENTION : Si vous utilisez du gaz L.R "_ de petrole liquefie (L.R), le regulateur et les orifices (en bouteille),...
Page 34 "recti stallati Conversion au gaz de p trole liqu fi nstallation des orifices pour eglage des brOleurs de la surface de cuisson le gaz L.P. Installez les orifices pour le gaz LP. & leur Enlevez emplacement respectif precis. grilles et __-Grille de brl)leur c@uchons...
Page 35 "recti stallati Conversion au gaz de p trole liqu fi R_glage de flamme basse des br01eurs de la surface de cuisson Les reglages de flamme basse doivent 6tre effectues alors que deux autres brQleurs fonc- tionnent & un reglage moyen. Cette procedure emp_che que la flamme...
Page 36 "recti stallati Conversion au gaz de p trole liqu fi R glage du registre pour les br01eurs de cuisson et de grillage Utilisez un tournevis pour desserrer le registre (vis de reglage du debit d'air). Reglez le registre. Le tableau qui suit indique les reglages originaux...
Page 37 NOTES...
Page 38 Pub. No. 31-10500 229c4053P484...
