Installation Instructions
J

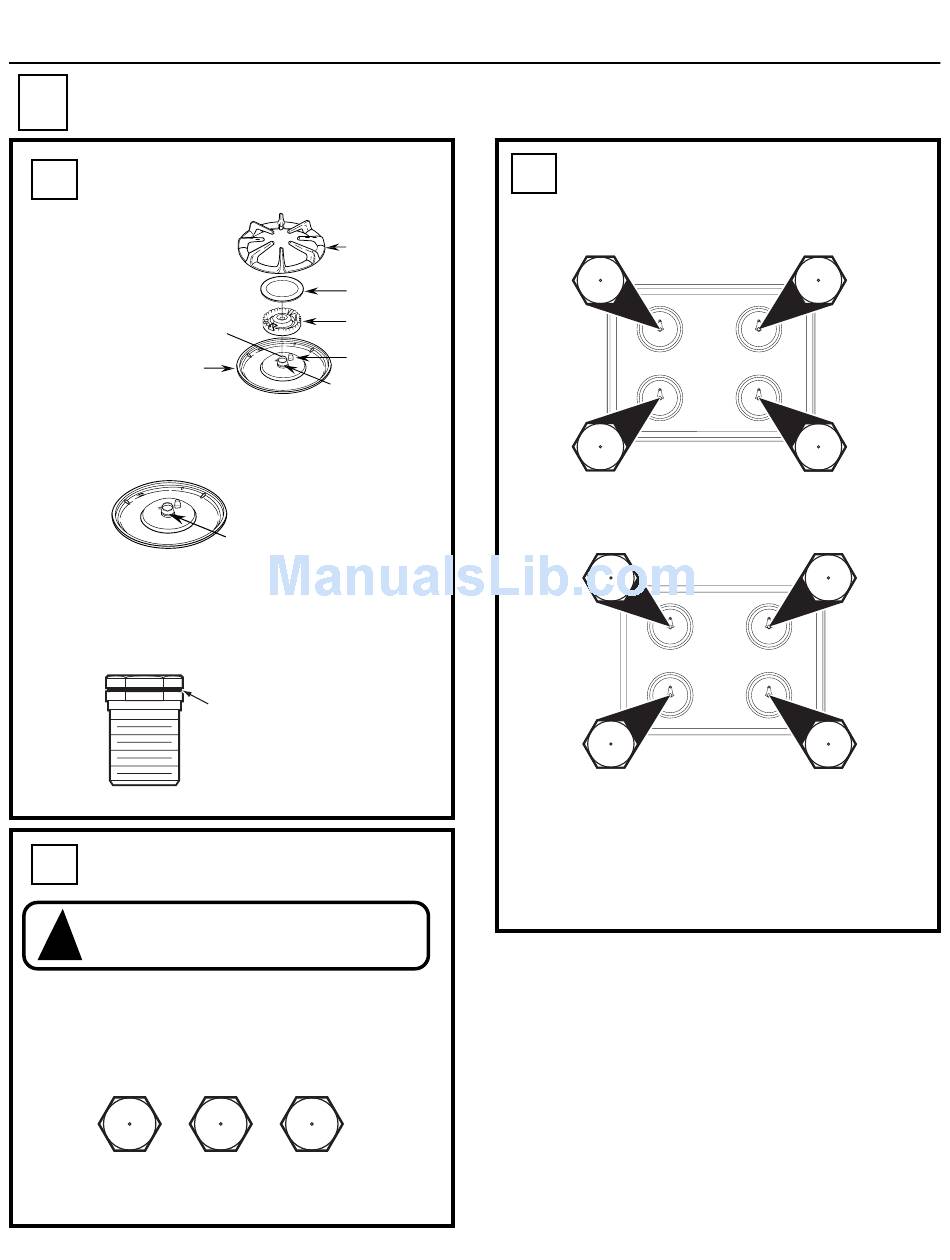

Making the L.P. Gas Conversion
Adjusting the Cooktop
J3
Burners
a. Removing the top
grates, burner caps
MIXER TUBE
BURNER
BOWL
b. Using a 7mm or 9/32" nut driver, remove the top
burner orifices. These may be accessed through
the burner air/gas mixer tube. (chimney)
NOTE: The orifices have a spring loaded
retaining ring around the hex head to hold the
orifice in the nut driver during installation and
removal. A slight amount of force is required
to push the nut driver down over the ring.
J4
Locate the L.P.Orifices
IMPORTANT: Save these orifices for
future conversion back to natural gas.
The L.P. orifices are shipped attached to the
riange on the area behind the storage drawer.
Remove storage drawer to see. Each orifice will
also show a series of engraved marks, (l,ll or lll),
located on tne top
I
These marks denote the precise location of
each orifice to the cooktop burner.
BURNER GRATE
BURNER CAP
BURNER HEAD
SPARK IGNITER
MIXER TUBE
(CHIMNEY)
MIXER TUBE (CHIMNEY)
RETAINER
RING
II III
J5
Installing the L.P. Orifices
Install the L..P. orifices in their precise locations
II
II
PORCELAIN COOKTOP
II
II
Return the natural orifices to the bracket and
reattach the bracket and these instructions to the
pressure regulator using the screw previously
removed.
15
I
ll
Front of Range
GLASS COOKTOP
Front of Range
.
I
lll
