Installation Instructions
J
Making the L.P. Gas Conversion
Know what needs to be
J1
converted
The pressure regulator and the burner orifices are
set for natural gas. To use liquid propane gas, the
regulator and burner orifices must be converted.
The L.P. orifice spuds for the cooktop burners
can be located within a bracket located behind the
storage drawer of this unit.
Do not operate the cooktop or oven
burners of this range when using L.P.
(bottled) gas before converting the
pressure regulator and burner orifices for
L.P. gas use. Failure to do so could cause
high flames and toxic fumes which can result
in serious injury.
WARNING: This conversion must be
performed by a qualified installer or gas
supplier in accordance with the
manufacturer's instructions and all codes
and requirements of the authority having
jurisdiction. Failure to follow instructions
could result in serious injury or property
damage. The qualified agency performing
this work assumes responsibility for the
conversion.
To adjust your range for use with L.P. gas, follow
these instructions:
1. Disconnect all electrical power at the main
circuit breaker or fuse box.
2. Shut off the gas supply to the range by closing
the manual shut-off valve.

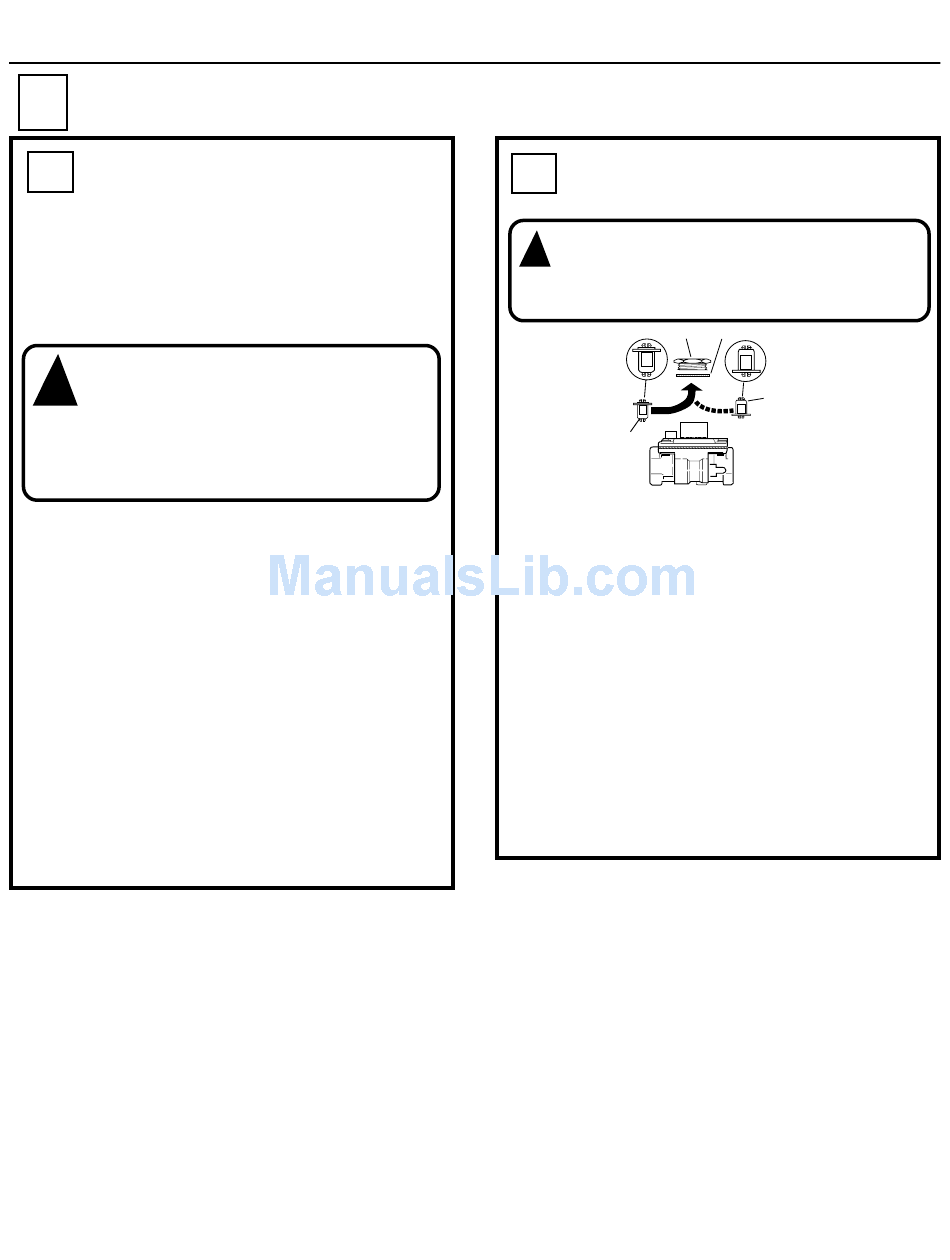

Adjusting the Pressure
J2
Regulator
CAUTION: If you are using L.P. (bottled)
gas, all the adjustments described in the
following steps must be made before you
make any burner adjustments.
NAT
LP
NAT
NAT.
POSITION
a. Remove the storage drawer.
b. Find the pressure regulator by reaching through
the storage compartment and the opening at
the back of the range.
c. Unscrew the cap.
d. Carefully look at the spring retainer to locate the
NAT or LP position.
e. Place your thumb against the flat side of the
MAKING THE L.P. GAS
spring retainer and press down to remove the
retainer.
CONVERSION
f. Turn the spring retainer over so that L.P. is
showing on the bottom.
g. Snap the retainer back into position and
retighten the cap back onto the regulator.
14
GASKET
CAP
LP
NAT
LP
SPRING
RETAINER
NAT
LP
L.P./PROPANE
POSITION
OFF
FOR
DOWN
PRESSURE REGULATOR
