Crestron Sonnex SWAMP-24X8 Quick Start Manual

SWAMP(I)-24X8
Sonnex® Multiroom Audio System
The Crestron® SWAMP-24X8 and
a fully scalable audio distribution system that delivers powerful,
audiophile-quality sound to every room with significantly reduced cabling,
low power consumption, advanced digital signal processing, and
integrator-friendly setup. A Sonnex system can be configured with the
Sonnex Tools application which is part of
the SWAMP-24X8's front panel controls.
The SWAMP-24X8 and SWAMPI-24X8 are functionally identical. For
simplicity within this guide, the term "SWAMP-24X8" is used except where
noted.
SWAMPI-24X8 are the centerpieces of
Crestron Toolbox™ software
In the Box

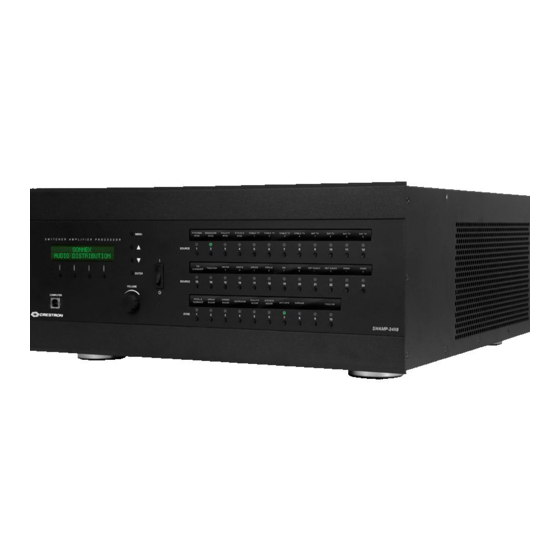

1 SWAMP(I)-24X8, Sonnex® Multiroom Audio System
or
Additional Items
2 Bracket, Rack Ear, 4U (P/N 2026436)
2 Connector, 4-Pin (P/N 2003576)
4 Connector, 5-Pin (P/N 2003577)
16 Connector, 2-Pin (P/N 2012361)
1 Label Set (P/N 4511969)
2 Screw, 6-32 x 5/16 in., Undercut Head, Phillips (P/N 2007223)
SWAMP-24X8 Only
1 Fuse, 15.0 A, Time Lag, 1.25 in. x 0.25 in., Ceramic Cartridge,
250 V (P/N 2021919)
1 Power Cord, 6 ft 7 in. (2 m) (P/N 2025416)
SWAMPI-24X8 Only
1 Fuse, 8.0 A, Time Lag, 5 mm x 20 mm, Ceramic Cartridge,
250 V (P/N 2023062)
1 Cable, Power (P/N varies by country)
Quick Start
1
