C2N-AMP-6X100 and C2NI-AMP-6X100
6-Room + 2 Audio System

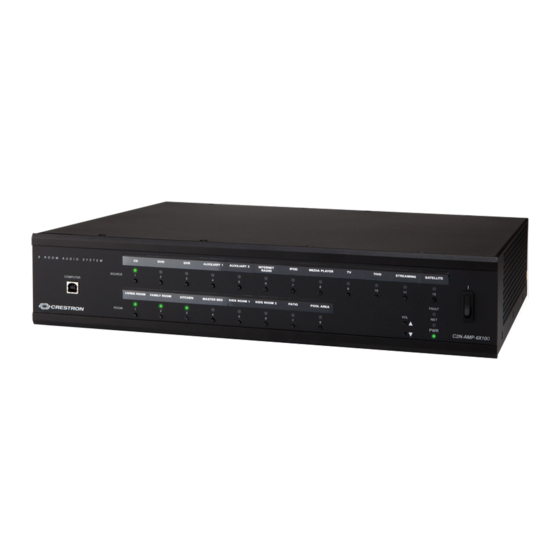

The Crestron®
C2N-AMP-6X100
cost-effective multiroom audio systems designed for small to
moderate-sized houses, condominiums, and businesses. Its integrated
multichannel power amplifier provides ample power for up to six rooms,
which can be expanded with additional C2N-AMP-6X100 units, or by
connecting external amplifiers to the two extra line-level room outputs.
The C2N-AMP-6X100 and C2NI-AMP-6X100 are functionally identical.
For simplicity within this guide, the term "C2N-AMP-6X100 " is used
except where noted.
In the Box
1
C2N(I)-AMP-6X100 6-Room + 2 Audio System
Additional Items
2
Bracket, Rack Ear, 2U (2034434)
2
Connector, 4-Pin (2003576)
6
Connector, 4-Pin, Right-Angle (2003584)
1
Label, Custom, Identification (4509950)
1
Label, Filler Strip, Cardstock, 11.9 in. x 0.4 in. (4520506)
1
Label, Filler Strip, Cardstock, 7.9 in. x 0.4 in. (4520508)
6
Screw, 6-32 x 5/16 in., Undercut Head, Phillips (2007223)
C2N-AMP-6X100 Only
1
Power Cord, 6 ft 7 in. (2 m) (2001134)
C2NI-AMP-6X100 Only
1
Power Cord (varies by country)
and
C2NI-AMP-6X100
are versatile and
Install
Refer to the
Safety Instructions
The C2N-AMP-6X100 can be placed on a table or installed in a rack.
Place on a Table
Place the C2N-AMP-6X100 on a table or stack on top of another device.
Rack Installation
The C2N-AMP-6X100 occupies 2U of rack space. Use a # 1 Phillips
screwdriver to remove the three screws from the front part of each side
panel. Attach the two included rack ears to the device with the 6 included
screws as shown in the illustration on the following page. Then mount the
device into the rack using four rack mounting screws (not included).
Quick Start
(Doc. 6607) prior to installation.
1
Advertisement
Table of Contents
Related Manuals for Crestron C2N-AMP-6X100
Summary of Contents for Crestron C2N-AMP-6X100
- Page 1 C2N-AMP-6X100 units, or by connecting external amplifiers to the two extra line-level room outputs. The C2N-AMP-6X100 can be placed on a table or installed in a rack. The C2N-AMP-6X100 and C2NI-AMP-6X100 are functionally identical.
- Page 2 Quick Start C2N-AMP-6X100 and C2NI-AMP-6X100 6-Room + 2 Audio System Attach Rack Ears Rack Mounting Safety Precautions Elevated Operating Ambient Temperature: If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. Therefore,...
- Page 3 Quick Start C2N-AMP-6X100 and C2NI-AMP-6X100 6-Room + 2 Audio System Connect Connect the device as called out in the following illustrations. Connect power last. WARNING: This amplifier is capable of delivering large amounts of undistorted power to the loudspeakers. Please use caution and adequate ear protection if listening to content at high volume levels as continued exposure to high sound pressure levels can cause permanent hearing impairment or loss.
- Page 4 Quick Start C2N-AMP-6X100 and C2NI-AMP-6X100 6-Room + 2 Audio System C2N-AMP-6X100 front panel...
-
Page 5: Connect Devices
SIMPL Windows. For details, refer to the LAN Port programming software's help file. Connect the LAN port to a LAN to communicate with a Crestron control Stereo Operation system over Ethernet. Use stereo operation to send a stereo signal to a speaker output with NET Port... - Page 6 SPEAKER OUTPUT 2. SPEAKER OUTPUT 3 is paired with maintaining separation of the left and right audio input channels. The SPEAKER OUTPUT 4. SPEAKER OUTPUT 5 is paired with SPEAKER C2N-AMP-6X100 can enable the following SPEAKER OUTPUT pairs for OUTPUT 6. bridged stereo operation.
- Page 7 Volume. channels of a paired speaker output for high-power applications (up to 150 W to an 8 ohm speaker). The C2N-AMP-6X100 can enable the When bridged signals are routed to paired room 5 and 6, the LINE following SPEAKER OUTPUT pairs for bridged mono operation.
-
Page 8: Operation
6-Room + 2 Audio System Label Buttons Operation The SOURCE and ROOM buttons can be customized with the included The C2N-AMP-6X100 can be controlled from the front panel. labels and label inserts. Power 1. Apply the peel-and-stick labels to the appropriate locations on the label inserts. - Page 9 Quick Start C2N-AMP-6X100 and C2NI-AMP-6X100 6-Room + 2 Audio System Connect a Room to a Source With a source selected, press any ROOM button to connect it to the Visit the Product Page source. The associated ROOM LED will light. Scan the QR code to visit the product page.
- Page 10 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography. ...
