Crestron C2N-AMP-6X100 Do Manual

DO GUIDE

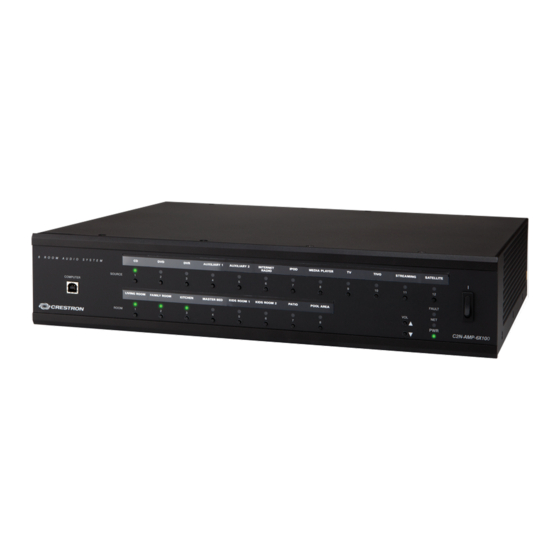

C2N(I)-AMP-6X100
6 Room + 2 Room Audio System
DO

Install the Device

The C2N(I)-AMP-6X100 can be mounted in a rack or stacked with other equipment. Two "ears" are provided with the C2N(I)-AMP-6X100 so that the unit can
be rack mounted. These ears must be installed prior to mounting. The only tool required is a #1 or #2 Phillips screwdriver.
WARNING: To prevent bodily injury when mounting or servicing this unit in a rack, observe the following guidelines:
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
NOTE: Observe the following guidelines when installing equipment in a rack:
• Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack
environment may be greater than room ambient temperature. Therefore, consideration should be given to installing the equipment in an environment
compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
• Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of airflow required for safe operation of the equipment is not
compromised.
• Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical
loading.
• Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the
circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when
addressing this concern.
• Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other
than direct connections to the branch circuit (e.g., use of power strips).
NOTE: If rack mounting is not required, rubber feet are provided for tabletop mounting or stacking. Apply the feet near the corner edges on the underside of
the unit.
CAUTION: To prevent equipment damage, use only the rack ears Crestron ® provides for this device.
DO

Check the Box

QUANTITY PRODUCT
2 Metal, Bracket, Ear, 2U
1 Power Cord, 3-Prong
2 Connector, 4-Pin
6 Connector, 4-Pin, Right-Angle
6 Screw, 06-32, 5/16" L, Flat, Phillips
1 Label, Filler Strip, Cardstock, 11.9" x 0.4"
1 Label, Filler Strip, Cardstock, 7.9" x 0.4"
1 Label, Custom, Identification
1 Safety Instructions
DO

Make Connections

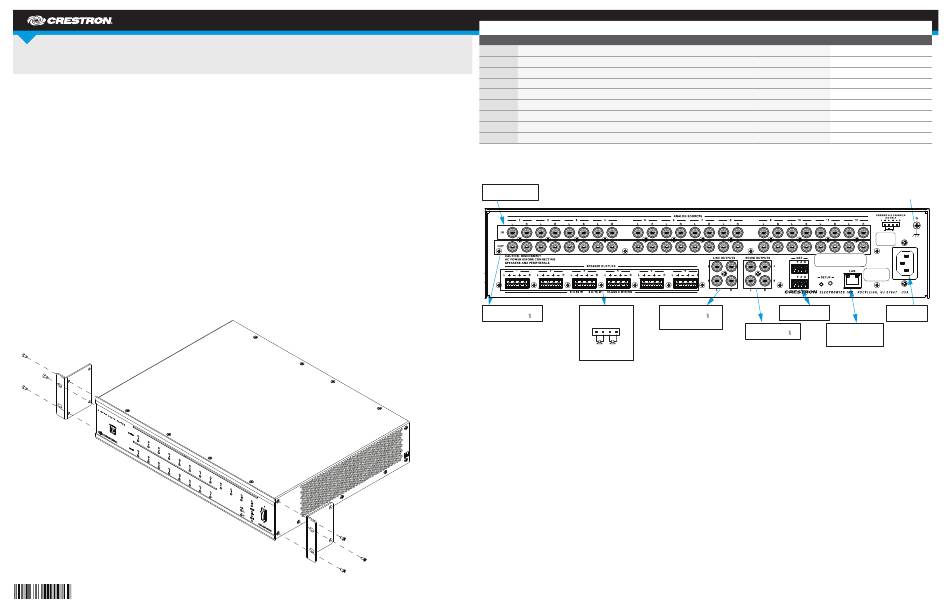

Make the necessary connections as called out in the diagram below. Connect power last.
ANALOG SOURCES (IN):
From Source Devices
ANALOG SOURCES (OUT):
SPEAKER OUTPUTS:
To Additional Ampli ers
To Loudspeakers
L + - + -R
+ -+ -
LEFT RIGHT
NON-BRIDGE
PART NUMBER
2034434
2001134
2003576
2003584
2007223
4520506
4520508
4509950
2018589
LINE OUTPUTS: NET:
To Additional Ampli ers To Cresnet Network
®
(Mirrors Outputs 5 and 6)
ROOM OUTPUTS:
To Additional Ampli ers 10BASE-T/100BASE-TX
Ethernet to LAN
Ground
POWER:
From Line Voltage
LAN:
