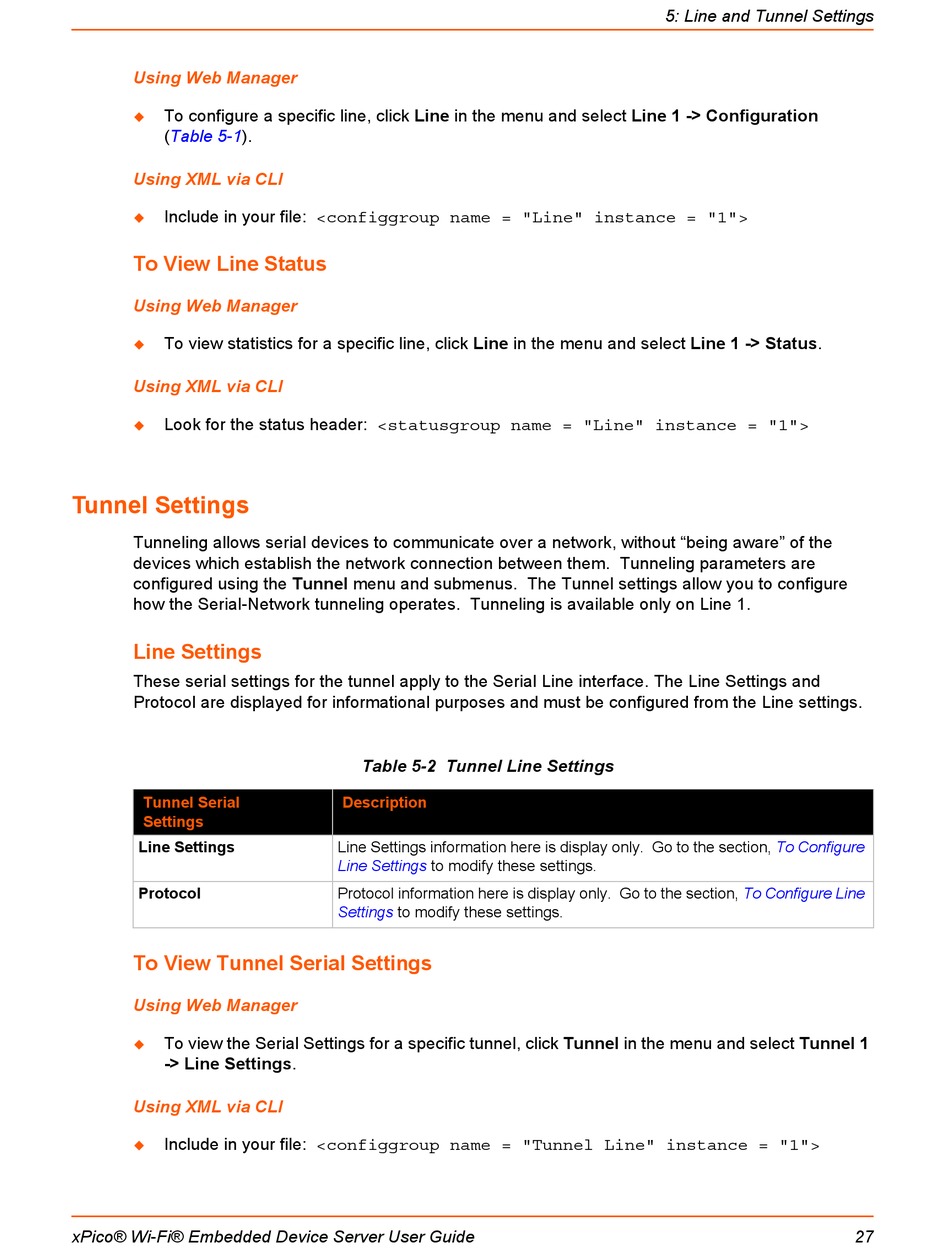

Using Web Manager
To configure a specific line, click Line in the menu and select Line 1 -> Configuration

(Table 5-1).
Using XML via CLI
Include in your file: <configgroup name = "Line" instance = "1">


To View Line Status

Using Web Manager
To view statistics for a specific line, click Line in the menu and select Line 1 -> Status.

Using XML via CLI
Look for the status header: <statusgroup name = "Line" instance = "1">


Tunnel Settings

Tunneling allows serial devices to communicate over a network, without "being aware" of the
devices which establish the network connection between them. Tunneling parameters are
configured using the Tunnel menu and submenus. The Tunnel settings allow you to configure
how the Serial-Network tunneling operates. Tunneling is available only on Line 1.

Line Settings

These serial settings for the tunnel apply to the Serial Line interface. The Line Settings and
Protocol are displayed for informational purposes and must be configured from the Line settings.
Tunnel Serial
Settings
Line Settings
Protocol

To View Tunnel Serial Settings

Using Web Manager
To view the Serial Settings for a specific tunnel, click Tunnel in the menu and select Tunnel 1

-> Line Settings.
Using XML via CLI
Include in your file: <configgroup name = "Tunnel Line" instance = "1">

xPico® Wi-Fi® Embedded Device Server User Guide

Table 5-2 Tunnel Line Settings

Description
Line Settings information here is display only. Go to the section,
Line Settings to modify these settings.
Protocol information here is display only. Go to the section,
Settings to modify these settings.
5: Line and Tunnel Settings
To Configure
To Configure Line
