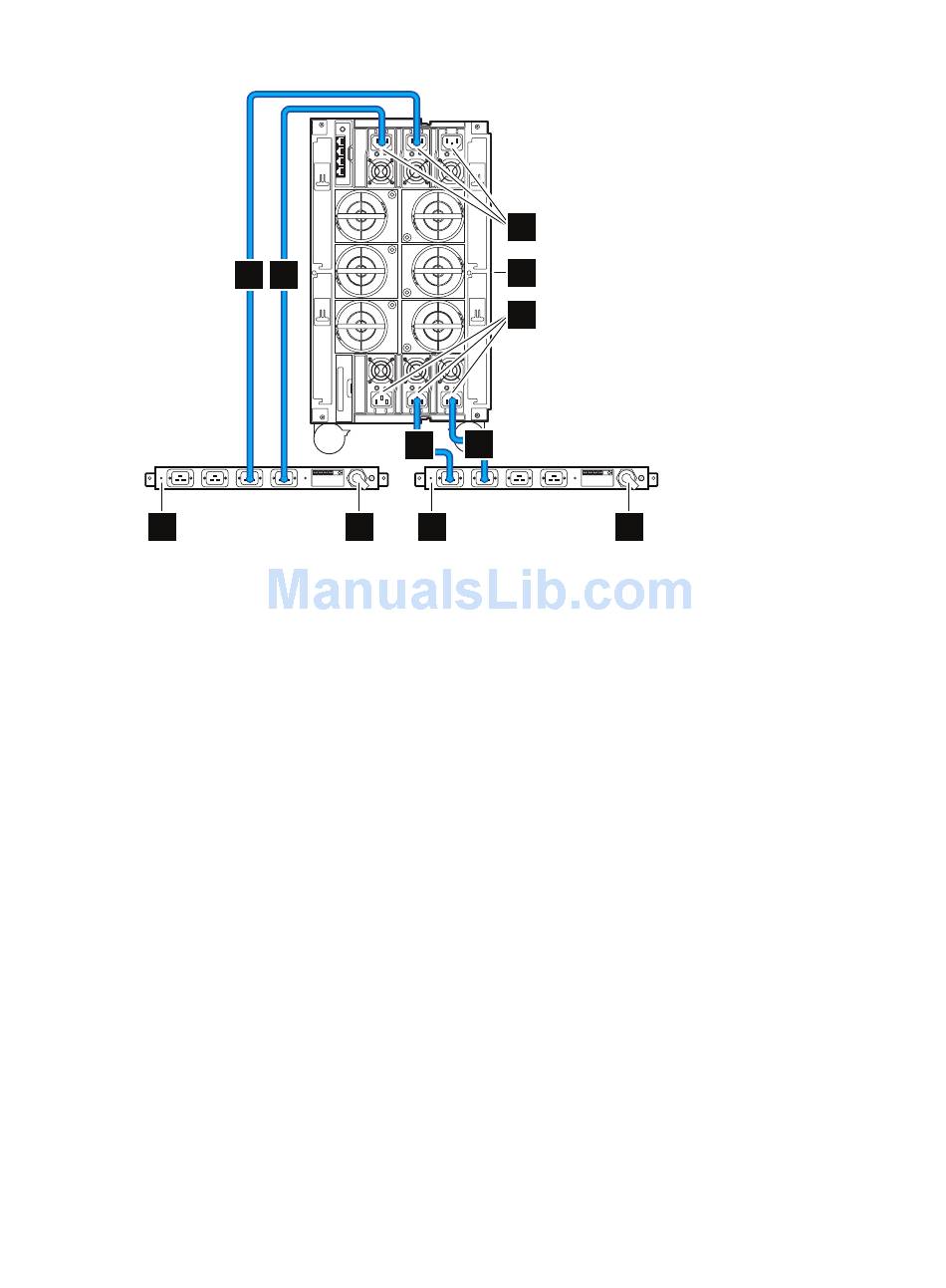

Figure A-2 Example Configuration 2: 2.7kVA, N+N Redundant Enclosure with 16A PDU, C20-C13
Power Cords (not supplied by HP)
3 3
5
The following list describes the callouts in
1. Workgroup System Tower rear view
2. 1200W power supplies (six)
3. Four C20-C13 power cords (not supplied by HP).
4. PDU power cords to site power (two)
5. 16A PDU, 252663-B24 with detachable power cords (two)
Figure A-3 provides an example of a 3kVA, N+1 redundant enclosure with a 16A PDU, C20-C13
cords (not supplied by HP).
