Example Configuration 1: 4Kva, N+N Redundant Enclosure With A 32A International Pdu; Power Cords (Not Supplied By Hp) - HP Cluster Platform Introduction v2010 Installation Manual

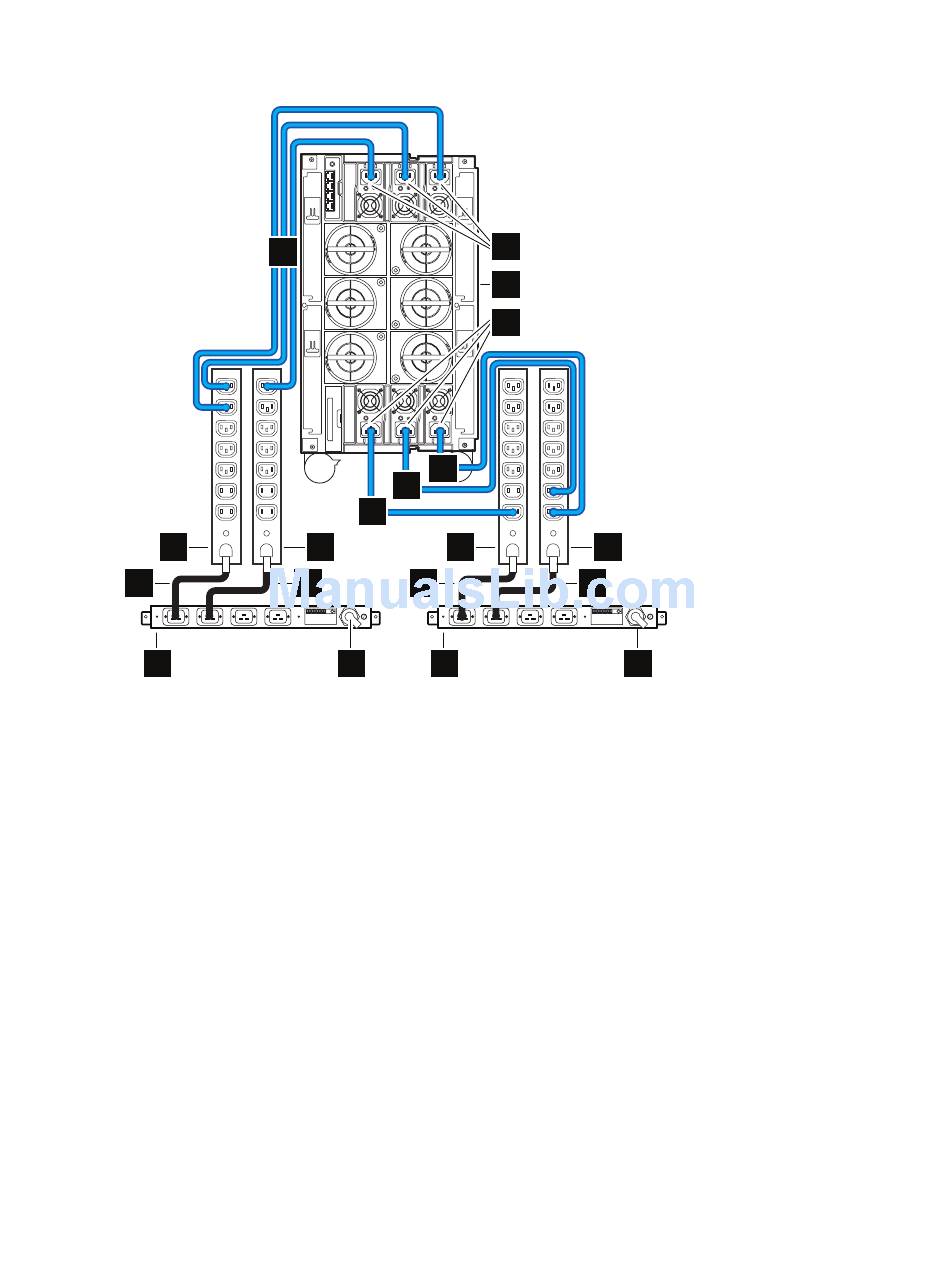

Figure A-1 Example Configuration 1: 4kVA, N+N Redundant Enclosure with a 32A International
PDU
6
7
5
The following list describes the callouts in
1. Workgroup System Tower rear view
2. 1200W power supplies (six)
3. C13-C14 power cords (six)
4. PDU power cord to site power
5. 32A International PDU (252663-B31 IEC 309-32A) (two)
6. C13 extension bar (power strips) plugged into the 32A PDU (four)
7. Power strip cords connected to the PDUs (four)
Figure A-2 provides an example of a 2.7kVA, N+N redundant enclosure with 16A PDU, C20-C13

power cords (not supplied by HP).

32 Workgroup System Tower High-Line Power Examples
