Required Resources; Prerequisites - HP Cluster Platform Hardware Kits v2010 Installation Manual

• 18 releasable cable ties shown in

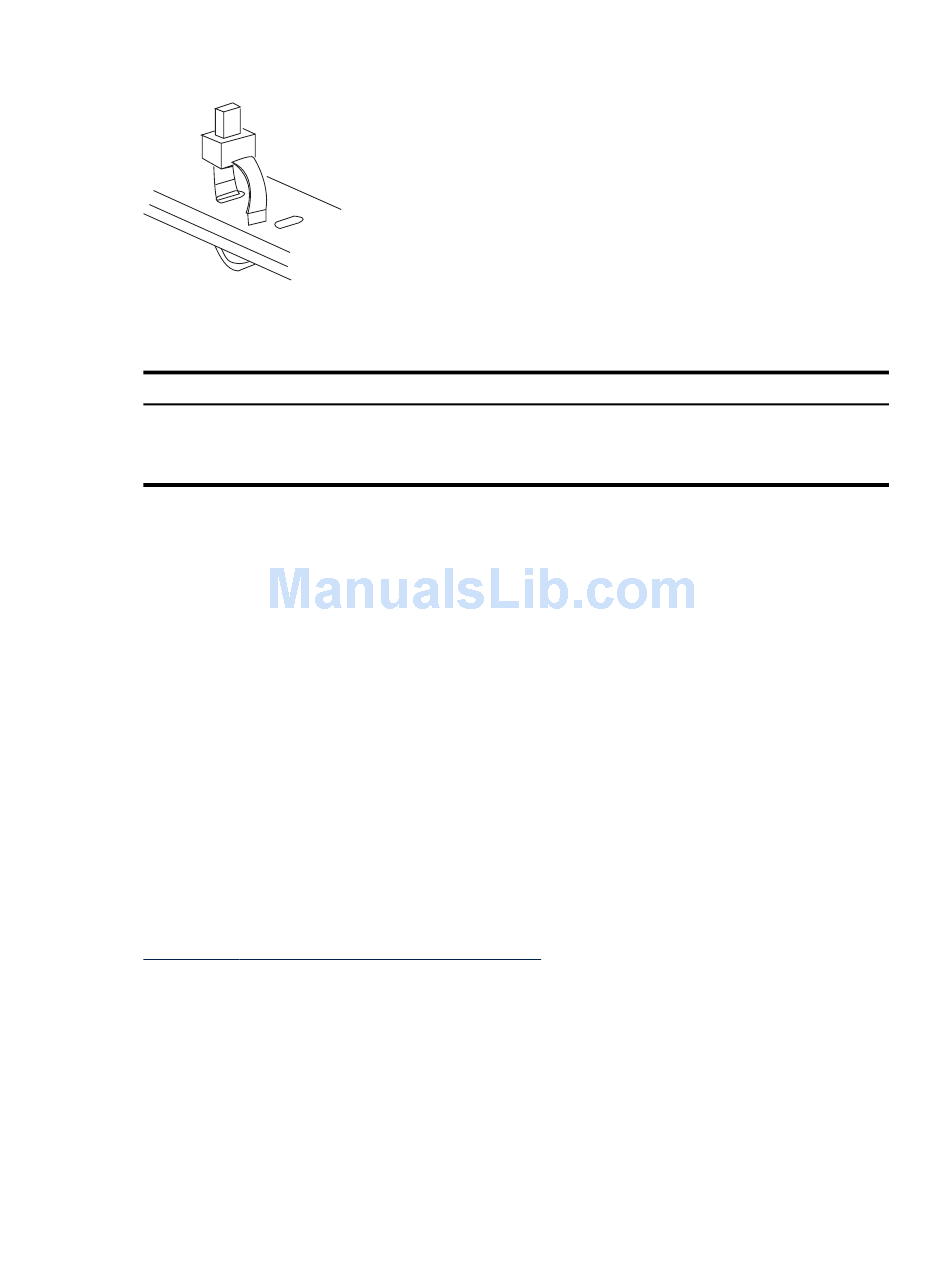

Figure 1-2 Releasable Cable Tie
• The fasteners specified in
Table 1-1 Fasteners
Quantity
2
2
To prevent screws from becoming loose because of vibration, HP recommends that you use
an adjustable torque drive, set to the torque specifications given in
HP sales representative if any parts are missing.

1.5 Required Resources

To install the HP cable management kit, you require the following resources:
• Tools:
— Screwdriver, #2 (medium) Phillips
— Cage-nut insertion tool (shipped with the rack) or a flat-headed screwdriver
— Marker pen or masking tape
— Diagonal cutting pliers
• Resources: Cables of the type used by the InfiniBand switch.

1.6 Prerequisites

Before you begin to mount the bracket:
• Follow the cable-handling precautions for InfiniBand cables. For more information, see the
HP Cluster Platform InfiniBand Interconnect Installation and User's Guide at:
http://www.docs.hp.com/en/highperfcomp.html
• Obtain the set of cabling tables required for your solution (if applicable).
• Read the hardware installation guide for the InfiniBand switch you are installing.
6 Preparing for Installation
Table
Size Format
M6 cage nuts Square nut
M6 x 16 mm Posidrive
pan head screws
Figure 1-2.
1-1.
Torque Description
N/A Cage nut for M6 screw.
25-30 in/lb Machine screw. For use with M6 cage nut.
Table 1-1. Contact your
