GE IM4A Owner's Manual And Installation Instructions page 34

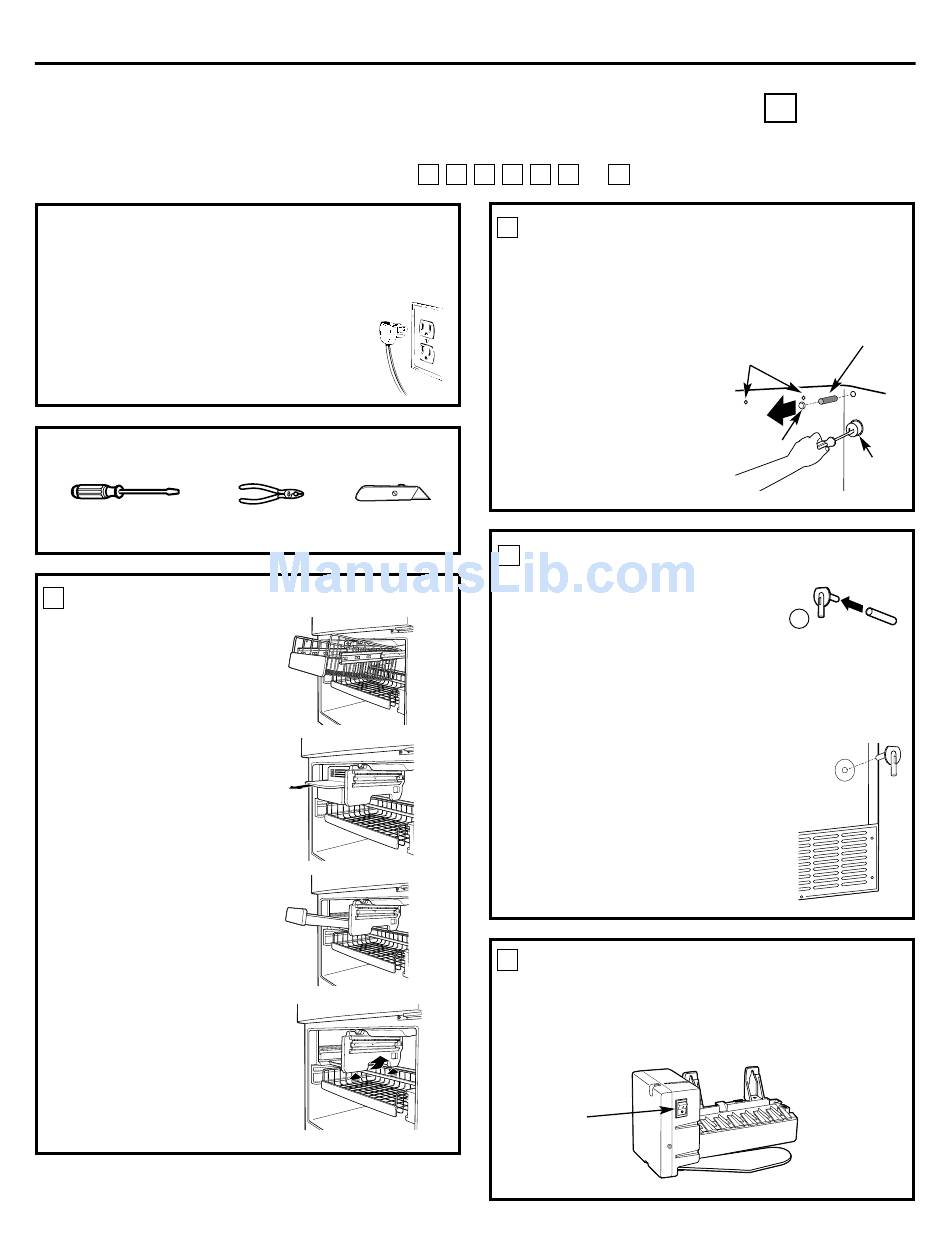

ICEMAKER INSTALLATION INSTRUCTIONS S
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator—
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
CAUTION –
•
Refrigerator. To eliminate the danger
of electric shock during installation,
you must unplug the refrigerator from
its electrical outlet.
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
PREPARE FOR INSTALLATION
1
• Remove the storage
basket (on some models)
by pulling it out to the
stop position and lifting
it up and out.
Note: After removing
the basket, push the
extension arms back
into the freezer
compartment.
• Remove the chiller shelf
(on some models) by
pulling it straight out.
• Remove the ice bucket
by pulling it out and
lifting it up and out.
• Remove the center
vertical shelf support
(on some models) by
lifting it and rotating
its bottom to the right.
Installation Instructions
L
Unplug the
Sharp knife
Pliers
or S
M N P Q R
PREPARE FOR INSTALLATION
1
• Inside the freezer, remove the two small white
plug buttons (on some models) from the side
wall. (If screws are present instead of plugs,
leave them in place.)
• Remove and discard
the large white plug
from the rear freezer
wall. Pull out the gray
insulation plug and
remove any debris.
• Remove the outlet
cover with a flat-blade
screwdriver.
2 INSTALL FILL TUBE
• Slide the fill tube shipped
with the refrigerator onto the
water tube inlet (12). If the fill
tube has been misplaced, call
1.800.626.2002 and order part
WR02X11712.
• Go to the back of the refrigerator.
Remove the label covering the
hole. Pull out the insulation plug
and any debris.
• On the tube side of the water tube
inlet (12), there is an adhesive
backing. Remove the adhesive
backing and slide the tube into the
hole at the back of the refrigerator.
Firmly press on the inlet to secure
it to the refrigerator.
3 SET POWER SWITCH TO O (off)
Set the icemaker power switch to O (off). Leave
the power switch in the O (off) position until the
refrigerator is connected to the water supply to
prevent premature operation.
Power
Switch
34
(cont.)
Insulation
Remove side wall plug
plug
buttons or leave screws
in place
Rear wall
plug button
Outlet
cover
12
