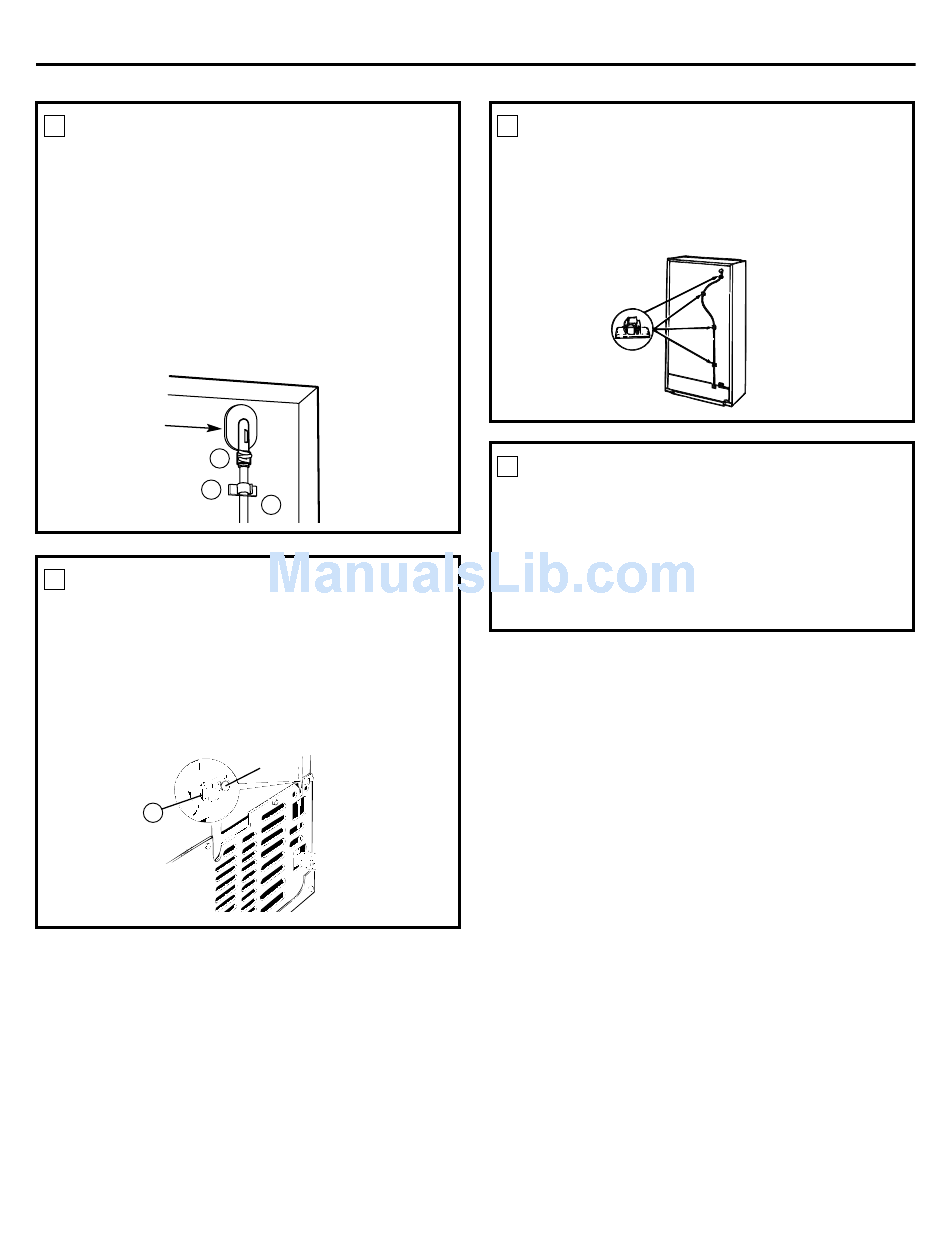

CONNECT WATER TUBE
3
TO EXISTING INLET
• Squeeze the ends of the hose clamp (16) from the
kit with pliers and slide the clamp over the inlet,
located in the top right corner of the refrigerator.
• While still squeezing the clamp, insert the free end
of the water tube (3) into the inlet as far as it will go.
• Then slide the clamp downward to capture the
water tube in place.
• Using one of the adhesive-backed fasteners (4),
secure the water tube to the back of the refrigerator
about 1/2" below the inlet.
Inlet
16
4
INSTALL WATER LINE CLAMP
4
• Attach the metal water line clamp (strain relief)
(6) to the refrigerator. Drive one of the screws,
removed in Step 1, into the cabinet edge through
the clamp and hole in compressor cover.
The metal clamp is for the house water line (see
•
Water Line Installation Instructions). It is not to
be used for the water tube from the water valve
up to the inlet.
6
Installation Instructions
3
Screw
ROUTE AND ATTACH
5
THE WATER TUBE
Fasten the plastic water tube to the back of the
•
refrigerator with the remaining adhesive-backed
fasteners (4), spacing the fasteners as shown to
take up slack in the tube.
Adhesive-backed
fasteners for
water tube
WATER VALVE INSTALLED
6
Refer to the Water Line Installation Instructions for
connection to the home water supply. After water
line installation is completed, set the icemaker
power switch to I (on).
The icemaking cycle will not begin until the icemaker
and freezer compartment reach operating temperature,
then icemaking will begin automatically.
