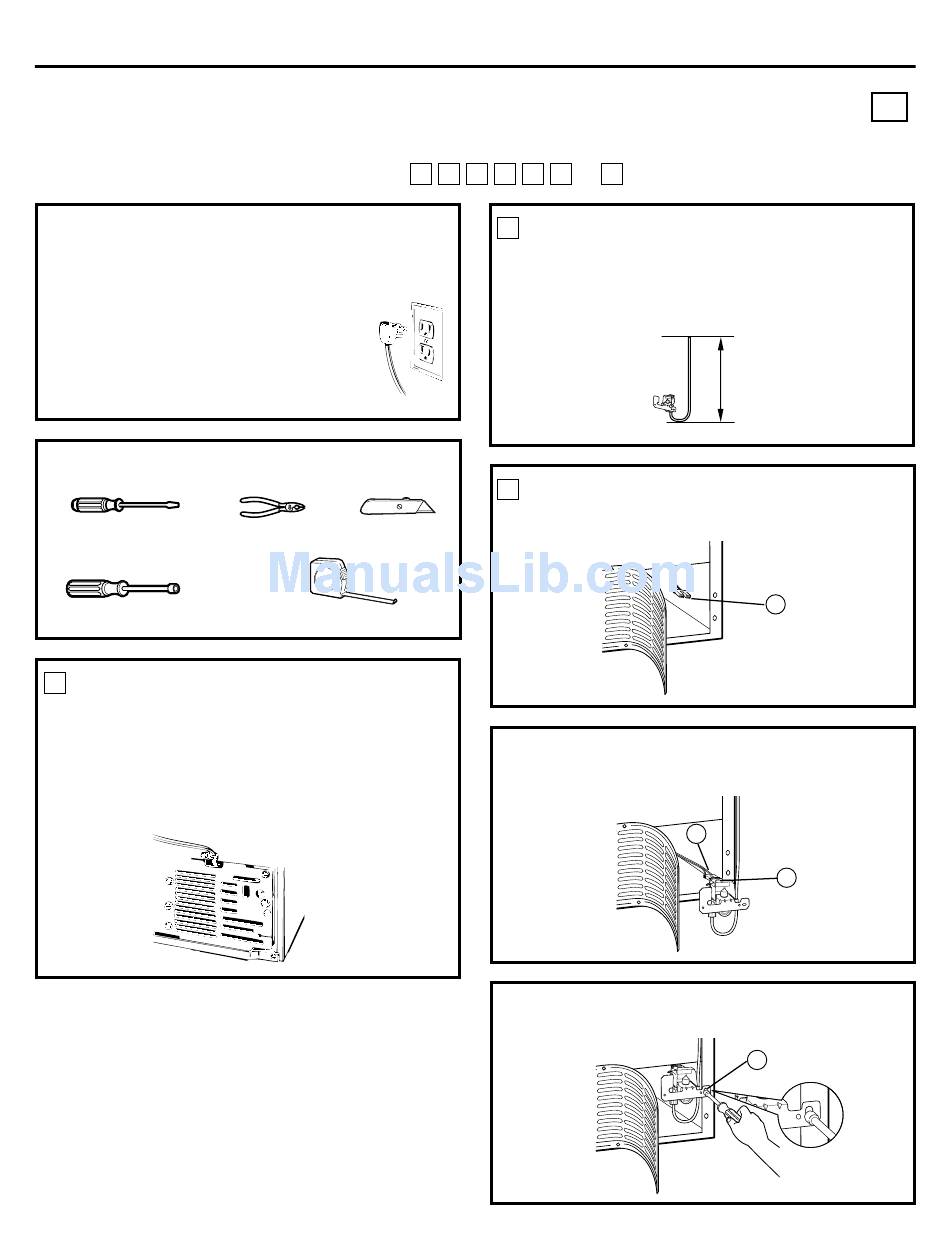

WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS R
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator ---
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
CAUTION –
•
Refrigerator. To eliminate the danger
of electric shock during installation,
you must unplug the refrigerator
from its electrical outlet.
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
1/4" and 5/16" Nutdrivers
REMOVE THE COVER
1
At the bottom rear of the refrigerator, remove the
screws holding the access cover.
Bend the cover back to access the compartment.
Be sure to save the screws as the access cover must
be reinstalled later to ensure that your refrigerator
will function properly.
Installation Instructions
L
Unplug the
Pliers Sharp knife
Tape measure
or S
M N P Q R
CUT PLASTIC WATER TUBING
2
• Measure 25" (64 cm) of water tubing starting
from where it is secured to the water valve. Cut
off excess tubing with a sharp knife or single-
edge razor blade.
3 ATTACH THE WATER VALVE
• Locate the female connector plug (C).
• Plug the female connector (C) onto the male
terminals on the water valve (3). Either wire
can go on either terminal.
• Fasten the water valve to the cabinet using the
hex-head screw (10) from the kit.
32
25" (64 cm)
C
C
3
10
