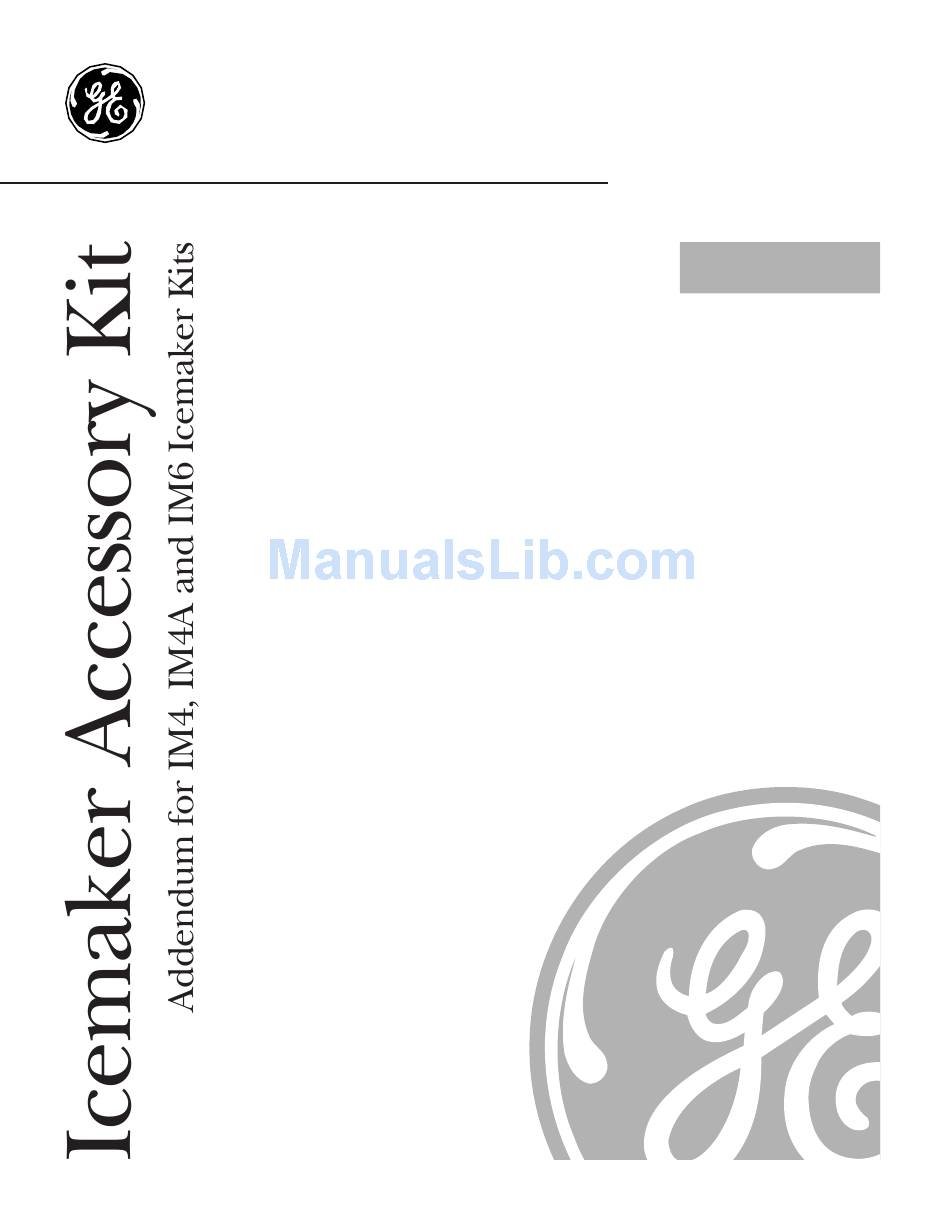

GE GBS20KB Installation Instructions Addendum

Addendum for im4, im4a and im6 icemaker kits.
Hide thumbs


Advertisement

www.GEAppliances.com
IMPORTANT:
These
instructions are needed to
install an icemaker in your
refrigerator. To be used
with an IM4, IM4A or IM6
Icemaker Kit. Keep this
addendum with your
Owner's Manual and
Installation Instructions.
Installation Instructions
Addendum
These instructions
are to be used to
install an Icemaker
Kit in the models
listed below.
GBS20KB
GBS22HB
GBS22KB
PDS20MB
PDS20SB
PDS22MB
PDS22SB
197D5736P002
49-60319 12-03 JR

Advertisement

   Summary of Contents for GE GBS20KB

  • Page 1

    IM4, IM4A or IM6 install an Icemaker Icemaker Kit. Keep this Kit in the models addendum with your listed below. Owner’s Manual and GBS20KB Installation Instructions. GBS22HB GBS22KB PDS20MB PDS20SB PDS22MB PDS22SB 197D5736P002...

  • Page 2: Installation Instructions

    Installation Instructions NEEDED CONTENTS OF KIT The following are a list of the parts from the kit that will be needed to install the icemaker. Hex-Head Screw Phillips Head Screws, for Water Line Clamp for mounting icemaker (2) Icemaker Water Line Clamp Water Tube Inlet (strain relief), for house water line...

  • Page 3: Before You Begin

    Installation Instructions PREPARE FOR INSTALLATION (cont.) BEFORE YOU BEGIN • Inside the freezer, remove the two small white Read each step thoroughly before proceeding. plug buttons (on some models) from the side wall. (If screws are present instead of plugs, CAUTION –...

  • Page 4

    Installation Instructions INSTALL THE MOUNTING SCREWS MOUNT THE ICEMAKER • Lift the icemaker so the fill tube shipped with the • Skip to Step 5 if screws are already in place in refrigerator fits in the fill cup opening (E). Hang the freezer side wall.

  • Page 5

    Installation Instructions WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS ATTACH THE WATER VALVE BEFORE YOU BEGIN • Locate the female connector plug (C). Read each step thoroughly before proceeding. CAUTION – • Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

  • Page 6

    Installation Instructions ROUTE AND ATTACH THE ATTACH THE WATER VALVE (cont.) WATER TUBE • Clip the end of the ground wire to the refrigerator cabinet. • Fasten the plastic water tube to the back of the refrigerator with three of the adhesive-backed fasteners (4), spacing the fasteners as shown.

  • Page 7

    Notes...

  • Page 8

    Printed in Mexico...
