GE Monogram ZGG300LB Installation Instructions Manual page 22

Installation
Instructions
16"
24"
Mounting Screws (10)
Spring Hinge Clips (2)
1-3/16" Drawer
ZX18TC TRASH BIN

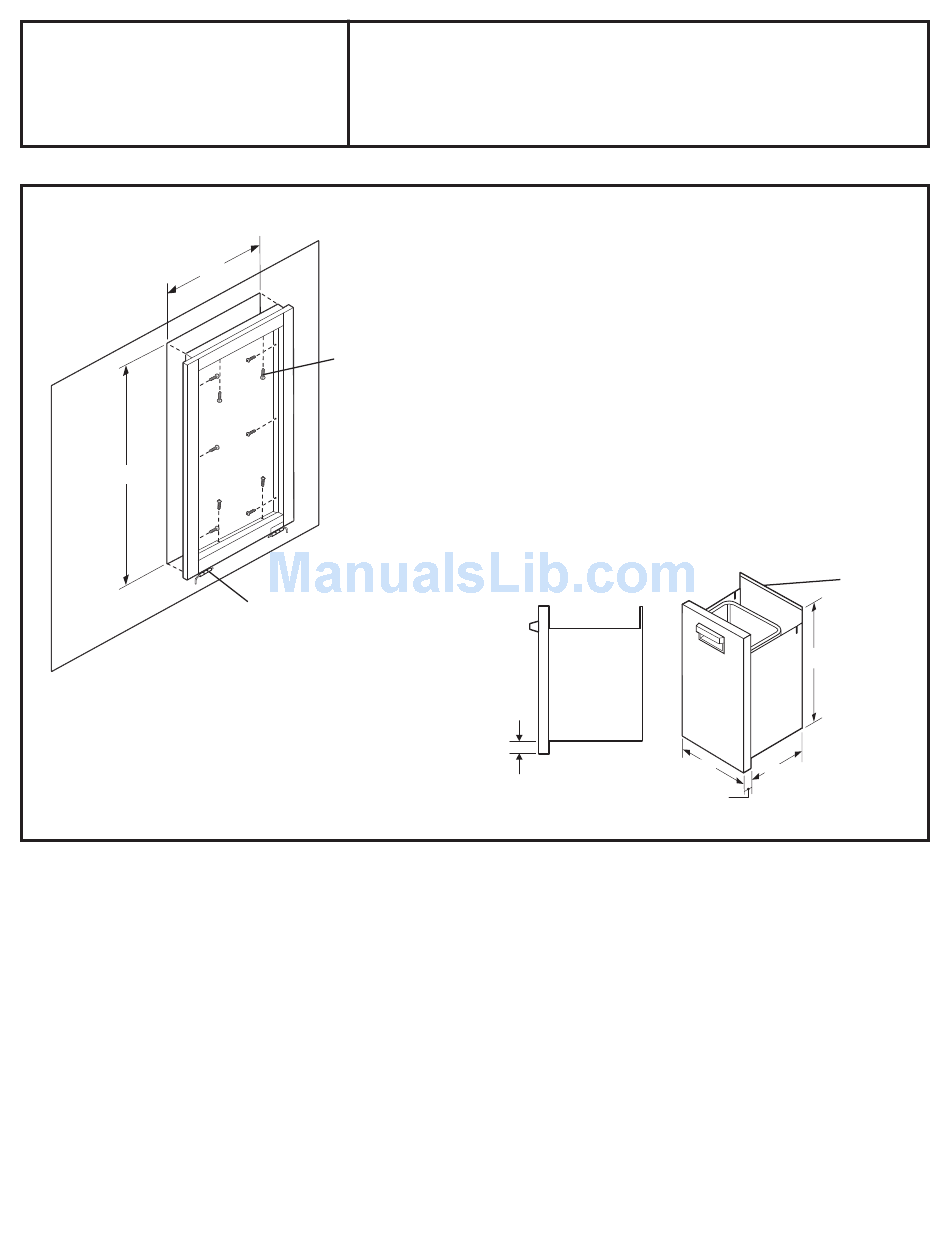

• Cut the opening to the dimensions shown. Reinforce
the inside of the opening using at least 1 " wide
material surround to accept the frame-mounting
screws.
NOTE: If you are installing another accessory into
the same enclosure, measure and cut the openings
to accommodate the bottom overlaps and align
them evenly across the bottom.
• Separate the mounting frame from the trash bin
door. Pull tab ends of the spring hinge pins outward
to disengage the bin.
• Insert the frame through the opening.
• Install 10 screws (provided).
• Tilt the trash bin rear retaining lip into the frame first.
• Secure the trash bin to the frame by engaging the
spring hinge pins at the bottom.
Overlap
22
Retaining Lip
26"
18"
12-1/2"
1" Thick
Door
