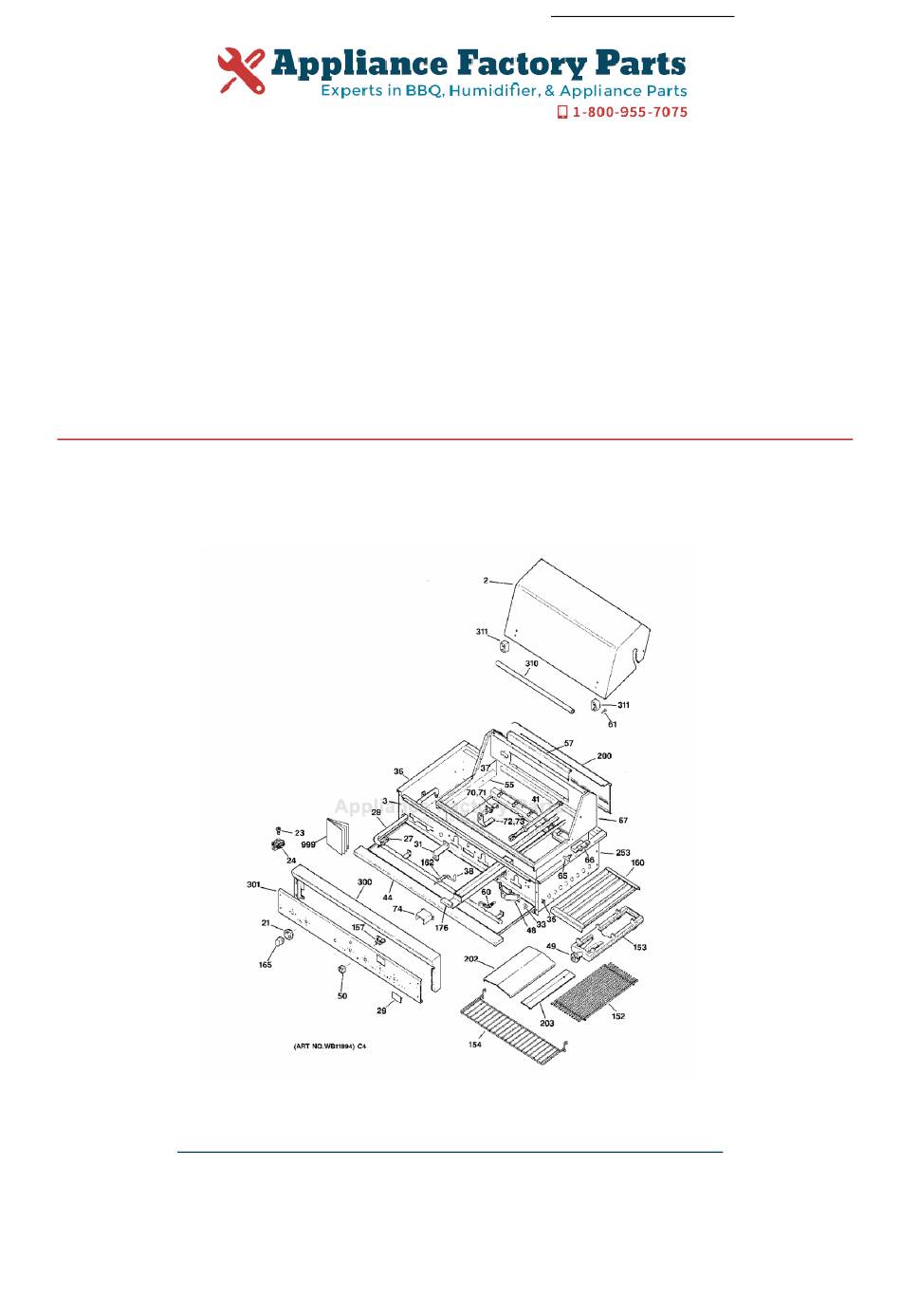

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. GE ZGG48N40CSS Owner's Manual Shop genuine replacement parts for GE ZGG48N40CSS Find Your GE Grill Parts - Select From 85 Models -------- Manual continues below --------...
- Page 2 GE Monogram ® Use and Care Guide Stainless Steel Professional 24″ , 27″ , 36″ & 48″ Outdoor Cooking Center www.monogram.com...
- Page 3 The information on the following pages will help you operate and maintain your cooking center properly. If you have any other questions—please call the GE Answer Center® 800.626.2000. In Canada, please call 1.888.880.3030. Visit our Website at www.monogram.com.
- Page 4 Safety Precautions Stainless Steel Outdoor Cooking Center FOR YOUR SAFETY WARNING If you smell gas: Do not try lighting this appliance without reading the lighting 1. Shut off gas to the appliance. instructions contained in this 2. Extinguish any open flame. Use and Care Guide.
- Page 5 If you do not understand something or need you operate and maintain your new cooking more help, call: using your center properly. cooking GE Answer Center® Keep it handy for answers to your questions. 800.626.2000 center 24 hours a day, 7 days a week 1.888.880.3030 in Canada.
- Page 6 Important Safety Instructions Stainless Steel Outdoor Cooking Center IMPORTANT SAFETY NOTICE • The California Safe Drinking Water and • Gas appliances can cause minor exposure to Toxic Enforcement Act requires the four of these substances, namely benzene, Governor of California to publish a list of carbon monoxide, formaldehyde and soot, substances known to the state to cause caused primarily by the incomplete...
- Page 7 Important Safety Instructions Stainless Steel Outdoor Cooking Center SAFETY PRECAUTIONS • Use this appliance only for its intended use • When using the range-top burners always use as described in this guide. flat-bottomed pans which are large enough to cover the burner. Adjust the flame so that it •...
- Page 8 SAFETY PRECAUTIONS • At least once a year, the unit should be • Some 27″ , 36″ and 48″ professional grills inspected for the presence of spiders, spider utilize Gourmet Radiant™ Trays to evenly webs or other insects. The burner area is a distribute heat and to minimize cooking flare common and desired spider haven and can ups.
- Page 9 Features of Your Cooking Center Stainless Steel Outdoor Cooking Center Design 12 13 information (Not all features are on all models. Appearance may vary throughout this Guide.) With Rotisserie Without Rotisserie With Rotisserie Without Rotisserie ZGG48L31 ZGG48L30 ZGG48N31 ZGG48N30 ZGG36L21 ZGG36L20 ZGG48L42 ZGG48L40...
- Page 10 The Grill Stainless Steel Outdoor Cooking Center General The grill section consists of a large cast iron burner or burners (depending on model), a information series of stainless steel heat baffles (on some models), a bed of natural lava rocks or ceramic Grill rack briquettes, or Gourmet Radiant™...
- Page 11 The Grill Stainless Steel Outdoor Cooking Center The grill is supplied with natural lava rock Place lava rocks in a single layer on top of the Lava rock (on some models). Because of the porosity of stainless steel radiant tray located under the (on some models) natural lava rock it is superior in its ability to grill rack.
- Page 12 To light Always keep your face and body as far away from the On some models, a match lighting hole is grill as possible when lighting. provided on the top left and right edges under the grill the lid. Open the lid and use the lighting hole Open the lid, push and turn the grill control on the left top edge.
- Page 13 The Grill Stainless Steel Outdoor Cooking Center Allumage Sur certains modèles, un trou d’allumage est fourni Toujours garder le visage et le corps aussi loin que possible du gril lors de l’allumage. sur les bords supérieurs gauche et droit sous le du gril couvercle.
- Page 14 Grilling requires high heat for searing and 1. Check to be certain the drip tray is in place. Using the proper browning. Most foods are cooked at the grill 2. Light the grill using the instructions in the HI heat setting for the entire cooking time. To light the grill section of this guide.
- Page 15 The Grill Stainless Steel Outdoor Cooking Center This is a suggested guide only. There are many variables that will affect cooking performance. These include Grilling wind, temperature, humidity and cut of meat. guide Weight/ Flame Approximate Food Thickness Size Time Comments Fresh Vegetables Medium...
- Page 16 Range-Top Burners Stainless Steel Outdoor Cooking Center Range-top Some cooking centers are equipped with heavy cast iron burners. Each is rated at 15,000 BTU burners and has a rotary spark igniter for efficient lighting. (on some models) The burner grates are porcelain enamel over cast iron for durability.
- Page 17 The Rotisserie System Stainless Steel Outdoor Cooking Center Rotisserie The rotisserie system is designed to cook items The rotisserie burner (on some models) is an from the back of the grill using infrared heat. infrared type which provides intense searing system radiant heat.
- Page 18 The Rotisserie System Stainless Steel Outdoor Cooking Center On 24″ models the motor is mounted by sliding Assembly it down into place in the metal channel attached to the right side of the grill. The skewer is connected to the motor assembly by placing the pointed end through the motor access hole in the grill and into the motor.
- Page 19 The Rotisserie System Stainless Steel Outdoor Cooking Center 1. Open the lid. To setup the grill for 2. Remove the grill racks. 3. Remove the front large stainless steel rotisserie radiant tray with briquettes. ″ models only) 4. Remove the back small stainless steel radiant tray with briquettes and place it into the rotisserie cooking position by sliding it into the rotisserie cooking slots.
- Page 20 Open the lid. Push the control knob to the To light the LITE position. rotisserie Press the safety valve button, hold in, and burner begin turning the rotary ignitor button located next to the control knob. It may be necessary to (on some models) turn the ignitor knob several times until the burner lights.
- Page 21 The Smoker System Stainless Steel Outdoor Cooking Center Tiles For the 27″ models, the smoke flavor tray is The smoke Rotisserie located directly beneath the rotisserie burner. burner flavor tray It is a stainless steel tray which is designed to hold wood chips or herbs for adding a smoke (on some models) flavor to foods.
- Page 22 The Smoker System Stainless Steel Outdoor Cooking Center To light the Open the lid and remove the smoker tray. Locate the burner visually by looking through the cut- smoker burner out in the valve panel. Push and turn the control (on some models) knob to the LITE position and immediately turn the smoker rotary ignitor knob (for 36″...
- Page 23 Care and Cleaning Stainless Steel Outdoor Cooking Center Grill Do not clean any of the grill components in a Grill components should be cleaned by hand self-cleaning oven or in a dishwasher. using warm sudsy water and a Scotch Brite® pad. components A brass bristle grill brush may also be used.
- Page 24 Gourmet The Gourmet Radiant™ Trays are made from 304 stainless steel and can be removed from Radiant™ the grill when cool. Trays Clean by hand using warm sudsy water and a (on some models) Scotch Brite® pad. A brass bristle grill brush may also be used.
- Page 25 Care and Cleaning Stainless Steel Outdoor Cooking Center Replacing Before replacing an igniter, perform this If there is a spark, examine the wire of the simple test. electrode for cracks and cuts. Also examine a rotary the electrode for grease and debris or see if the igniter 1.
- Page 26 Burner To remove the range-top burners (on some models), remove the top grates. Lift out removal aeration pan from around the burners. Lift and (on some models) remove the front and rear range-top burners. (continued) The smoker burner (on some models) can be removed and cleaned by unplugging the igniter wire and lifting out the burner.
- Page 27 Care and Cleaning Stainless Steel Outdoor Cooking Center Stainless Do not use a steel wool pad; it will scratch the towels. Apply cleaner with a damp sponge, stainless steel surface. rinse thoroughly and dry. Always scrub lightly steel in the direction of the grain. surfaces Clean with hot soapy water.
- Page 28 The Problem Solver Stainless Steel Outdoor Cooking Center Questions? PROBLEM POSSIBLE CAUSE Use this GRILL WON’T LIGHT • Check to see if other burners on the unit operate. WHEN THE ROTARY problem • Remove the grill rack and the stainless steel radiant tray, and watch IGNITER IS TURNED the igniter tip.
- Page 29 800.626.2000 Service Contracts You can have the secure feeling that GE Consumer Service will still be there after your warranty expires. Purchase a GE contract while your warranty is still in effect and you’ll receive a substantial discount. With a multiple-year contract, you’re assured of future In the USA: service at today’s prices.
- Page 30 Place 1st Class Letter Stamp Here General Electric Company Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150...
- Page 31 The need more information contact you in the service number in the in the USA, call the unlikely event of a USA: 800.444.1845. In GE Answer Center ® safety modification. Canada: 1.888.880.3030. 800.626.2000. In Canada call 1.888.880.3030 Important: To ensure that your product is registered, mail the separate product registration card.
- Page 32 Warranty for customers in Canada Stainless Steel Outdoor Cooking Center YOUR MONOGRAM OUTDOOR COOKING CENTER WARRANTY Staple sales slip or cancelled check here. Proof of original purchase date is needed to obtain service under warranty. WHAT IS FULL ONE-YEAR WARRANTY COVERED For one year from date of original purchase, we will provide, free of charge, parts and service labor in your home to repair or replace any part of the cooking center that fails because of a...
- Page 33 To know what your legal rights are in your state, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. If further help is needed concerning this warranty, write: Manager—Consumer Affairs, GE Appliances, Louisville, KY 40225 ZGG24L20 ZGG36N20...
