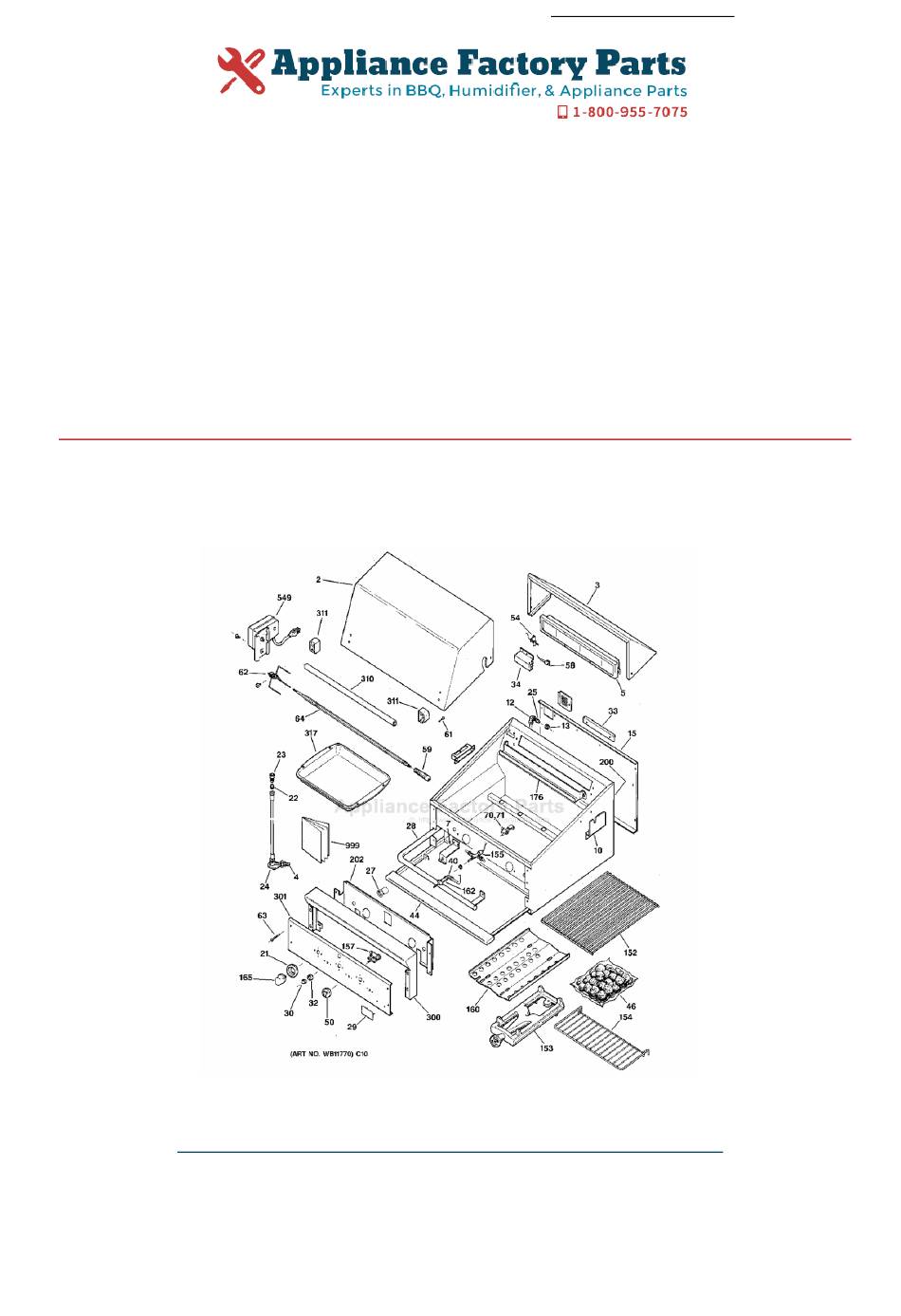

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. GE ZGG27L21ASS Owner's Manual Shop genuine replacement parts for GE ZGG27L21ASS Find Your GE Grill Parts - Select From 85 Models -------- Manual continues below --------...
- Page 2 ® GE Monogram Use and Care Guide Stainless Steel Professional 24″ , 27″ , 36″ & 48″ Outdoor Cooking Center www.geappliances.com...
- Page 3 The information on the following pages will help you operate and maintain your cooking center properly. If you have any other questions—please call the GE Answer Center® 800.626.2000. In Canada, please call 1.888.880.3030. Contents Problem Solver .
- Page 4 Safety Precautions Stainless Steel Outdoor Cooking Center FOR YOUR SAFETY WARNING If you smell gas: Do not try lighting this appliance without reading the lighting 1. Shut off gas to the appliance. instructions contained in this 2. Extinguish any open flame. Use and Care Guide.
- Page 5 If you do not understand something or need you operate and maintain your new cooking more help, call: using your center properly. cooking GE Answer Center® Keep it handy for answers to your questions. center 800.626.2000 24 hours a day, 7 days a week 1.888.880.3030 in Canada.
- Page 6 Important Safety Instructions Stainless Steel Outdoor Cooking Center IMPORTANT SAFETY NOTICE • The California Safe Drinking Water and • Gas appliances can cause minor exposure to Toxic Enforcement Act requires the four of these substances, namely benzene, Governor of California to publish a list of carbon monoxide, formaldehyde and soot, substances known to the state to cause caused primarily by the incomplete...
- Page 7 Important Safety Instructions Stainless Steel Outdoor Cooking Center SAFETY PRECAUTIONS • Use this appliance only for its intended use • When using the range-top burners always use as described in this guide. flat-bottomed pans which are large enough to cover the burner. Adjust the flame so that it •...
- Page 8 SAFETY PRECAUTIONS • At least once a year, the unit should be • The 27˝ , 36˝ and 48˝ professional grills are inspected for the presence of spiders, spider designed for a single layer of lava rock to webs or other insects. The burner area is a be spread evenly over the stainless steel common and desired spider haven and can radiant tray above the grill burners.
- Page 9 Features of Your Cooking Center Stainless Steel Outdoor Cooking Center Design 12 13 information (Not all features are on all models. Appearance may vary throughout this Guide.) With Rotisserie Without Rotisserie With Rotisserie Without Rotisserie ZGG48L31 ZGG48L30 ZGG48N31 ZGG48N30 ZGG36L21 ZGG36L20 ZGG36N21 ZGG36N20...
- Page 10 The Grill Stainless Steel Outdoor Cooking Center General The grill section consists of a large cast iron burner or burners (depending on model), a information series of stainless steel heat baffles (on some models), a bed of natural lava rocks or ceramic Grill rack briquettes and a porcelain enameled heat retaining grill rack(s).
- Page 11 The Grill Stainless Steel Outdoor Cooking Center The grill is supplied with natural lava rock Place lava rocks in a single layer on top of the Lava rock (on some models). Because of the porosity of stainless steel radiant tray located under the (on some models) natural lava rock it is superior in its ability to grill rack.
- Page 12 To light Make sure that the match is adjacent to the Always keep your face and body as far away from the burner ports. (On 24″ models, open the lid grill as possible when lighting. the grill and use the lighting hole on the left top Open the lid, push and turn the grill control edge.)Push and turn the control knob, which is knob to the LITE position and immediately...
- Page 13 The Grill Stainless Steel Outdoor Cooking Center Grilling requires high heat for searing and 1. Check to be certain the drip tray is in place. Using the proper browning. Most foods are cooked at the grill 2. Light the grill using the instructions in the HI heat setting for the entire cooking time.
- Page 14 This is a suggested guide only. There are many variables that will affect cooking performance. These include Grilling wind, temperature, humidity and cut of meat. guide Weight/ Flame Approximate Food Thickness Size Time Comments Fresh Vegetables Medium 12 to 20 min. Slice.
- Page 15 Range-Top Burners Stainless Steel Outdoor Cooking Center Range-top Some cooking centers are equipped with heavy cast iron burners. Each is rated at 15,000 BTU burners and has a rotary spark igniter for efficient lighting. (on some models) The burner grates are porcelain enamel over cast iron for durability.
- Page 16 Rotisserie The rotisserie system is designed to cook items The rotisserie burner (on some models) is an from the back of the grill using infrared heat. infrared type which provides intense searing system radiant heat. This intense heat is magnificent The rotisserie motor is equipped with metal (on some models) for searing in the natural juices and nutrients...
- Page 17 The Rotisserie System Stainless Steel Outdoor Cooking Center On 24″ models the motor is mounted by sliding Assembly it down into place in the metal channel attached to the right side of the grill. The skewer is connected to the motor assembly by placing the pointed end through the motor access hole in the grill and into the motor.
- Page 18 1. Open the lid. To setup the 2. Remove the grill racks. grill for 3. Remove the front large stainless steel rotisserie radiant tray with briquettes. ″ models only) 4. Remove the back small stainless steel radiant tray with briquettes and place it into the rotisserie cooking position by sliding it into the rotisserie cooking slots.
- Page 19 The Rotisserie System Stainless Steel Outdoor Cooking Center Open the lid. Push the control knob to the To light the LITE position. rotisserie Press the safety valve button, hold in, and burner begin turning the rotary ignitor button located next to the control knob. It may be necessary to (on some models) turn the ignitor knob several times until the burner lights.
- Page 20 The Smoker System Stainless Steel Outdoor Cooking Center Tiles For the 27″ models, the smoke flavor tray is The smoke Rotisserie located directly beneath the rotisserie burner. burner flavor tray It is a stainless steel tray which is designed to hold wood chips or herbs for adding a smoke (on some models) flavor to foods.
- Page 21 Care and Cleaning Stainless Steel Outdoor Cooking Center Grill rack(s) The easiest way to clean the grill is immediately For harder baked-on food particles, remove the after cooking is completed and after turning grill rack and soak for about one hour in warm off the flame.
- Page 22 Burner The range-top burner grates are porcelain enamel over cast iron for durability. To avoid grates burns do not clean a hot grate. They may be (on some models) wiped while in place with hot, soapy water, rinsed and wiped dry. Never immerse a hot grate in water.
- Page 23 Care and Cleaning Stainless Steel Outdoor Cooking Center Burner Ensure the gas supply is off, the knobs are in the Flash tubes OFF position and all surfaces are cool before removal removing a burner. (on some models) Venturi tube The grill and range-top burners are cast iron Lighter coated with porcelain enamel.
- Page 24 Rotisserie Keep the rotisserie motor electric cord away from the heated surface of the grill. When not in use remove and store the motor in a dry location. Clean the skewer in warm sudsy water. Burner Clean the exterior of the burner(s) with a wire brush.
- Page 25 The Problem Solver Stainless Steel Outdoor Cooking Center Questions? PROBLEM POSSIBLE CAUSE Use this GRILL WON’T LIGHT • Check to see if other burners on the unit operate. WHEN THE ROTARY problem • Remove the grill rack and the stainless steel radiant tray, and watch IGNITER IS TURNED the igniter tip.
- Page 26 Notes Stainless Steel Outdoor Cooking Center...
- Page 27 Notes Stainless Steel Outdoor Cooking Center...
- Page 29 800.626.2000 Service Contracts You can have the secure feeling that GE Consumer Service will still be there after your warranty expires. Purchase a GE contract while your warranty is still in effect and you’ll receive a substantial discount. With a multiple-year contract, you’re assured of future In the USA: service at today’s prices.
- Page 30 Place 1st Class Letter Stamp Here General Electric Company Warranty Registration Department P.O. Box 34070 Louisville, KY 40232-4070...
- Page 31 Our service the GE Answer Center ® unlikely event of a number is 800-444-1845. 800.626.2000. safety modification. Important: To ensure that your product is registered, fold and mail this form.
- Page 32 Warranty for customers in Canada Stainless Steel Outdoor Cooking Center YOUR MONOGRAM OUTDOOR COOKING CENTER WARRANTY Staple sales slip or cancelled check here. Proof of original purchase date is needed to obtain service under warranty. WHAT IS FULL ONE-YEAR WARRANTY COVERED For one year from date of original purchase, we will provide, free of charge, parts and service labor in your home to repair or replace any part of the cooking center that fails because of a...
- Page 33 To know what your legal rights are in your state, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. If further help is needed concerning this warranty, write: Manager—Consumer Affairs, GE Appliances, Louisville, KY 40225 ZGG24L20 ZGG36N20...
