FR
Le guide d'utilisation de
votre table de cuisson
EN
Hob operating guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DeDietrich G30

Summary of Contents for DeDietrich G30

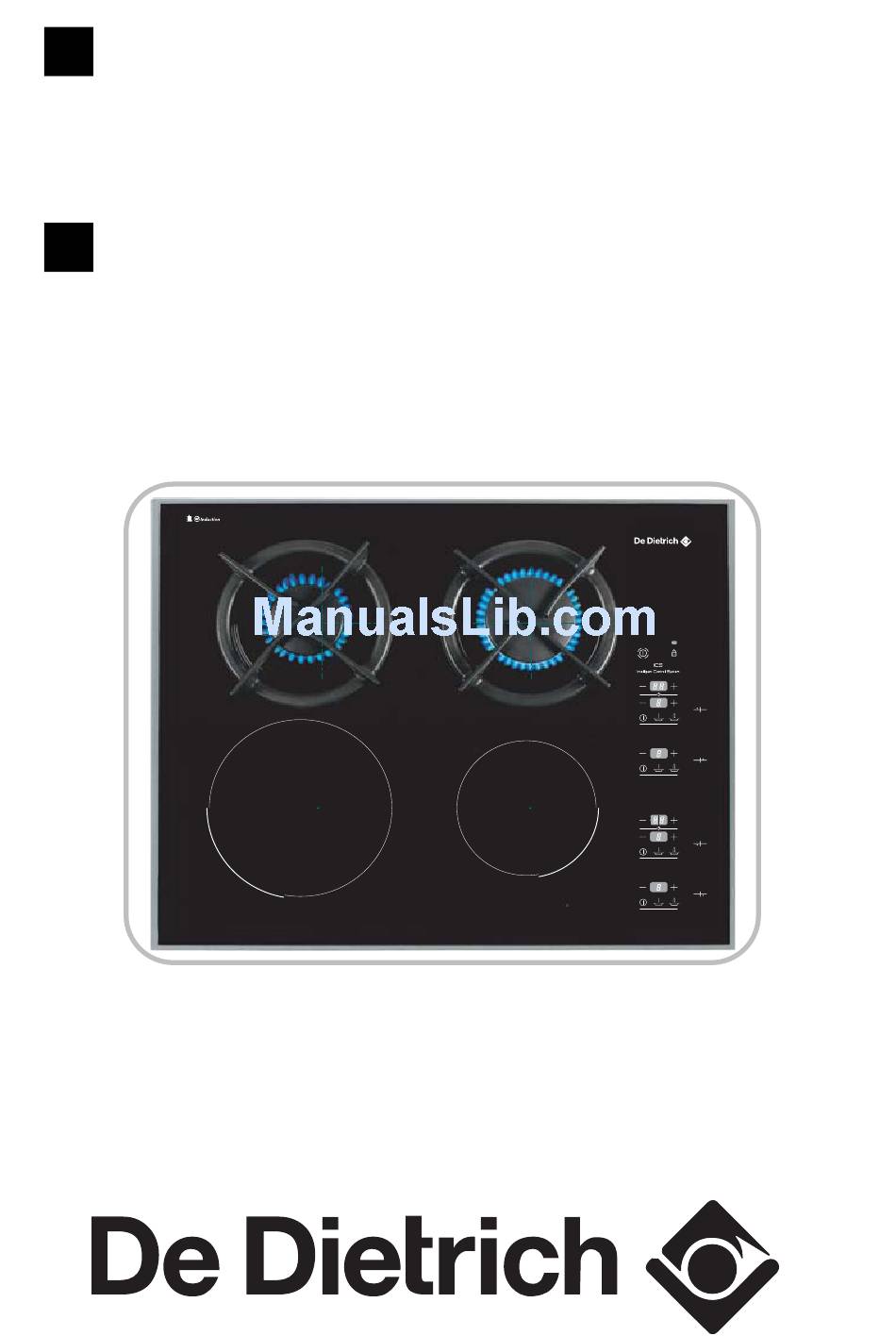

  • Page 1 Le guide d’utilisation de votre table de cuisson Hob operating guide...

  • Page 2: Table Of Contents

    Contents Your hob in complete safety What does your hob look like? What does your control panel look like? Easily install your hob Flush-mounting advice 35-37 Connecting the gas supply 38-39 Changing the gas supply 40-43 Connecting the electricity supply Use your hob in complete simplicity How do you switch on and adjust the power of the rings? How do you use the burner/ring timer?
  • Page 3 ditorial Dear Customer, You have just bought a DE DIETRICH hob. Thank you for your custom. Our research teams have designed a new generation of appliances, which with their quality, a designer look and a technological advances are outstanding products revealing a unique know-how.

  • Page 4: Your Hob In Complete Safety

    our hob in complete safety - We have designed this cooking hob for - - This appliance is not intended to be used by persons (including use by private individuals in their homes. children) with reduced physical, - As part of our commitment to constantly sensory or mental abilities, or persons improving our products, we reserve the lacking experience or awareness,...

  • Page 5: What Does Your Hob Look Like

    What does your hob look like? High speed burner 3,1 kW* Semi-fast burner 1,5 kW* Semi-fast burner High speed burner 1.5 kW* 3.1 kW* Induction ringÿÿ Induction ring Induction ring (Ø 16 cm) Induction ring (Ø 21 cm) (Ø 16 cm) (Ø...

  • Page 6: What Does Your Control Panel Look Like

    What does your control panel look like? OCK WARNING LIGHT ONTROL PANEL LOCKING UNLOCKING KEY AIN OFF KEY IMER TIME DISPLAY IMER SETTING ISPLAY OF THE POWER LEVEL SELECTED AND RESIDUAL HEAT INDICATORS IRECT ACCESS TO PRESET REAR LEFT RING POWER LEVELS EAR LEFT RING ON OFF KEY URNER POWER LEVEL ADJUSTING KEYS...

  • Page 7: Easily Install Your Hob

    Easily install your hob lush-mounting advice Model Depth Width Thickness Depends on the unit Unit cutout 56 cm 49 cm Total dimensions above the work 65 cm 51.8 cm 5 cm surface Total dimensions below the work 55 cm 47 cm 5.1 cm surface The hob must only be fitted by...
  • Page 8 Easily install your hob lush-mounting advice The hob must be flush-mounted in the top of a support unit at least 3 cm thick, made from a material that is heat resistant or that is covered in such a material. To avoid inhibiting the handling of cooking utensils, there should be no units or walls within 30 cm of the hob to the left and right.
  • Page 9 Easily install your hob lushing-mounting advice (continued) ● Case of flush-mounting above a unit cm min 4 cm mini with a door or draw (Fig. 1). Make sure that the unit's cross piece does not prevent the passage of air. If necessary, create a bevel.
  • Page 10 Easily install your hob lush-mounting advice (continued) ● Case of flush-mounting above an oven (Fig. 2) in a low position. IF THE APPLIANCE BENEATH YOUR MIN 4 mm HOB CAUSES OVERHEATING (Fig. 3) The hob is equipped with safety mecha- nisms, in particular an anti-overheating device, which will detect a high temperature: a series of small lines or an F7 will be dis-...

  • Page 11: Connecting The Gas Supply

    Easily install your hob onnecting the gas supply ● Preliminary remarks All soft pipes and hoses whose lifetime is limited must have a maximum leng- th of 2 metres and be accessible along their entire length. They must be re- placed before the end of their lifetime (marked on the pipe).
  • Page 12 Easily install your hob onnecting the gas supply (continued) ● Possible connections BUTANE/PROPANE Compulsory pressure regulator GAS SUPPLY FROM A CYLINDER OR TANK (BUTANE/PROPANE GAS). For the user's safety, you must only choose one of the following 3 connec- tions: - Connection with a rigid pipe made from copper with screw on mechanical connectors (G1/2 gas standard mark).

  • Page 13: Changing The Gas Supply

    Easily install your hob hanging the gas supply This hob comes preset for natural On each gas supply change, tick the gas. box corresponding to the new gas on the label in the plastic bag (see the The injectors needed for adaptation to "gas properties"...
  • Page 14 Easily install your hob hanging the gas supply (continued) ● Changing from natural gas to butane/propane (continued). • Replace with the injectors provided in the plastic bag, in compliance with Line the table of gas properties at the end of this section; to do this: Wrench ➪...
  • Page 15 Easily install your hob hanging the gas supply (continued) ● Changing from Butane/Propane gas to natural gas During this operation, TO BE PERFOR- MED BEFORE CONNECTING, you must: ➊ Turn the gas changing switch TO THE RIGHT. ❷ Adapt the gas connection. ❸...
  • Page 16 Easily install your hob hanging the gas supply (continued) ● Gas characteristics FR-GB FR-GB FR-GB ES-PT ES-PT ES-PT Appliance intended to be installed for use with: Butane Propane Natural Natural FR ........Cat : II2E+3+ GB - ES - PT .....Cat : II2H3+ Hourly rate below 28-30 mbar 37 mbar 20 mbar...

  • Page 17: Connecting The Electricity Supply

    Easily install your hob onnecting the electricity supply ● Gas hob ABLE CROSS-SECTION TO BE USED 220-240 V~ - 50 Hz • This hob comes with a power cable (H05V2V2F, cross-section 1.5 mm2) with 3 conductors (including 1 for the earth: yellow/green).

  • Page 18: Use Your Hob In Complete Simplicity

    Use your hob in complete simplicity ow do you switch on and adjust the power of the rings? • Select the "GAS" or "INDUCTION" ring that you want to use by pressing the corresponding key (fig. 1). ➡ The display for the power level selec- Fig.

  • Page 19: How Do You Use The Burner/Ring Timer

    Use your hob in complete simplicity ow do you use the burner/ring timer? The front left "INDUCTION" • rings and rear left "GAS" rings have a timer (maximum duration of 99 minutes). They may be used without it, however. Ignite the ring as indicated on the •...

  • Page 20: Which Pans Are Compatible With Gas Rings

    Use your hob in complete simplicity hich pans are compatible with gas rings? • Recommended pan diameters: Large burner Medium-sized burner HIGH SPEED SEMI-FAST 18 to 28 cm 16 to 22 cm Adjust the ring of flames so that they do not go over the edge of the pan.

  • Page 21: Choosing Pans - Induction Safety

    Use your hob in complete simplicity hoosing pans - induction safety ● Which materials are ● hich pans are the most suitable? incompatible? You probably already have suitable LASS CERAMIC OR EARTHENWARE pans. PANS THOSE MADE FROM ALUMINIUM • Enamelled steel containers WITHOUT A SPECIAL BASE OR FROM with or without a non-stick COPPER OR CERTAIN NON...
  • Page 22 Use your hob in complete simplicity hoosing pans - induction safety (continued) ● Precautions for use • The hob must never be used as storage space. • When you use a pan with a non- For cooking, never use stick inside coating (such as Teflon) aluminium foil, or never directly without adding or with very little oil, place products packaged with...

  • Page 23: How Should You Clean Your Hob

    How should you clean your hob? Your hob is easier to clean before it has completely cooled down. However, you should never clean your appliance while it is in operation. Set all the controls to zero. PRODUCTS AND HOW DO I PROCEED? ACCESSORIES TO BE USED Injector...

  • Page 24: Trouble Shooting Minor Faults And Anomalies

    Trouble shooting minor faults and anomalies You may have a doubt about the performance of your hob ... this doesn't necessarily mean that there is a fault. In any case, check the following points: ERROR WHAT IS HAPPEN- WHAT SHOULD BE CODES ING? DONE?

  • Page 25: And Anomalies

    Trouble shooting minor faults and anomalies WHAT IS HAPPENING ? WHAT SHOULD BE DONE? ✓ Check the electrical connecting of the hob ➡ Igniting of the burners: ✓ Check that the electrodes are clean No sparks are produced when the keys are pressed ✓...

  • Page 26: Gas Cooking Guide

    Gas cooking guide PREPARATIONS Time Hig speed Semi- fast SOUPS Broths 8-10 minutes Thick soups FISH Court-bouillon 8-10 minutes Frozen fish 8-10 minutes SAUCES Hollandaise, bearnaise, bechamel, aurore 10 minutes VEGETABLES Chicory, Spinach Cooked garden peas 25-30 minutes Provencale-style tomatoes 15-20 minutes Fried potatoes Pasta...

  • Page 27: Induction Ring Cooking Guide

    Induction ring cooking guide...

  • Page 29: After Sales Service

    After Sales Service Any maintenance on your equipment should be undertaken by: -either your dealer, -or another qualified mechanic who is an authorized agent for the brand appliances. When making an appointment, state the full reference of your equipment (model, type and se- rial number).
