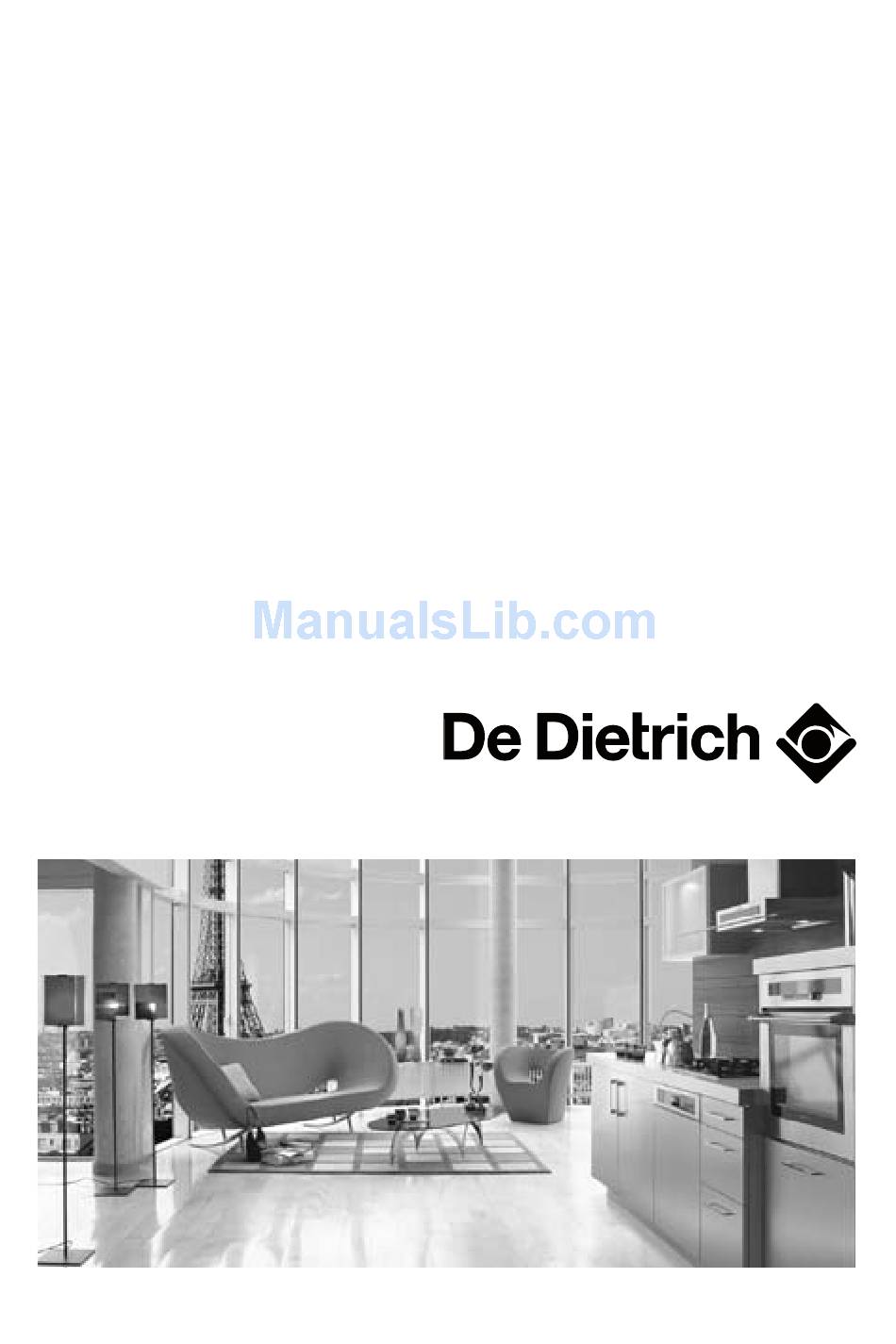

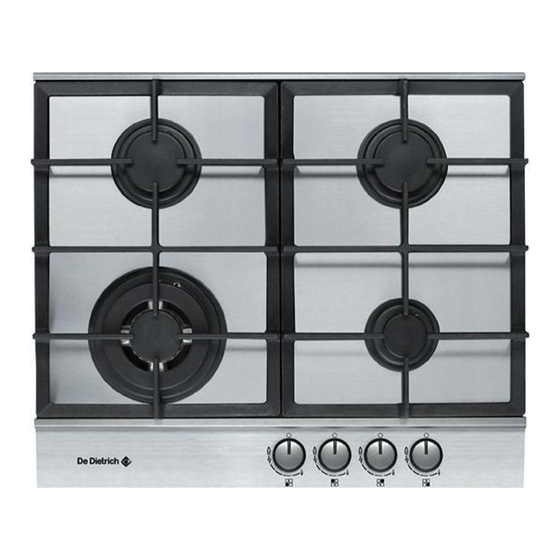

- Page 1 GUIDE D’INSTALLATION ET D’UTILISATION FR - Table de cuisson GUIDE FOR INSTALLATION AND USE GB - Cooking Hob...
- Page 2 (contact information at the end of this booklet). We also encourage you to visit our Web site www.dedietrich-electromenager.com where you will find our latest innovations as well as useful and complementary information.
-
Page 3: Table Of Contents
TABLE OF CONTENTS GENERAL NOTICE pag.4 INSTRUCTION FOR THE USER pag.5 Using the burners pag.5 Electric plate use pag.5 Cleaning pag.6 INSTRUCTION FOR THE INSTALLER pag.7 Installing the top pag.7 Fastening the top pag.7 Installation room pag.7 Gas connection pag.8 Electric connection pag.8 Replacing the nozzles... -
Page 4: General Notice
GENERAL NOTICE It is very important that you keep this booklet together with the equipment for any future consultation. If this equipment should be sold or transferred to another person, make sure that the new user receives the booklet, so that he can learn how to operate the appliance and read the corresponding notice. -
Page 5: Instruction For The User
INSTRUCTIONS FOR THE USER It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by qualified personnel, in conformity with the regulations in force. The specific instructions are described in the booklet section intended for the installer. -
Page 6: Cleaning
INSTRUCTIONS FOR THE USER After use the electric plate remains very hot for NB.: When operating for the first time, it is a prolonged period of time, do not tuch it and do necessary to eliminate any humidity or oil not place any object on top of the plate. -
Page 7: Instruction For The Installer
Turn the appliance upside down and lay the washer S along the external border (fig. 5). MODEL L (mm) P (mm) DTE714X / W / F / B DTE715X / W / F / B DTE772X / W / F / B DTG764X DTG775X DTE792X Fig.5... -
Page 8: Gas Connection
INSTRUCTIONS FOR THE INSTALLER room ventilation rules where appliance is installed provided with an effective ground connction in make reference to the legislation, in conformity compliance with the regulations and provisions of with the local regulations. the law. Grounding is compulsory. If the appliance is not equipped with a plug, apply a standardized plug to the power supply cable. -
Page 9: Replacing The Power Supply Cable
INSTRUCTIONS FOR THE INSTALLER MAINTENANCE type HO5VV-F or H05RR-F, complying with the regulations in force. The connection to the terminal board must be Replacing the power supply cable effected as shown in fig.10: If the power supply cable should be replaced, it is necessary brown cable L (phase) -
Page 10: Model
MODEL DTG764X DTG775X DTG795X DTE714X / W / F / B DTE715X / W / F / B DTE772X / W / F / B DTE792X 1 Rapid burner 3000 W 2 Semi-rapid burner 1750 W 3 Auxiliary burner 1000 W... -
Page 11: Technical Characteristic Tables
TECHNICAL CHARACTERISTIC TABLES TAPE BY NOMINAL NORMAL NOMINAL INJECTOR BURNERS PASS HEAT INPUT PRESSURE RATE DIAMETER DIAMETER N° DESCRIPTION mbar 1/100 mm 1/100 mm Max. Min. G30 / G31 28 - 30 / 37 3000 RAPID 115Y Reg. 3000 G30 / G31 28 - 30 / 37 1750 SEMI-RAPID... -
Page 12: After Sales Service
When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer’s nameplate attached to your equipment. For UK after sales service information please contact: www.dedietrich.co.uk De Dietrich UK office – tel: 01256 308000...
