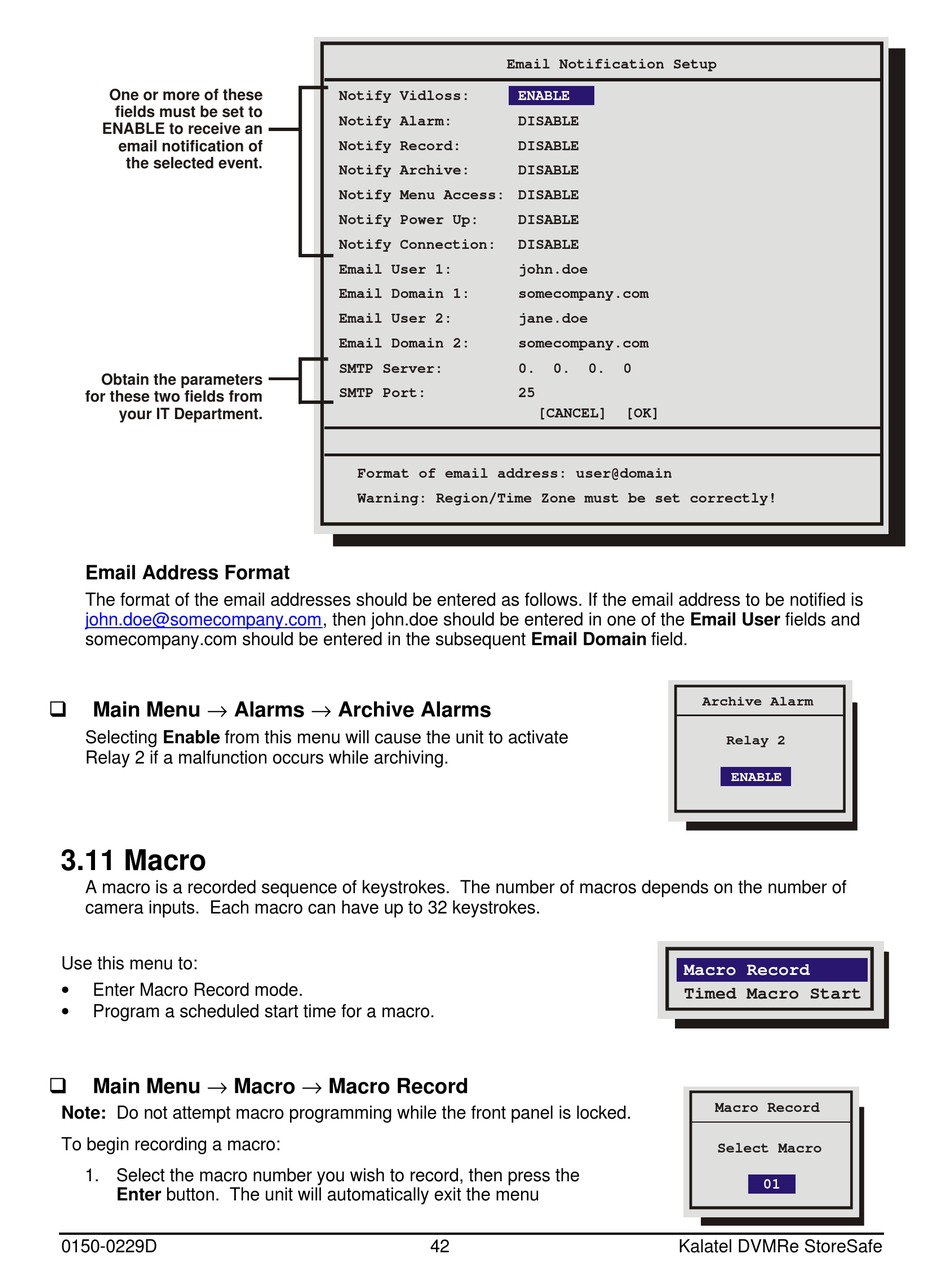

Macro - GE Interlogix Digital Video Multiplexer Recorder User Manual

One or more of these
fields must be set to
ENABLE to receive an
email notification of
the selected event.
Obtain the parameters
for these two fields from
your IT Department.
Email Address Format
The format of the email addresses should be entered as follows. If the email address to be notified is
john.doe@somecompany.com, then john.doe should be entered in one of the Email User fields and
somecompany.com should be entered in the subsequent Email Domain field.
q
Main Menu
Selecting Enable from this menu will cause the unit to activate
Relay 2 if a malfunction occurs while archiving.

3.11 Macro

A macro is a recorded sequence of keystrokes. The number of macros depends on the number of
camera inputs. Each macro can have up to 32 keystrokes.
Use this menu to:
Enter Macro Record mode.
Program a scheduled start time for a macro.
q
Main Menu
Note: Do not attempt macro programming while the front panel is locked.
To begin recording a macro:
1. Select the macro number you wish to record, then press the
Enter button. The unit will automatically exit the menu
0150-0229D
Notify Vidloss:
Notify Alarm:
Notify Record:
Notify Archive:
Notify Menu Access:
Notify Power Up:
Notify Connection:
Email User 1:
Email Domain 1:
Email User 2:
Email Domain 2:
SMTP Server:
SMTP Port:
Format of email address: user@domain
Warning: Region/Time Zone must be set correctly!
Alarms Archive Alarms
Macro Macro Record
Email Notification Setup
ENABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
john.doe
somecompany.com
jane.doe
somecompany.com
0. 0. 0.
25
[CANCEL]
42
0
[OK]
Archive Alarm
Relay 2
ENABLE
Macro Record
Timed Macro Start
Macro Record
Select Macro
01
Kalatel DVMRe StoreSafe
