2.6 Display Options

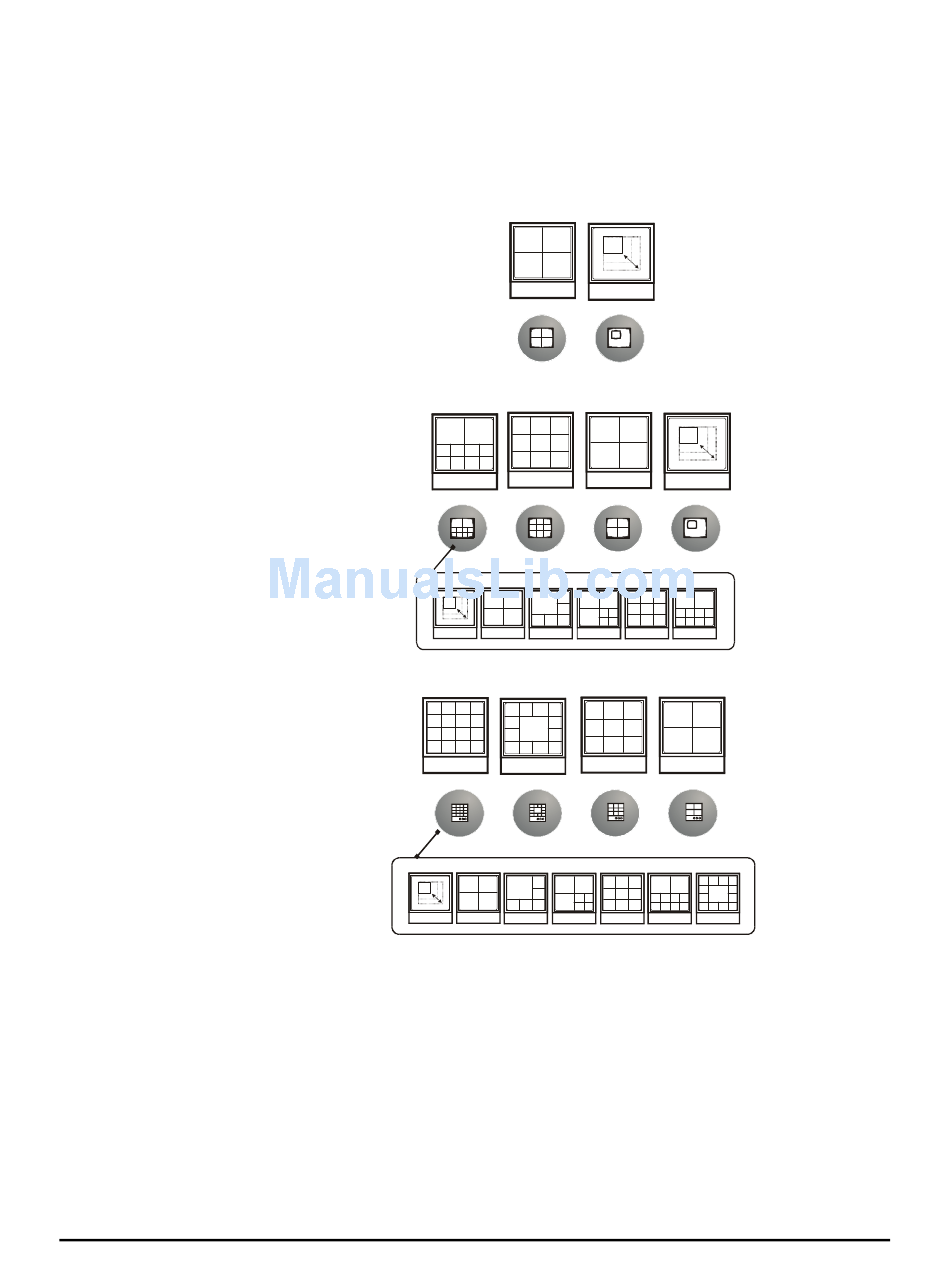

Available Multiscreen Displays
Press the Multiscreen buttons to activate the multiscreen display. Pressing the individual multiscreen
button will display the corresponding multiscreen. Pressing the 16-way or 10-way button repeatedly
will cycle through all the available multiscreens.
10-Channel
16-Channel
The multiscreen display is limited to the number of camera inputs on the unit.
Four-Channel unit: Only capable of displaying 4-way multiscreen and PIP.
Ten-Channel unit: Capable of displaying 10-way through 4-way multiscreen and PIP.
Sixteen-Channel unit: Capable of displaying 16-way through 4-way multiscreen and PIP.
The camera assignments for each multiscreen is retained (in non-volatile memory) for both Live and
Playback multiscreen mode on Monitor A.
PIP: Use the Jog/Shuttle to adjust the location and size of the PIP display. Please note, that the PIP
display is only available on Monitor A in Live mode.
0150-0229D
4-Channel
16-Way
PIP
21
4-Way
PIP
9-Way
4-Way
10-Way
4-Way 6-Way 7-Way
PIP
9-Way
13-Way
4-Way 6-Way 7-Way 9-Way
PIP
9-Way 10-Way
4-Way
10-Way 13-Way
Kalatel DVMRe StoreSafe
