ATM/POS Text Display
Pressing the Camera Number a third time displays an ATM/POS text display. This feature can be
used during live viewing mode to verify that StoreSafe is receiving ATM/POS text, or in Playback
mode to review recorded text and video.
This feature is not available in the standard model.
2.10 Triplex Mode
Triplex mode allows the display of both live and playback images to appear on Monitor A
simultaneously. Live images have gray borders, while playback images have black borders.
To enter Triplex mode, press the Play Forward button while in Play Forward mode. Alternatively, press
the Play Reverse button while in Play Reverse mode. Both the Play Forward LED and the Stop LED
turn on to indicate that the unit is in Triplex mode.
Monitor B always displays a fullscreen live display whenever Triplex mode is entered.
Play Forward
When in Play Forward mode and the Play Forward button is pressed, the unit will
enter the Triplex mode of operation. When Play Forward is pressed again, the
unit will revert back into the normal Playback mode. While in the Triplex mode, if
reverse play is in progress, the Play Forward button will change the playback
direction.
Reverse Play
When in Reverse Play mode and the Reverse Play button is pressed, the unit will
enter the Triplex mode of operation. When Reverse Play is pressed again, the
unit will revert back into the normal Playback mode. While in the Triplex mode, if
forward play is in progress, the Reverse Play button will change the playback
direction.
Fast Forward
During Triplex mode, rotate the Shuttle (the outer dial) clockwise to view
playback images at a higher than normal rate. Increasing the amount of rotation
increases the rate of playback. Live images are not affected.
Rewind
During Triplex mode, rotate the Shuttle counter-clockwise to view playback
images (in reverse) at a higher than normal rate. Increasing the amount of
rotation increases the rate of playback. Live images are not affected.
Freeze
During Triplex mode, pressing the Freeze button pauses all multiscreen images,
both Live and Playback.
Single Frame Advance & Single Frame Rewind
During Freeze or Pause mode, rotate the Jog (the inner dial) to view the frame
directly before or after the frame displayed on-screen. Only the playback images
are affected.
0150-0229D
25

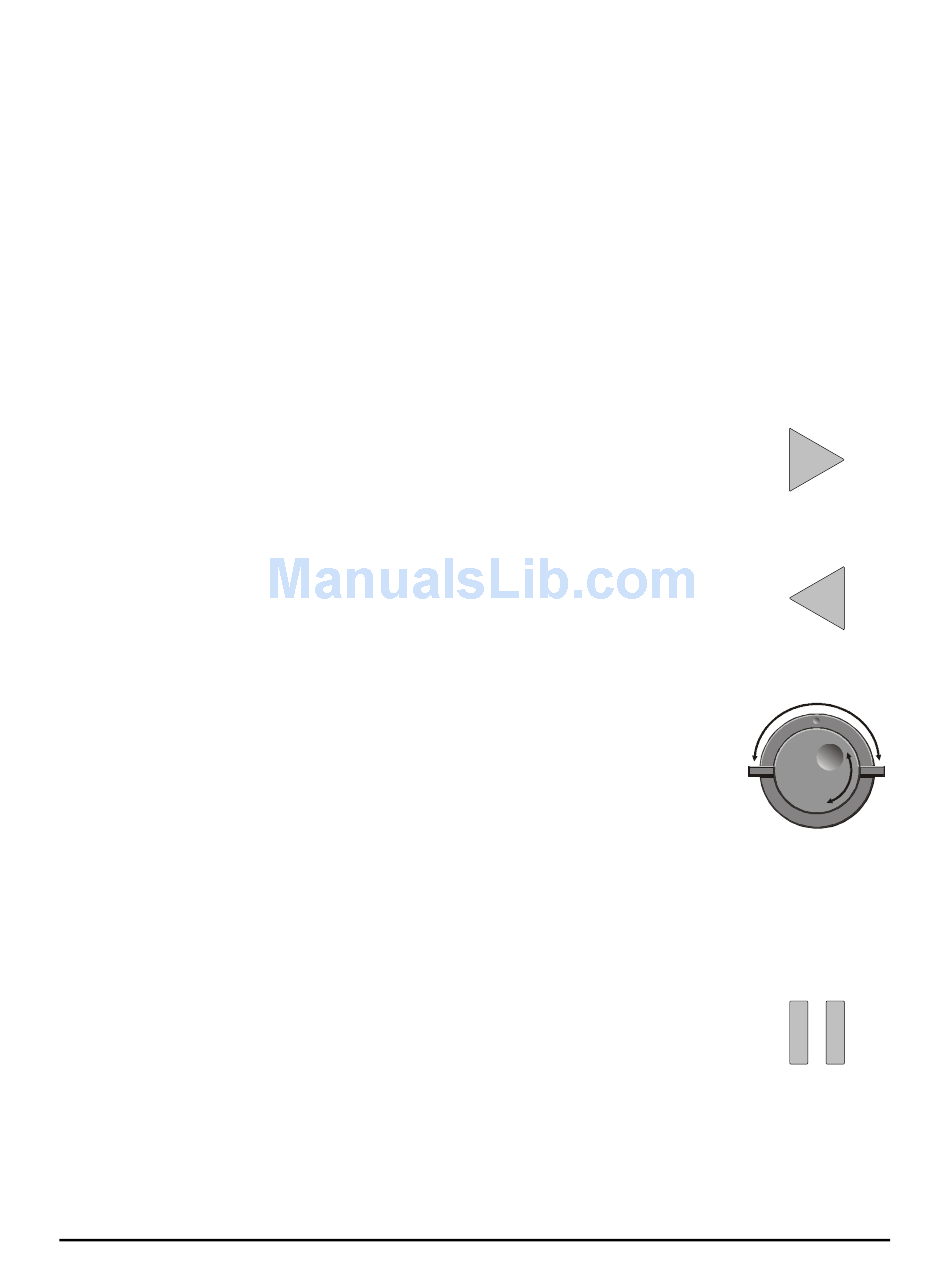

Play Forward
Button
Reverse Play
Button
Jog / Shuttle
Freeze Button
Kalatel DVMRe StoreSafe
