The water line can be routed through
Water
the floor or through an adjacent cabinet, as
Connection
close to the back wall as possible.
Location,
A 115 volt, 60 Hz. 15 or 20 amp power supply
Electrical
is required. An individual properly grounded
branch circuit or circuit breaker is recom-
mended, as noted on the rating plate. The
rating plate is located on the bottom of the
cabinet front of the fresh food compartment
and is visible when the door is opened.
Product
This monogram free-standing refrigerator
requires the following clearances for proper
Dimensions
air circulation, plumbing and electrical
& Clearances
connections.
If the refrigerator is to be installed in a corner:
• A 1-1/2" clearance between the case trim
• Allow 11-1/4" clearance on the freezer side
• On the fresh food side, drawers can be
Sides ................................ 5/8"
Top ..................................... 1"
Back ................................... 1"
and the adjacent wall on both sides of the
refrigerator will assure a 90° door opening
and access to all drawers.
for removal of ice bin.
removed by first disassembling door bins.
Or, allow 14" clearance to remove drawer
without disassembling the door bins.
Installation Preparation
Stainless Steel Refrigerator

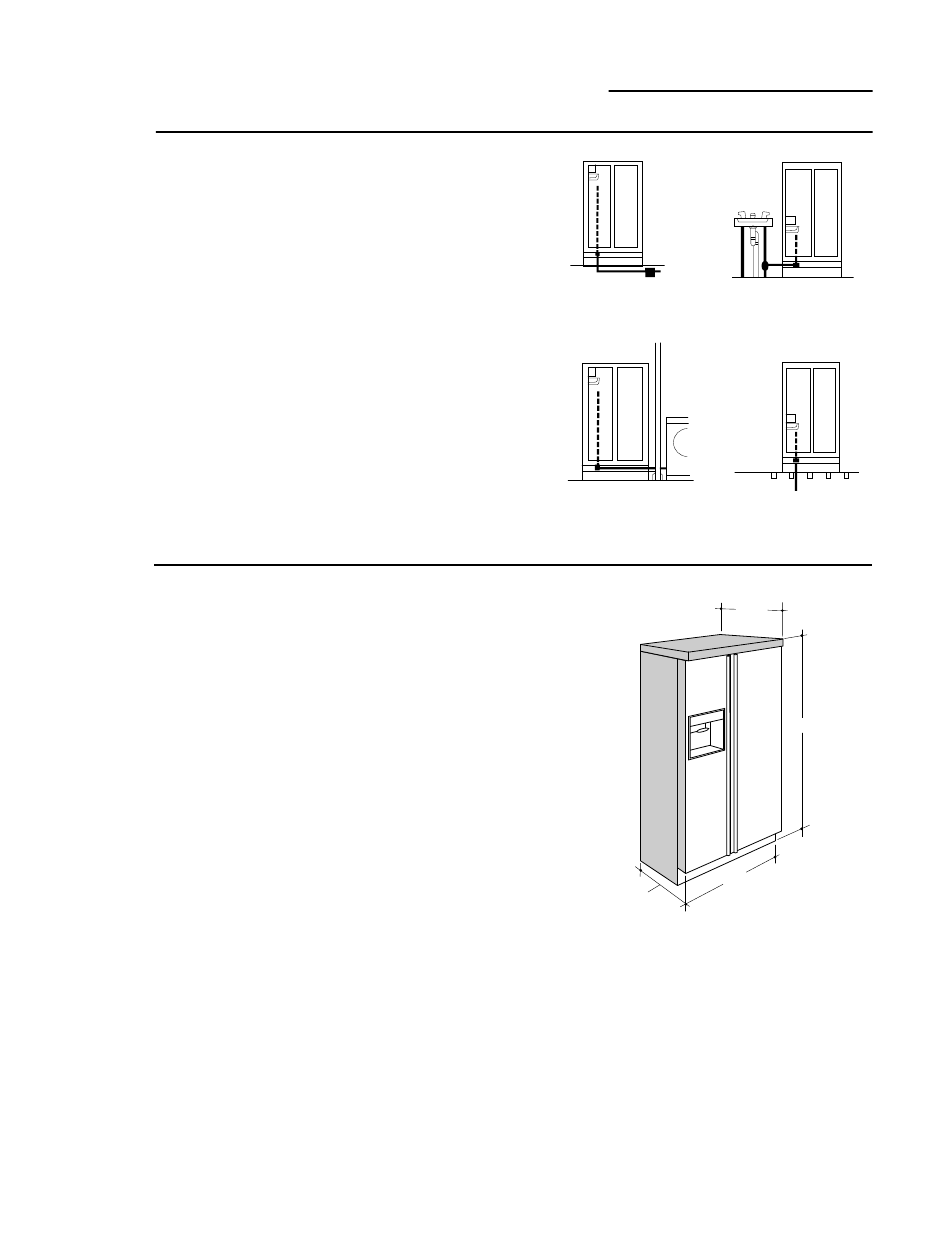

Through floor
to basement
cold water pipe
Through wall to
utility room cold
water pipe
35"
Including
Handles
Under sink
to cold
water pipe
In crawl
space under
house
32-1/2"
Case
Depth
71"
36"
