Installation Preparation

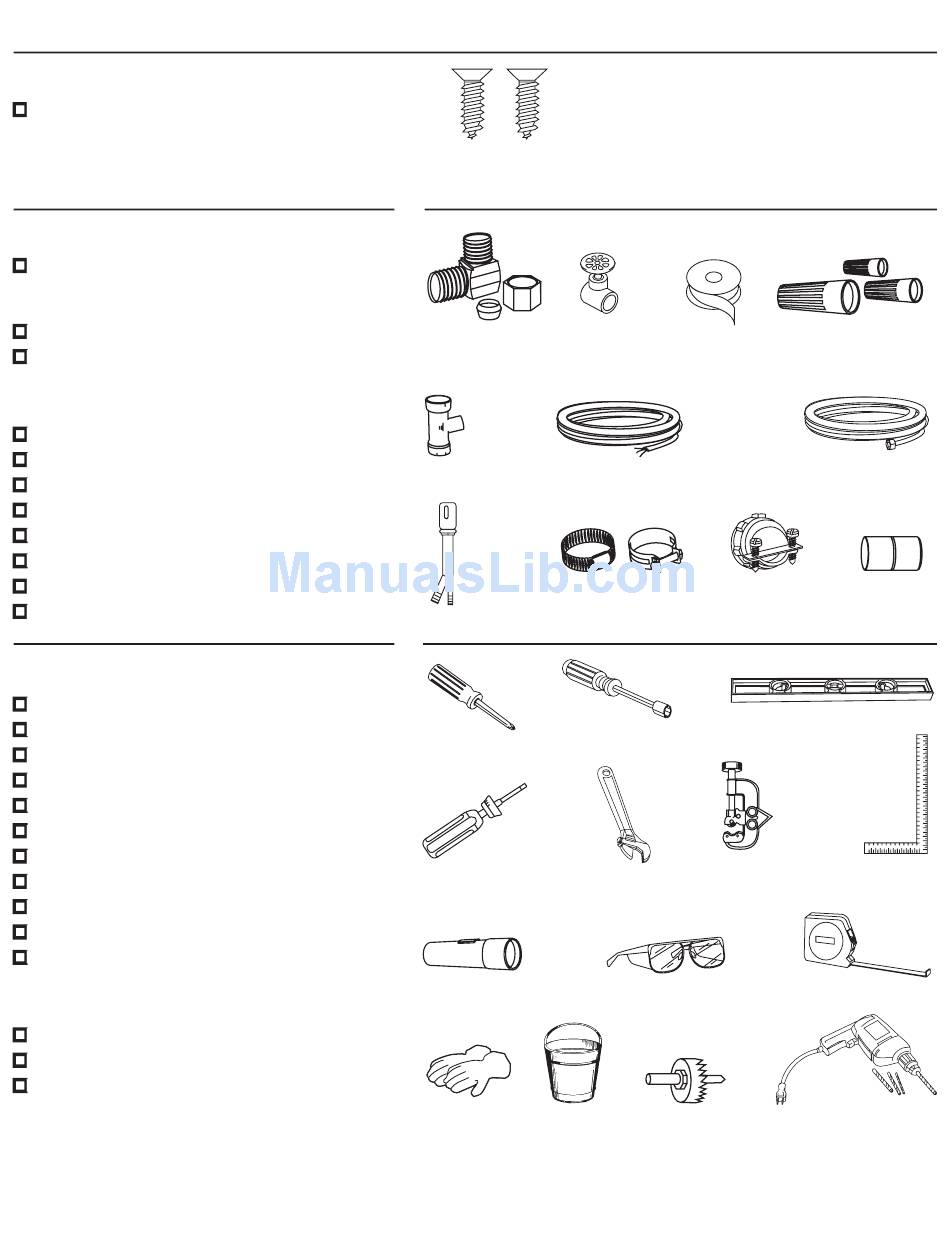

PARTS SUPPLIED:

Two #8 Phillips head wood screws, 5/8" long to Two #8 Phillips head wood screws, 5/8" long to
■
secure dishwasher to underside of countertop
(in literature package).

MATERIALS YOU WILL NEED:

Ferrule, compression nut and 90° Elbow (3/8" NPT Ferrule, compression nut and 90° Elbow (3/8" NPT
■
external thread on one end, opposite end sized to
fit water supply)
Thread seal tape Thread seal tape
■
UL Listed wire nuts (3) UL Listed wire nuts (3)
■
Materials For New Installations Only:
Air gap for drain hose, if required Air gap for drain hose, if required
■
Waste tee for house plumbing, if applicable Waste tee for house plumbing, if applicable
■
Electrical cable or power cord, if applicable Electrical cable or power cord, if applicable
■
Screw type hose clamps Screw type hose clamps
■
Strain relief for electrical connection Strain relief for electrical connection
■
Hand shut-off valve Hand shut-off valve
■
Water line 3/8" min. copper Water line 3/8" min. copper
■
Coupler for extending drain line, if applicable Coupler for extending drain line, if applicable
■

TOOLS YOU WILL NEED:

Phillips head screwdriver Phillips head screwdriver
■
5/16" and 1/4" nutdriver 5/16" and 1/4" nutdriver
■
T25 torque driver (PDW__II only) T25 torque driver (PDW__II only)
■
6" Adjustable wrench 6" Adjustable wrench
■
Level Level
■
Carpenters square Carpenters square
■
Measuring tape Measuring tape
■
Safety glasses Safety glasses
■
Flashlight Flashlight
■
Bucket to catch water when flushing the line Bucket to catch water when flushing the line
■
Gloves Gloves
■
For New Installations Only:
Tubing cutter Tubing cutter
■
Drill and appropriate bits Drill and appropriate bits
■
Hole saw set Hole saw set
■
